Internet #202316336

Model # 22974057

Store SKU #320366

Store SO SKU #1001003321

0032886845666

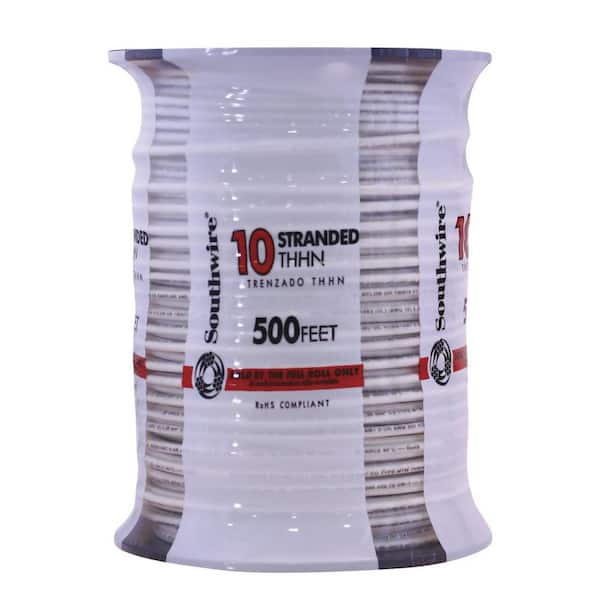

500 ft. 10 White Stranded CU THHN Wire

  • #10 AWG commercial wiring for outlets, switches and other loads
  • 10 Gauge THHN wire contains Copper (CU) Conductors
  • #10 THHN comes stranded/solid with variety of colors and lengths
Covers 500 ft.  (19 ¢  /ft.)
$97.22
Loading Options

Frequently Bought Together

Frequently Bought Together

Product Overview


One Of The Most Versatile Building Wires

Available in multiple ratings, our THHN Copper Wire & Cable is primarily used in conduit, cable trays, feeders, and branch circuits. Learn more.

10-Gauge Stranded Copper THHN Wire and Cable Operation Information


Easy to Install

Whether the location is wet or dry, the heat, moisture, and oil resistant PVC jacketing will help make installations more efficent. Learn more.

Southwire THHN-THWN Wire and Cable Assortment (Solid & Stranded)


THHN in a variety of colors

Available in stranded or solid conductors. Learn more.

Southwire Soft Drawn Bare Copper Grounding Wire and Cable Assortment (Solid & Stranded)


Bare Copper

For residential grounding. Learn more.

Southwire Romex Non-Metallic Building Wire and Cable Assortment


Variety of gauges available

Available in 2 to 14 gauge. Learn more.

Southwire AL SEU Cable, AL SER Cable, AL USE-2 Cable, and AL URD Cable Assortment


AL SER Cable

Available in mulitple lengths. Learn more.

Southwire - Maxis Heavy-Duty Electrical Wire and Cable Pulling Grips Assortment


Secure Your Pull

Quickly secure cable to rope using MAXIS Grips Pulling Heads. Learn more.

Southwire Titan Liquidtight Conduit & Ultratight Liquidtight Conduit Assortment


Non-Metallic Liquidtight

Durable non-metallic PVC conduit for wiring protection. Learn more.

Southwire Straight Type-B Conduit Fittings and 90-Degree Type-B Conduit Fittings Assortment


Liquidtight Fittings

Straight and 90º Non-metallic Liquidtight Fittings in a range of sizes. Learn more.

Southwire - Designers Edge Hard-Wired Outdoor Security Light and Area Light Assortment


Landscape Flood Light

120 watt outdoor dusk to dawn landscape floodlight. Learn more.

Southwire - Woods Photocell Light Controls Assortment (Hardwired & Plug-In)


Photocell Light Control

2,000 watt outdoor in-wall photocell light control. Learn more.

Southwire - Woods In-Wall Timers Assortment


In- Wall Timer

In-wall digital, mechanical, and programmable timers. Learn more.

  • #10 AWG commercial wiring for outlets, switches and other loads
  • 10 Gauge THHN wire contains Copper (CU) Conductors
  • #10 THHN comes stranded/solid with variety of colors and lengths
Southwires THHN and THWN is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwires THHN is rated for 600-Volt and has a heat capacity of up to 90°C.
  • Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings
  • Conductors are annealed (soft) copper, rated at 600-Volt and heat, moisture, gasoline and oil resistant
  • Insulated with tough, heat and moisture-resistant PVC
  • Use in wet or dry locations at temperatures not to exceed 194°F (90°C) or not to exceed 167°F (75°C) when exposed to oil or coolant
  • White color
  • Note: product may vary by store
  • Click to learn the factors you must consider when wiring your home



Product Overview

  • #10 AWG commercial wiring for outlets, switches and other loads
  • 10 Gauge THHN wire contains Copper (CU) Conductors
  • #10 THHN comes stranded/solid with variety of colors and lengths
Model #: 22974057
Sku #: 320366
Internet #: 202316336

Southwires THHN and THWN is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwires THHN is rated for 600-Volt and has a heat capacity of up to 90°C.

  • Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings
  • Conductors are annealed (soft) copper, rated at 600-Volt and heat, moisture, gasoline and oil resistant
  • Insulated with tough, heat and moisture-resistant PVC
  • Use in wet or dry locations at temperatures not to exceed 194°F (90°C) or not to exceed 167°F (75°C) when exposed to oil or coolant
  • White color
  • Note: product may vary by store
  • Click to learn the factors you must consider when wiring your home



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Southwire Southwire Southwire Southwire
Name 500 ft. 10 White Stranded CU THHN Wire 500 ft. 10 Black Stranded CU THHN Wire 500 ft. 10 Green Stranded CU THHN Wire 500 ft. 8 Green Stranded CU SIMpull THHN Wire
Price
$97.22
$97.22
$97.22
$164.78
Ratings (160) (160) (160) (83)
Total Wire Length (ft.) 500 500 500 500
Stranded or Solid Stranded Stranded Stranded Stranded
Max Amps Not Specified Not Specified Not Specified 55
Features Heat Resistant,UV Resistant,Waterproof Heat Resistant,UV Resistant,Waterproof Heat Resistant,UV Resistant,Waterproof Heat Resistant,UV Resistant,Waterproof
Wire Cut Type Pre-Cut Length Pre-Cut Length Pre-Cut Length Pre-Cut Length
Cable/Wire Type THHN THHN THHN THHN
Grounded Non-Grounded Non-Grounded Non-Grounded Non-Grounded
Number of Conductors 1 1 1 1
View Product View Product View Product View Product

Specifications

Dimensions

Product Height (in.)
8.38
Product Width (in.)
6.25
Total Wire Length (ft.)
500

Details

Cable/Wire Type
THHN
Commercial/Residential
Commercial,Residential
Conductor Material
Copper
Electrical Product Type
Single Conductor Electrical Wire
Features
Heat Resistant,UV Resistant,Waterproof
Gauge
10
Grounded
Non-Grounded
Indoor/Outdoor
Indoor,Outdoor
Jacket Color
White
Max Amps
Not Specified
Number of Conductors
1
Returnable
180-Day
Stranded or Solid
Stranded
Wet Location Use
Dry,Wet
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
NA

Specifications

Dimensions

Product Height (in.)
8.38
Product Width (in.)
6.25
Total Wire Length (ft.)
500

Details

Cable/Wire Type
THHN
Commercial/Residential
Commercial,Residential
Conductor Material
Copper
Electrical Product Type
Single Conductor Electrical Wire
Features
Heat Resistant,UV Resistant,Waterproof
Gauge
10
Grounded
Non-Grounded
Indoor/Outdoor
Indoor,Outdoor
Jacket Color
White
Max Amps
Not Specified
Number of Conductors
1
Returnable
180-Day
Stranded or Solid
Stranded
Wet Location Use
Dry,Wet
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
NA

Questions & Answers

Is this the typical 10 gauge wire that runs from the 200 amp electrical box to the home for power...

Is this the typical 10 gauge wire that runs from the 200 amp electrical box to the home for power service? Also, from the pole to the well? The well company said 10 gauge from the pole to the well. Thank you for any insight on if this is right or if there is another product. :)
Asked by: Stattat
Depends, if your going to use conduit yes
Answered by: frustrated
Date published: 2020-05-06

Can this wire be used in cars and trucks?

Can this wire be used in cars and trucks?
Asked by: Jack
Yes. If you are running high amp lights or to the trailer 12 vdc power. Stiff but workable.
Answered by: Dad
Date published: 2019-08-06

will this wire support 5 100w light bulbs 250 ft.

will this wire support 5 100w light bulbs 250 ft.
Asked by: jaybird
Absolutely. As said, voltage drop will be mere 2%. People who answered "Nno", didn't read the question. Keep in mind that this is a SINGLE conductor, so 500ft roll will make a pair of 250ft wires - just what you need.
Answered by: Almot
Date published: 2019-01-22

Is this a single insulated wire?

Asked by: Greg
no it is multi-strand
Answered by: MisterC
Date published: 2019-03-28
