Internet #204724931

Model # 20501399

0032886921322

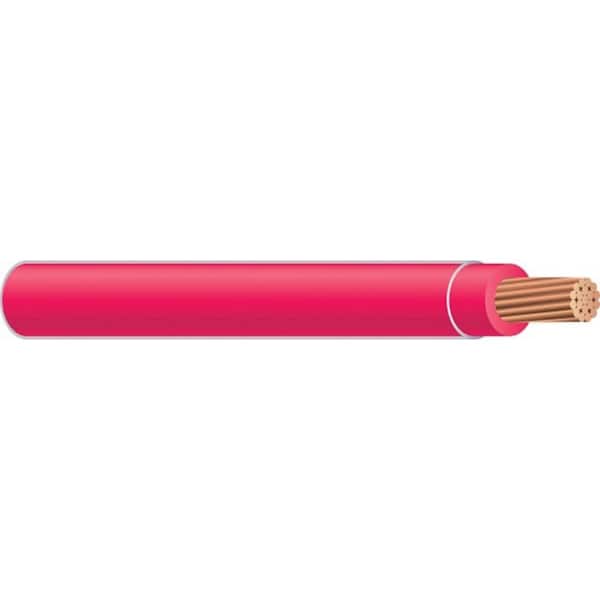

(By-the-Foot) 2 Red Stranded CU SIMpull THHN Wire

  • #2 AWG commercial wiring - Sold by the Foot (continuous)
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • Notice: This item has a min. order qty of 6ft and a max of 60ft
 ($1.91  /ft.)
$1.91 /feet
Loading Options

Frequently Bought Together

Frequently Bought Together

Product Overview

#2 AWG Stranded Copper THHN Wire and Cable Installation Information


One Of The Most Versatile Building Wires

Available in multiple ratings, our THHN Copper Wire & Cable is primarily used in conduit, cable trays, feeders, and branch circuits. Learn more.

2-Gauge Stranded Copper THHN Wire and Cable Operation Information


Easy to Install

Whether the location is wet or dry, the heat, moisture, and oil resistant PVC jacketing will help make installations more efficent. Learn more.

Southwire THHN-THWN Wire and Cable Assortment (Solid & Stranded)


THHN in a variety of colors

Available in stranded or solid conductors. Learn more.

Southwire Soft Drawn Bare Copper Grounding Wire and Cable Assortment (Solid & Stranded)


Bare Copper

For residential grounding. Learn more.

Southwire Romex Non-Metallic Building Wire and Cable Assortment


Variety of gauges available

Available in 2 to 14 gauge. Learn more.

Southwire AL SEU Cable, AL SER Cable, AL USE-2 Cable, and AL URD Cable Assortment


AL SER Cable

Available in mulitple lengths. Learn more.

Southwire - Maxis Heavy-Duty Electrical Wire and Cable Pulling Grips Assortment


Secure Your Pull

Quickly secure cable to rope using MAXIS Grips Pulling Heads. Learn more.

Southwire Titan Liquidtight Conduit & Ultratight Liquidtight Conduit Assortment


Non-Metallic Liquidtight

Durable non-metallic PVC conduit for wiring protection. Learn more.

Southwire Straight Type-B Conduit Fittings and 90-Degree Type-B Conduit Fittings Assortment


Liquidtight Fittings

Straight and 90º Non-metallic Liquidtight Fittings in a range of sizes. Learn more.

Southwire - Maxis Electrical Tool Cart and Storage Cart Assortment


Mobile Tool Cart

Move your plans and materials right to the work area of your jobsite. Learn more.

Southwire - Woods Photocell Light Controls Assortment (Hardwired & Plug-In)


Photocell Light Control

2,000 watt outdoor in-wall photocell light control. Learn more.

Southwire - Woods In-Wall Timers Assortment


In- Wall Timer

In-wall digital, mechanical, and programmable timers. Learn more.

  • #2 AWG commercial wiring - Sold by the Foot (continuous)
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • Notice: This item has a min. order qty of 6ft and a max of 60ft
Southwire type THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the NEC 2. When used as type THHN or T90 Nylon conductor is suitable for use in dry locations at temperatures not to exceed 90˚C. Conductor is suitable for use in wet or dry locations at temperatures not to exceed 90˚C or not to exceed 75˚C when exposed to oil or coolant.
  • THHN copper conductors are annealed (soft) copper rated at 600-Volt and heat, moisture, gasoline and oil resistant, UL listed
  • THHN cable is insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
  • THHN is available in a variety of colors, lengths and gauges also available in solid and stranded copper
  • THHN cable is suitable for use in wet or dry locations at temperatures not to exceed 90˚C
  • Click to learn the factors you must consider when wiring your home

Product Overview

  • #2 AWG commercial wiring - Sold by the Foot (continuous)
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • Notice: This item has a min. order qty of 6ft and a max of 60ft
Model #: 20501399
Internet #: 204724931

Southwire type THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the NEC 2. When used as type THHN or T90 Nylon conductor is suitable for use in dry locations at temperatures not to exceed 90˚C. Conductor is suitable for use in wet or dry locations at temperatures not to exceed 90˚C or not to exceed 75˚C when exposed to oil or coolant.

  • THHN copper conductors are annealed (soft) copper rated at 600-Volt and heat, moisture, gasoline and oil resistant, UL listed
  • THHN cable is insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
  • THHN is available in a variety of colors, lengths and gauges also available in solid and stranded copper
  • THHN cable is suitable for use in wet or dry locations at temperatures not to exceed 90˚C
  • Click to learn the factors you must consider when wiring your home

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Southwire Southwire Southwire Southwire
Name (By-the-Foot) 4 Red Stranded CU SIMpull THHN Wire (By-the-Foot) 2 Red Stranded CU SIMpull THHN Wire (By-the-Foot) 2/0 Black Stranded CU SIMpull THHN Wire (By-the-Foot) 3/0 Black Stranded CU SIMpull THHN Wire
Price
$1.18 /feet
$1.91 /feet
$2.76 /feet
$3.31 /feet
Ratings (31) (21) (12) (16)
Total Wire Length (ft.) 1 1 1 1
Stranded or Solid Stranded Stranded Stranded Stranded
Max Amps 95 Not Specified Not Specified 225
Features Heat Resistant,UV Resistant,Waterproof Heat Resistant,UV Resistant,Waterproof Heat Resistant,UV Resistant,Waterproof Heat Resistant,UV Resistant,Waterproof
Wire Cut Type Cut By-The-Foot Cut By-The-Foot Cut By-The-Foot Cut By-The-Foot
Cable/Wire Type THHN THHN THHN THHN
Grounded Non-Grounded Non-Grounded Non-Grounded Non-Grounded
Number of Conductors 1 1 1 1
View Product View Product View Product View Product

Specifications

Dimensions

Product Height (in.)
0.1
Product Width (in.)
12
Total Wire Length (ft.)
1

Details

Cable/Wire Type
THHN
Commercial/Residential
Commercial,Residential
Conductor Material
Copper
Electrical Product Type
Single Conductor Electrical Wire
Features
Heat Resistant,UV Resistant,Waterproof
Gauge
2
Grounded
Non-Grounded
Indoor/Outdoor
Indoor,Outdoor
Jacket Color
Red
Max Amps
Not Specified
Number of Conductors
1
Returnable
180-Day
Stranded or Solid
Stranded
Wet Location Use
Dry,Wet
Wire Cut Type
Cut By-The-Foot

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
NA

Specifications

Dimensions

Product Height (in.)
0.1
Product Width (in.)
12
Total Wire Length (ft.)
1

Details

Cable/Wire Type
THHN
Commercial/Residential
Commercial,Residential
Conductor Material
Copper
Electrical Product Type
Single Conductor Electrical Wire
Features
Heat Resistant,UV Resistant,Waterproof
Gauge
2
Grounded
Non-Grounded
Indoor/Outdoor
Indoor,Outdoor
Jacket Color
Red
Max Amps
Not Specified
Number of Conductors
1
Returnable
180-Day
Stranded or Solid
Stranded
Wet Location Use
Dry,Wet
Wire Cut Type
Cut By-The-Foot

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
NA

Questions & Answers

How much does this full spool weigh?

Asked by: DS
Heavy maybe 120lbs tough to load alone for myself.
Answered by: Valence
Date published: 2018-05-15

Description says THHN, but specs say it is suited for wet locations, which THHN isn't. Is it dual...

Description says THHN, but specs say it is suited for wet locations, which THHN isn't. Is it dual rated and if so what is the second rating?
Asked by: JohnD
Not to confuse anyone but I found this on the Southwire web site and this cable appears to be rated as THWN and THWN-2 as well: 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. All Sizes Rated Both THHN and either THWN (sizes 14, 12, and 10 AWG) or THWN-2 (sizes 8 AWG and larger). Also Rated MTW and AWM (See Below). SIMpull® Technology for Easier Pulling. Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant. These conductors have multiple ratings. Depending upon the product application, allowable temperatures are as follows: • THHN or T90 Nylon- Dry locations not to exceed 90° C • THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil • THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil https://www.mysouthwire.com/medias/sys_master/product-specifications/product-specifications/h08/h62/8854083633182.pdf note : THHN wire is allowed for use in dry and damp locations only. ... It's important to note that now many wires in the market are dual rated both THHN and THWN, which means the wire can be used in dry, damp, or wet locations. THHN wire is rated for high heat: it can be found with insulation rating as high as 90°C or 194°F.
Answered by: mc
Date published: 2020-07-28

can this be used as welding lead for a welder?

Asked by: PRM421
I suppose that it could be, however due to size of the individual strands of copper in the cable it is not very flexible. Cable made specifically for welding is made from many more smaller strands.
Answered by: Procyon
Date published: 2018-05-05

Is this the same as 2/0 copper wire?

Is this the same as 2/0 copper wire?
Asked by: wiseman
No, 2/0 is the 'same' as 00 wire. This is #2AWG. 2/0 is much larger (in diameter) than #2 and therefore is used for much larger applications requiring much higher load (ampacity) rating. Please note that working with loads requiring either wire size is extremely dangerous (lethal). Examples per use, #2AWG could be used to wire a smaller sub-panel whereas 2/0 wire could be used in a main service panel. You can look up the ampacity rating for the wires online to determine which size wire is appropriate for the application.
Answered by: JohnJ
Date published: 2019-05-09
