Internet #309169571

Model # CR600

0692284001226

Machine Control Laser Level Receiver with Magnetic Mount

  • 2 AA alkaline batteries
  • Any general construction jobsite applications
  • Works with red and green beam lasers
$ 326 32

Frequently Bought Together

Frequently Bought Together

Product Overview

  • 2 AA alkaline batteries
  • Any general construction jobsite applications
  • Works with red and green beam lasers

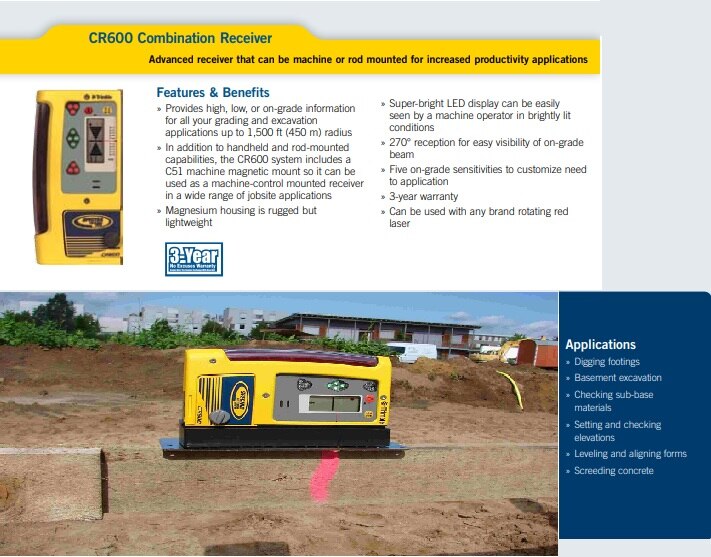

Designed for general construction and laser based display systems, the Spectra CR600 Machine Control Laser Level Receiver is an easy-to-use laser receiver for accurate measurement of elevations. This laser detector features dual mount function (either rod or machine mounted) for a wide range of applications. Also, it includes both a rod clamp and a magnetic mount for construction use. Plus, the CR600 comes with a 270° reception angle which provides less dead spots and improved productivity for machine control applications. With its 15 display channels, this machine control laser receiver's high and low indicators allow the offset to the on-grade position to be directly measured. Also, it has 5 selectable detection accuracies for grading. It operates with red visible and infrared lasers with a wavelength between 610 and 900 nanometers. In addition, It includes an audio indication that aids in grading. The Spectra CR600 includes a single LCD front display that shows instrument status and reading. It uses powerful batteries that can run up to 100-hours. Also, it comes with an auto shut-off function that allows the receiver to turn off 30-minutes after the last laser detection or push button actuation. With a heavy-duty die-cast magnesium housing, the CR600 is durable and can withstand a 10 ft. drop on concrete. In addition, it is dustproof and water resistant with its IP66 environmental rating.
  • 270° reception angle
  • Dual mount option (clamp or magnet)
  • 15 arrow display channels
  • 5 detection accuracies
  • Super bright LED indicators
  • Spectral sensitivity
  • Audio indication
  • Single LCD front display
  • Up to 100-hour battery life
  • Auto shut off
  • Dustproof and water resistant, IP66
  • Heavy-duty die-cast magnesium housing
  • Can withstand a 10 ft. drop on concrete
  • 2-year warranty

Product Overview

  • 2 AA alkaline batteries
  • Any general construction jobsite applications
  • Works with red and green beam lasers
Model #: CR600
Internet #: 309169571

Designed for general construction and laser based display systems, the Spectra CR600 Machine Control Laser Level Receiver is an easy-to-use laser receiver for accurate measurement of elevations. This laser detector features dual mount function (either rod or machine mounted) for a wide range of applications. Also, it includes both a rod clamp and a magnetic mount for construction use. Plus, the CR600 comes with a 270° reception angle which provides less dead spots and improved productivity for machine control applications. With its 15 display channels, this machine control laser receiver's high and low indicators allow the offset to the on-grade position to be directly measured. Also, it has 5 selectable detection accuracies for grading. It operates with red visible and infrared lasers with a wavelength between 610 and 900 nanometers. In addition, It includes an audio indication that aids in grading. The Spectra CR600 includes a single LCD front display that shows instrument status and reading. It uses powerful batteries that can run up to 100-hours. Also, it comes with an auto shut-off function that allows the receiver to turn off 30-minutes after the last laser detection or push button actuation. With a heavy-duty die-cast magnesium housing, the CR600 is durable and can withstand a 10 ft. drop on concrete. In addition, it is dustproof and water resistant with its IP66 environmental rating.

  • 270° reception angle
  • Dual mount option (clamp or magnet)
  • 15 arrow display channels
  • 5 detection accuracies
  • Super bright LED indicators
  • Spectral sensitivity
  • Audio indication
  • Single LCD front display
  • Up to 100-hour battery life
  • Auto shut off
  • Dustproof and water resistant, IP66
  • Heavy-duty die-cast magnesium housing
  • Can withstand a 10 ft. drop on concrete
  • 2-year warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Details

Condition
New
Hand Tool Type
Hand Tool Accessory
Level Accessory Type
Laser Receiver
Returnable
180-Day
Tools Product Type
Hand Tool

Warranty / Certifications

Manufacturer Warranty
2-year manufacturer's warranty

Specifications

Details

Condition
New
Hand Tool Type
Hand Tool Accessory
Level Accessory Type
Laser Receiver
Returnable
180-Day
Tools Product Type
Hand Tool

Warranty / Certifications

Manufacturer Warranty
2-year manufacturer's warranty
