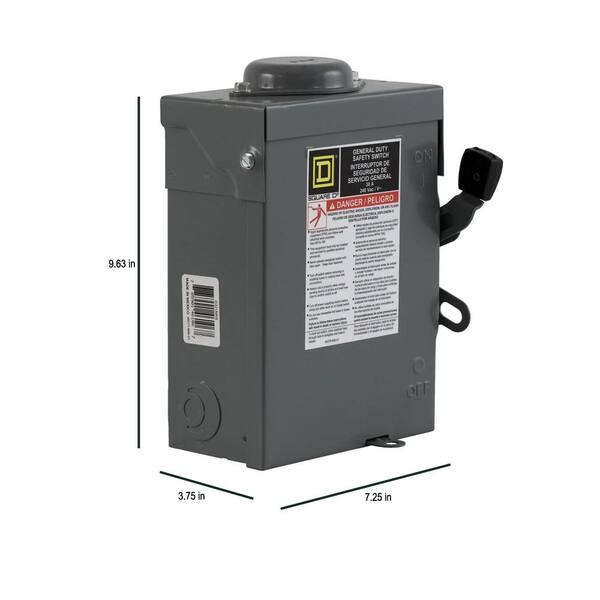

30 Amp 240-Volt 3-Pole 3-Phase Fused Outdoor General Duty Safety Switch
$23698
Pay $211.98 after $25 OFF your total qualifying purchase upon opening a new card.
Apply for a Home Depot Consumer Card- Square D safety switch for residential & commercial environments
- Designed for reliability, safety and easy installation
- Neutral Bar included, NEMA 3R enclosure, UL listed
- View More Details
Product Details
Specifications
Questions & Answers
2Questions
Q:show me inside of this
by|Jul 20, 2020
1 Answer
Q:How do I purchase this product? You say it's not in my local store (Lodi, CA) and none around for...
by|Apr 17, 2020
1 Answer
Showing 1-2 of 2
Oct 14, 2019
I've always tried to use Square D brand electrical components. Their parts, breakers and fuses ar...
I've always tried to use Square D brand electrical components. Their parts, breakers and fuses are typically stocked by any electrical supply and Big Box Hardware stores.
I secured this safety switch for a new shop that is in the construction phase. It will provide me with the capabilities of a 4-wire design with 3 blades and fuse holders and 1 neutral switch. Operation at 120/240-Volt AC up to 200 Amp. And the NEMA type 3R metallic enclosure for outdoor use will allow installation on the exterior of the shop for emergency disconnecting means and servicing.
by
Oct 11, 2019
I have never seen a Square D product that was less than a five star item and this is not exceptio...
I have never seen a Square D product that was less than a five star item and this is not exception. Now I can add Square D customer service. The components were perfect shape but the cabinet lever bracket and door were slightly bent up. The switch functioned normally. I notified the vendor Schneider Electric for their information and their reply was an immediate replacement of the switch. That is customer service at it's best.
by
Oct 2, 2019
Another premiere product from Square D. In my experience, one cannot surpass the offerings of Squ...
Another premiere product from Square D. In my experience, one cannot surpass the offerings of Square D. Preferentially, I have used Square D products to the fullest extent of their availability since they acquired Rodale Electric. Very fortunately, 28 years of production under the flag of Schneider Electric has not diminished that quality. The enclosure is rated 3R so it is rain tight with the drip edge seen on Photo 1. The switch enclosure is complemented by all the sheet metal punches required for mounting, attaching buss bars, a variety of knockouts and a rain tight hub. See Photo 2. With the switch thrown, both the rapid-acting spring mechanism and the physical quench shield suppress any potential arcing. See Photo 3. Connecting cables and conduits is conveniently done in a workmanlike manner because an ample number of variously sized knockouts route both feeder and branch circuits through every surface of the enclosure. See Photo 4. The switch accommodates types H (non-current limiting), K (fast) or R ("rejection" / time delay) blade-end fuse cartridges. I'm using FRN-R-200 in my application. Because of its substantial construction and good finish, I've never had a problem with creep about fuse holders or lugs on a Square D switch or panel-board.
by
Sep 30, 2019
Square D D324NRB 200 Amp 120 / 240 Volt 3 Pole 3 Phase 4 Wire Fusible Rainproof Type 3R Enclosure...
Square D D324NRB 200 Amp 120 / 240 Volt 3 Pole 3 Phase 4 Wire Fusible Rainproof Type 3R Enclosure General Duty Safety / Disconnect Switch – This safety switch has been designed for indoor / outdoor residential and commercial applications, this safety switch meets or exceeds all applicable NEMA standards…The safety switch is well designed as well as manufactured to quality standards including numerous beneficial features, rated 15.0 horsepower at 240 volt single phase, rated 25.0 horsepower standard 60.0 horsepower maximum at 240 volt 3 phase, terminal lugs #6 to 250 MCM aluminum / copper conductors, 100 kA (Kilovolt) UL listed short circuit rating, cartridge fuse class H, K or R, includes neutral bar, lockable door, tangential knockouts provide easy conduit installation and covered by an (18) month warranty…I have installed hundreds of these safety switches, Square D safety switches have always performed as indicated, intended and expected without any problems, customer support has always been a priority with Square D...
by
Sep 26, 2019
Square D 200 Amp 240-Volt 3-Pole 3-Phase Fused Outdoor General Duty Safety Switch. This is a Squa...
Square D 200 Amp 240-Volt 3-Pole 3-Phase Fused Outdoor General Duty Safety Switch. This is a Square D or Schneider Electric 200 amp indoor / outdoor heavy-duty safety disconnect. This is not a normal residential disconnect but a heavy-duty commercial type a must have for three phase power.
This will handle almost all three phase motors up to 60 HP or 240-volt single phase applications up to 15 HP.
This heavy duty fusible disconnect that holds several types of fuses from H,K or even R fuses. Fuses are not included but available at your local Home Depot store or at Home Depot.com. Made to exceed all safety specs and has an OSHA protected lockout. If you are not a licensed professional electrician, you should not even attempt to install this disconnect.
Schneider Electric has been in business over 180 years and is truly a company you can depend upon for the very best in electrical equipment and innovation.
by
Compare Similar Safety Switches
 |  | Top Rated |  | |
| Brand | Square D | Siemens | Eaton | Eaton |

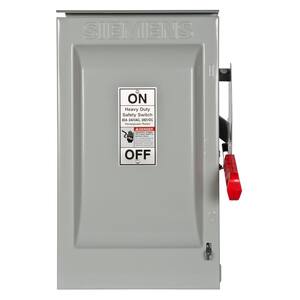

| Name | 30 Amp 240-Volt 3-Pole 3-Phase Fused Outdoor General Duty Safety Switch | Heavy Duty 60 Amp 240-Volt 2-Pole Outdoor Fusible Safety Switch with Neutral | 100 Amp 120/240-Volt 24,000-Watt Non-Fused General-Duty Double-Throw Safety Switch | 30 Amp 3 Pole Fusible NEMA 3R General Duty Safety Switch |
| Price | $23698 | $28320 | $31098 | $36619 |
| Ratings | (5) | (0) | (62) | (1) |
| Maximum Amperage (amps) | 30 | 60 | 100 | 30 |
| Power Distribution Features | Weather Resistant | Fusible | No Additional Features | Fusible |
| Voltage (volts) | 240 | 240 | 120/240 | 600 |
| Automatic/Manual | Manual | Manual | Manual | Manual |
| Fused | Fused | Fused | Non-Fused | Fused |
| Electrical Product Type | Safety Switch | Safety Switch | Safety Switch | Safety Switch |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection | Mountable,On/Off Switch | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Maximum Wattage | 7200 | 0 | 24000 W | 18000 W |
| Product Weight (lb.) | 5.31 | 17.10 lb | 11.1 | 11.1 |
| THD SO SKU | 516939 | |||
| View Product | View Product | View Product | View Product |
