Compatible with Square D Homeline Standard circuit breakers
Flush mount cover (without door) and aluminum bus bar included
Product Details

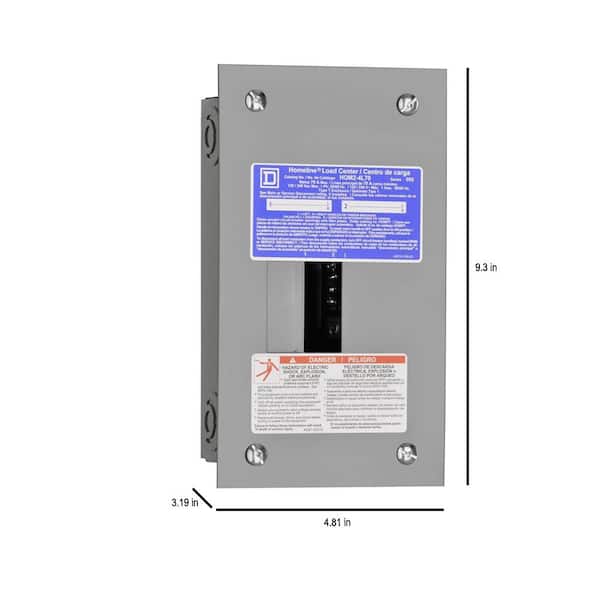

The Square D Homeline 70 Amp 2-Space 4-Circuit Indoor Surface Mount Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
Includes a surface-mount cover and is for use as a main lug load center in fixed applications
You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
Specifications
Questions & Answers
32Questions
Q:What?s the largest knock out hole size?
by|Jan 16, 2023
1 Answer
Answer This Question
A:Â Hi,
The biggest knockout is 1.5", below the drawing:
https://download.schneider-electric.com/files?p_enDocType=Technical+Drawing&p_File_Name=1841.pdf&p_Doc_Ref=1841_Technical-drawings
Regards, Schneider Electric Customer Care
by|Jan 18, 2023
Q:Do you have any economical little Homeline sub panels like this that have a cover plate; (door)?
by|Dec 2, 2022
1 Answer
Answer This Question
A:Â Hi,
The smallest version can be HOM24L70F-Flush or HOM24L70S-Surface:
Regards, Schneider Electric Customer Care
by|Dec 5, 2022
Q:Should the ground in the main panel be connected to the ground buss that i added to this panel or just a ground rod for this panel only?
by|Sep 7, 2022
5 Answers
Answer This Question
A: My licensed electrician didn’t add a ground rod for the satellite panel at my workshop in Tennessee. I would suggest that you consult your electric code to be sure you comply with local regulations.Â
by|Sep 7, 2022
A:Â The Ground buss for a sub-panel should be connected to the ground from the main panel, not separately grounded.
by|Oct 25, 2022
A:Â Used as a subpanel: you will need to add a ground bar bonded to the metal frame of panel. Grounding conductor from circuit feeding subpanel will terminate at ground bar. If this is a subpanel for a detached structure tho, you will need an added ground rod
by|Dec 1, 2022
A:Â In the most likely case that you are installing this as a sub-panel the ground for all the breaker circuits are connected to the ground terminal strip you'll be mounting to the back of the case. that in turn will connect to common ground line running to the Main Panel. Hope this helps, good luck.
by|Sep 12, 2022
A:Â The panel can be installed as service entrance or sub panel, but is recommended refer to the local inspector for the installation of a second ground rod.
Regards, Schneider Electric Customer Care
by|Sep 13, 2022
Q:does this have the circuit breaker mounting base inside?
by|Jun 17, 2022
1 Answer
Answer This Question
A:Â Hello Kevin,
Yes, this HOM612L100FCP comes with the interior to mount the breakers inside, 6 spaces 12 circuits.
Regards, Schneider Electric Customer Care
by|Dec 9, 2022
Showing 1-4 of 32
Customer Reviews
4.6 out of 5
(141)
4.6
out of 141 reviews
97%recommend this product
597
434
36
21
13
Filter by:
Showing 1-10 of 141 reviews
Jul 30, 2020
I purchased this because the Home Depot Electrical Sales Associate said that my challenger breake...
I purchased this because the Home Depot Electrical Sales Associate said that my challenger breakers were supposed to fit right in...and for some reason I have not been able to get one to go in all the way - although they are in far enough to work. Otherwise the box is perfectly fine. These same breakers worked fine in my old Challenger box. Perhaps it's just me...will play around with it a bit more and if I can make it happen will update this.
by
Response from SchneiderProductExpertAug 25, 2020
Hello, The Square D QO and Homeline load centers are UL tested, Listed, and labeled, to accept ONLY Square D circuit breakers. QO and Homeline load centers are also designed and tested by Square D to performance levels which exceed Underwriters Laboratories Standards. Use of Other manufacturers breakers, other than Square D Circuit Breakers, May Adversely Affect User Safety and Impair Reliability. Square D disclaims all liability for damage, injury or non-performance caused by the use or failure of non-Square D circuit breakers. Warm regards, Schneider Electric Customer Care
Verified Purchase
2 found this review helpful
May 21, 2019
Used this in my garage. Good value.
Used this in my garage. Good value.
by
Verified Purchase
Recommended
1 found this review helpful
Apr 2, 2019
This is about as basic as they come as far as breaker boxes go. I would not use it as a main pan...
This is about as basic as they come as far as breaker boxes go. I would not use it as a main panel since there are only six slots.
However, it was perfect for the garage I built. Normally i would opt for a panel with a door, but since it is in a garage this was acceptable. I ran four 110v 20 amp circuits, and one 220v 30 amp circuit for a compressor.
This makes a great sub panel if it is in an inconspicuous location.
by
Recommended
1 found this review helpful
Nov 16, 2015
A mix of good and bad... Installed as a subpanel Nov 2015
Square D Homeline panel review:
Great panel / system but there are some issues to address; is this a punishment for choosing the "Home-lIne" at a big box store vs electrical supply store? I needed to replace a 4 breaker GE Slim-line TQL with one that had more slots and the ability to run a two-pole breaker for a 220v feed to an additional sub-panel.
WHY: I prefer Cuttler-Eaton (C-E) and own two: a main panel and two sub panels. I like to have the same brand panel and breakers. By code, even when a panel accepts different brand breakers the brand is supposed to be the same for both. In this case Home Depot did not sell a panel that fit the narrow dimension in the C-E brand so this was the only choice offering flush mount and indoor use. I also didn't need a door and limited room for a door to open.
NOTE: If used as a sub-panel you will need the optional ground bus bar kit PK7GTA. Its offered in small, medium and large at Home depot for $4 to $7. There are 4 mounting points in the corners of the panel.
GOOD:
Excellent quality box, fit and finish, paint, etc.
Knockouts - I used my Estwing starter nail pry bar and hammer to knock them out. It took two really hard hits then wiggle with a pliers. All snapped off clean, same with the breaker slots.
Breaker fit - breakers are extremely secure once mounted. Much, much tighter then the GE slim-line and about 30% tighter than the standard Cuttler Eaton panels that I normally use.
Price / Value - Installed a Quad breaker which was 30A two-pole in the center and two 20A narrow Tandem style breakers on each edge for a total of 3 circuits. This cost ~ $19.48 + tx which was cheaper than purchasing a separate 30A two pole, and two 20A single pole breakers AND saved space taking up 2 slots vs 4 and looks cool.
BAD (but not a deal breaker)
1. Quad Breaker - uses #2Square Drive for the two 20A breakers but uses the dated Slotted screws in the center - huh? Why not use the universal #2 SQ drive? Why return the ancient mostly no longer used slotted screws?
2. Quad Breaker - Had to push harder than any breaker I have ever installed in any brand of panel including a modern double pole, two "slot" 60A Zinco (type UZI) breaker. I had to push so hard I though I was going to either break the panel or push it through the wall. I was afraid of breaking or weakening the plastic rail on the bottom that the breaker sits in and pivots on. I removed and reseated the breaker a few times to make sure I had it seated properly. It went in a little more smoothly the second and third time. Also, breakers were newly purchased in the "tripped" position and were had contact grease on them.
Inserting the wires is often difficult to see visually when the breaker is installed however twice when I inserted the 10 gauge wire in the center 30A breaker and tighten the slotted screw it fell out. I looked carefully with a flashlight and saw the that wire was not under the screw and slipped behind the screw into a tiny space so that the wire went inside? the breaker. I can't remember having that problem with other breakers.
3. Single pole 15/20A Breakers - odd design that appears to accept two wires in a curved guide - one on each side of the screw. The wire needs to be inserted right or left of center. I prefer the standard way that Cuttler-Eaton, Murry, and most breakers use and I don't really see much benefit in this and it doesn't feel as durable. Again, not a deal breaker.
4. Instructions - Subpanel - Ground bus bar kit. I didn't find any reference to this in the instructions and only found the ground buss bar kit mentioned on the outside of the box. Because this is a very small panel the chances are quite high that the installer will be using it as a subpanel. The instructions should cover this basic common alternative setup vs a main panel aka "Main Lug" that this and most other brands ship as. Although, I am aware of this I don't install panels very often so I needed a reminder.
by
Response from THD-CSNov 20, 2015
Dear Valued Home Depot Customer, We have reached out to the manufacturer and their response is, "Thank you for your detailed review. We appreciate your comments and they
will be taken into consideration. Please feel free to call our Technical
Support line at 1-888-778-2733 (1-888-SquareD), option 1, for product
specific discussion and assistance. Thanks again and Best Regards,
Schneider Electric Customer Care.
DIY
Recommended
12 found this review helpful
Jan 25, 2023
Used this panel to replace an ancient, now unsafe sub-panel....
Used this panel to replace an ancient, now unsafe sub-panel. Went smoothly. Given the number of circuits I would have liked a bit more space inside the panel for routing, but in the end things are safe and tidy.
by
Verified Purchase
Jan 21, 2023
The knockouts were extremely hard to get right cause you...
The knockouts were extremely hard to get right cause you hit the center out and the whole piece comes out. But for the price I will buy it again.
by
Verified Purchase
Jan 19, 2023
by
Verified Purchase
Dec 28, 2022
Great product at a fair price! Thanks....
Great product at a fair price! Thanks.
by
Verified Purchase
Nov 29, 2022
Sub Panel
Needed a sub panel. This was the answer. It’s a great product.
