Internet #204844631

Model # QO142L225PGC

Store SKU #1000039729

0785901981169

QO 225 Amp 42-Space 42-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar

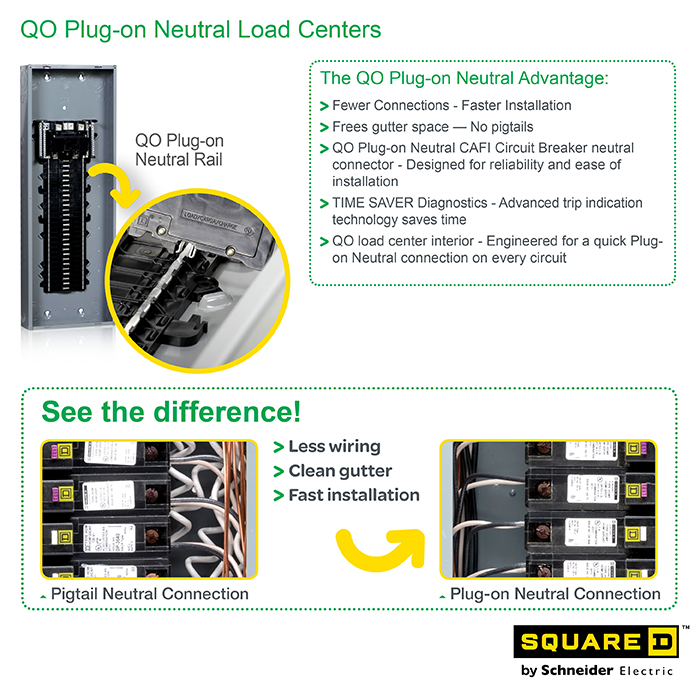

  • Less wiring, clean gutter, fast installation with Plug-On Neutral
  • Compatible with any QO circuit breaker (except CTL Tandems)
  • Includes cover, ground bar and shielded copper bus bar
$ 166 00
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Less wiring, clean gutter, fast installation with Plug-On Neutral
  • Compatible with any QO circuit breaker (except CTL Tandems)
  • Includes cover, ground bar and shielded copper bus bar
The Square D QO 225 Amp Main Lugs Only 42-Space 42-Circuit Convertible Indoor Plug-on Neutral Load Center for Plug-on Neutral breakers is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
  • Engineered for a quick plug-on neutral breaker connection on every circuit, fewer connections, faster installation and no pigtails frees up gutter space
  • Includes a factory-installed indoor cover, (2) PK15GTA ground bars and is convertible to a main breaker load center with the installation of QOM2 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • Equipment ground bar is included with 3 mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.



  • California residents see Prop 65 WARNINGS

Product Overview

  • Less wiring, clean gutter, fast installation with Plug-On Neutral
  • Compatible with any QO circuit breaker (except CTL Tandems)
  • Includes cover, ground bar and shielded copper bus bar
Model #: QO142L225PGC
Sku #: 1000039729
Internet #: 204844631

The Square D QO 225 Amp Main Lugs Only 42-Space 42-Circuit Convertible Indoor Plug-on Neutral Load Center for Plug-on Neutral breakers is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.

  • Engineered for a quick plug-on neutral breaker connection on every circuit, fewer connections, faster installation and no pigtails frees up gutter space
  • Includes a factory-installed indoor cover, (2) PK15GTA ground bars and is convertible to a main breaker load center with the installation of QOM2 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • Equipment ground bar is included with 3 mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.



  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Less wiring, clean gutter, fast installation with Plug-On Neutral
  • Compatible with any QO circuit breaker (except CTL Tandems)
  • Includes cover, ground bar and shielded copper bus bar
The Square D QO 225 Amp Main Lugs Only 42-Space 42-Circuit Convertible Indoor Plug-on Neutral Load Center for Plug-on Neutral breakers is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
  • Engineered for a quick plug-on neutral breaker connection on every circuit, fewer connections, faster installation and no pigtails frees up gutter space
  • Includes a factory-installed indoor cover, (2) PK15GTA ground bars and is convertible to a main breaker load center with the installation of QOM2 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • Equipment ground bar is included with 3 mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.



  • California residents see Prop 65 WARNINGS

Product Overview

  • Less wiring, clean gutter, fast installation with Plug-On Neutral
  • Compatible with any QO circuit breaker (except CTL Tandems)
  • Includes cover, ground bar and shielded copper bus bar
Model #: QO142L225PGC
Sku #: 1000039729
Internet #: 204844631

The Square D QO 225 Amp Main Lugs Only 42-Space 42-Circuit Convertible Indoor Plug-on Neutral Load Center for Plug-on Neutral breakers is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.

  • Engineered for a quick plug-on neutral breaker connection on every circuit, fewer connections, faster installation and no pigtails frees up gutter space
  • Includes a factory-installed indoor cover, (2) PK15GTA ground bars and is convertible to a main breaker load center with the installation of QOM2 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • Equipment ground bar is included with 3 mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.



  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Square D Square D Siemens Square D
Name Homeline 225 Amp 40-Space 80-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover QO 225 Amp 42-Space 42-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar PL Series 225 Amp 54-Space 70-Circuit Main Lug Indoor Load Center QO 225 Amp 42-Space 42-Circuit Indoor Main Lug Plug-On Neutral Load Center with Ground Bar
Price
$123.19
$166.00
$362.27
Ratings (47) (45) (0) (12)
Indoor/Outdoor Indoor Indoor Indoor Indoor
Number of Phases 1 1 1 1
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 225 225 225 225
Number of Spaces 40 42 54 42
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
3.75
Load center height (in.)
37.98
Load center width (in.)
14.25

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
225
Mounting type
Plug In
Number of Phases
1
Number of Spaces
42
Product Weight (lb.)
34.5lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Specifications

Dimensions

Load center depth (in.)
3.75
Load center height (in.)
37.98
Load center width (in.)
14.25

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
225
Mounting type
Plug In
Number of Phases
1
Number of Spaces
42
Product Weight (lb.)
34.5lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Questions & Answers

Feeding with 100 amp to main lugs.. Can the 60 amp two pole be changed to 100 amp

Asked by: BERDY
Main buss bars are good for 125 amps, so proper 100 amp plug on breaker should work fine if all wire sizes are right. Only problem might be bending wire to fit into breaker.
Answered by: Sugarmann
Date published: 2019-09-14

May this panel be legally mounted upside down, and fed from the bottom?

May this panel be legally mounted upside down, and fed from the bottom?
Asked by: mPharoah
Yes
Answered by: Erc
Date published: 2019-08-14

Can the box be mounted with either end up

Asked by: Jerry
Yes
Answered by: Jerry
Date published: 2019-09-11

Can you install box with main lugs down if not installing a breaker. More or less can either end ...

Can you install box with main lugs down if not installing a breaker. More or less can either end be up or down
Asked by: Jerry
Yes, it is designed for either end up or down.
Answered by: jw
Date published: 2019-04-04
