- Protection from overload, short-circuit, and Class A Ground Fault
- Protects from potential shock hazards in wet locations
- Compatible with Square D QO electrical panels, CSED with 2 spaces
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
This QO 50 Amp 2-Pole GFCI Breaker is great for covering multiple circuits in a damp area which could pose an electrical shock hazard, such as a bathroom or kitchen countertop. A thermal-magnetic Tripping system detects both surges and long-term overloads. This breaker is compatible with QO load centers and NQOD panel boards.
Highlights
- Learn about general NEC 2020 updates, contact your local building inspector for code adoptions and details
- Use for protection of entire branch circuits where damp location shock hazards may exist
- Double-pole with a common trip
- NEC 2020/2023/2026 compliant
- Visi-trip indicator
- 120-Volt/240-Volt AC
- 10,000 AIR
- Compatible with QO load centers, QO enclosures, CSED devices and NQOD panel boards
- ANSI certified and UL listed
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications

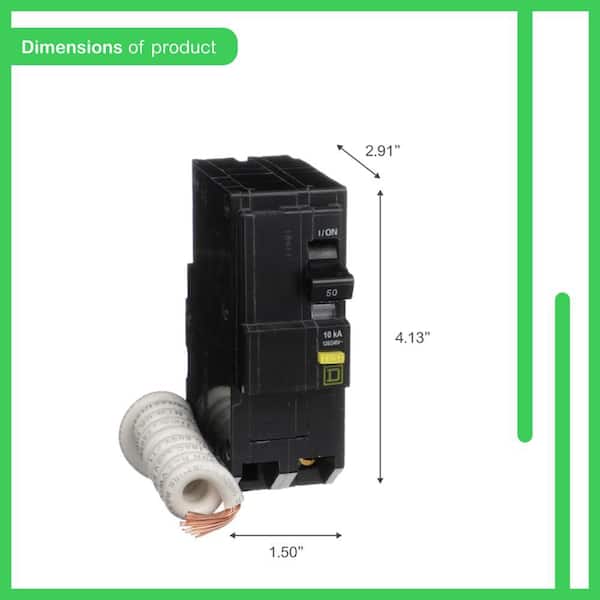

Dimensions
Product Depth (in.) | 2.9 in |
|---|---|
Product Width (in.) | 1.5 in |
Details
AIC Rating | 10000 |
|---|---|
Breaker Type | Standard |
Connection Type | Pigtail |
Interruption Type | GFCI |
Maximum Amperage (A) | 50 A |
Mounting Type | Plug-On |
Number of Poles | Double |
Number of Spaces | 2 |
Pack Size | 1 |
Power Distribution Features | Trip Indicator |
Returnable | 90-Day |
Series Type | QO |
Trip Unit | Electronic |
Voltage (V) | 120/240 V |
Warranty / Certifications
Certifications and Listings | UL Listed |
|---|---|
Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed. |
Questions & Answers
Are the terminals on this breaker rated for 4 AWG Aluminum wire?
Hi Yes. The breaker can accept 12 - 4 AWG Aluminum wire. Warm Regards, Schneider Electric Customer Care.
If I have a new Square D panel with plug-on neutral rail, do I have to attach the pigtail of this breaker to the neutral bar? Does it not connect to neutral via the breaker clamping onto the metal rail?
Hello ELad. QO250GFIC is not a plug-on neutral QO-GFI breaker. Hence, the pigtail neutral should be terminated in the neutral bar of the QO loadcenter. Warm regards. Schneider Electric Customer Care
Is this breaker compatible with a Cuttler Hammer MBE12248100BTS / BTF
Hello Derek. QO225GFIC is not compatible with Cuttler Hammer panel. Our QO breakers are only compatible with QO loadcenters. The QO breakers are only UL tested and approved for use in QO, NQO, NQOD, and NQ panelboards. Warm regards. Schneider Electric Customer Care
Viewing 1-3 of 3
