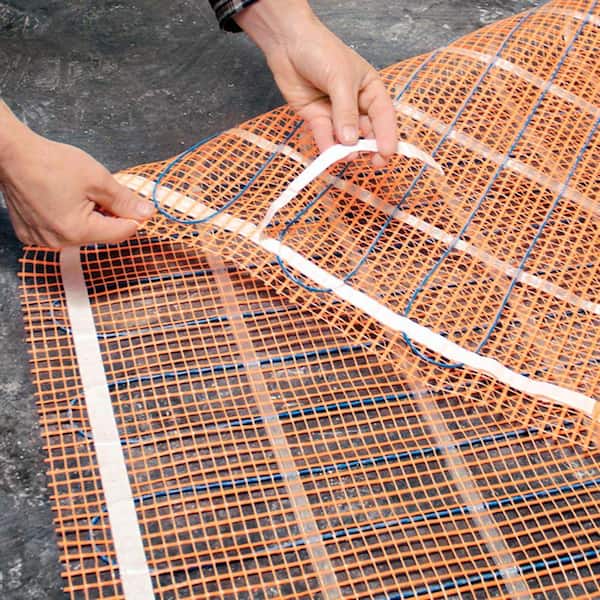

72 in. x 30 in. 120-Volt Radiant Floor Heating Mat

Apply Now
Save up to $100 on your qualifying purchase.
Apply for a Home Depot Consumer Card
  • Choose SunTouch mats for easy installation of floor warming
  • Installs under tile or stone, laminate, floating hardwood
  • SunTouch the simple, safe and efficient way to warm floors
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

Top Rated
+
+

Product Overview

This 120 volt 6 foot x 30 inch SunTouch floor warming mat adds comfort and a touch of luxury to a home. This ultra-thin, low-profile system installs beneath tile, stone and even vinyl or laminate flooring. It's ideal for remodeling bathrooms and kitchens and offers an upscale option when designing new construction. It is energy efficient as well as inexpensive to operate. Dual wire technology reduces electromagnetic fields (EMF) to ultra-low levels and it is UL listed for safety.
  • Energy efficient, inexpensive to operate
  • Dual wire technology reduces electromagnetic fields (EMF) to ultra-low levels
  • Single point power connection makes layout and wiring a snap
  • Armored power lead, wire straight to the electrical box, no conduit required
  • Heat-up times are generally 30-45 minutes for framed floors, slabs take longer
  • High-quality heating cable made with oxygen-free copper heating element surrounded by ETFE insulation and a braided metal grounding jacket
  • Power lead is color-coded green (ground), black (power), and white (neutral)
  • SunTouch is made in the USA and tested by the Tile Council of America
  • Mats can be connected in parallel for larger floor surfaces
  • Can be combined with a thermostat control (not included)
  • CLICK HERE to learn more about SunTouch and calculate what you will need for YOUR project



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

72 in. x 30 in. 120-Volt Radiant Floor Heating Mat

Compare Similar Under Floor Warming

Top Rated10 ft. x 36 in. 240-Volt Radiant Floor Heating System for Laminate, Vinyl, and Floating Floors (Covers 30 sq. ft.)
current product
Top Rated72 in. x 30 in. 120-Volt Radiant Floor Heating Mat
Best Seller10 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 25 sq. ft.)WarmWire Radiant Electric Floor Heating Wire 120-Volt - 70 sq. ft.
BrandQuietWarmthSunTouch Floor WarmingSunTouch Floor WarmingSunTouch Floor Warming
Name10 ft. x 36 in. 240-Volt Radiant Floor Heating System for Laminate, Vinyl, and Floating Floors (Covers 30 sq. ft.)72 in. x 30 in. 120-Volt Radiant Floor Heating Mat10 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 25 sq. ft.)WarmWire Radiant Electric Floor Heating Wire 120-Volt - 70 sq. ft.
Price
$11390
Add to Cart to See Price
Add to Cart to See Price
Add to Cart to See Price
Ratings
(124)
(335)
(335)
(2)
Voltage (volts)240120120120 V
Product Length (ft.)106.0 ft10.0 ft274 ft
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Length (ft.)
6.0 ft
Product Thickness (in.)
0.1875 in
Product Width (in.)
30 in

Details

Flooring Product Type
Underfloor Heating
Material
Fiberglass Mesh
Product Weight (lb.)
6.0 lb
Returnable
90-Day
Total Square Footage Covered
15
Voltage (volts)
120
Wattage (watts)
12 W

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
25 Year Limited Warranty

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.4
    out of 336 reviews
  • 87% recommend this product
Filter by:
Showing 1-10 of 336 reviews
Worth the investment and extra effort to install. It’s wonderful to step on my new warm tiles! Ea...
Worth the investment and extra effort to install. It’s wonderful to step on my new warm tiles! Easy to install. Highly recommend!
by Bella
    • Recommended Product
    1 person found this helpful
    I felt the installation instructions could have been a bit clearer to allow a DIYer a more a bett...
    I felt the installation instructions could have been a bit clearer to allow a DIYer a more a better understanding of the installation needs and procedure.
    by Wes
    • Verified Purchase
    • Recommended Product
    2 people found this helpful
    I have put this in every bathroom I ever re-do. I even put this in my apartments. I like the simp...
    I have put this in every bathroom I ever re-do. I even put this in my apartments. I like the simpler thermostat better—has less bells and whistles, and we can all do with less bells and whistles in tis modern era. People love the warm floors next to clawfoot tubs and showers and toilets! I hope they keep carrying the easy mat style. I always use a four gang box and then put in a single gang mud-ring over the top. Once I used a single gang box only at 5 feet and it worked OK, just a little crowded. I have this in a beach cottage I built too, and it is deluxe as heck!
    by goose
    Response from WattsWaterApr 3, 2019
    Thank you for your positive rating. We really appreciate the feedback and if there is ever anything we can assist with please feel free to contact us. Watts
      • Recommended Product
      4 people found this helpful
      doesn't radiate out
      Had this installed this summer and love it. My only issue is that i was told the heat would radiate to the surrounding tiles so i didn't need to install on the whole floor. Not true. The tiles adjacent to where this is installed are cold as ice (figuratively). For the cost, i would have easily place it on the whole floor instead of the areas i thought i needed.
      by Coldfeetwhilebrushing
        • Recommended Product
        11 people found this helpful
        Worked as advertised. Contractor did not have any issues with installation. They were able to p...
        Worked as advertised. Contractor did not have any issues with installation. They were able to pour leveler right over top and then placed the thin-set and tiles without any issue. Seemed like easy install for experience contractor. I've had the floor heat on for about two weeks with the temp set at 76 degrees with the suggested digital thermostat. Its keeping the ceramic flooring nice and warm. I will buy again when I do the second bathroom.
        by BD
        • Verified Purchase
        • Recommended Product
        7 people found this helpful
        Very Disappointed!
        I just purchased this item and had it professionally installed by my tile setter during my master bath renovation. Everything was installed correctly and the unit does work - but just barely! Even with the thermostat set at 90, it has barely warmed the initial coating of thin set mortar after nearly 5 hours of operation. There is NO way it will warm the floor when temperatures are actually cold. Unfortunately, this is an item that cannot be replaced once installed. DO NOT waste your money on this product - spend a little more and get a quality floor warmer.
        by ExperiencedRenovator
        • Pro
        12 people found this helpful
        Warm Toes all Winter!
        Great product, works well and I love the warm toes - no regrets there! I liked that you could cut and re-arrange where the heating sat Three things to be aware of: 1. You have to be VERY careful not to damage the wires. 2. The wires can make placing the tile uneven so you need to have fairly thick grout and lay the tile without your own weight on it. Obviously if you have a large area to cover, this could be difficult if you're laying from the center of the room and work yourself into a corner. 3. The instructions specifically say that the circuit should be 15 amps where my electrician said it should be 20 amps. You might want to calculate your load and clarify before you install.
        by Kwaussi
        • DIY
        • Recommended Product
        6 people found this helpful
        Somewhat easy to install, keeps tile warm
        Installed this during a bathroom remodel. I laid the mat to cover the high-traffic areas and cut one section on the end and flipped it around for coverage in front of the vanity. The directions are thorough. I used just a multimeter and kept good tabs on the OHMs. To protect the mat from the trowel cutting the wire while laying, I covered the smooth ends of my trowel with duct tape. This seemed to work well. I smoothed a skim coat over the mat then used a 1/4" trowel to lay the base. For areas with no mat under the tile I used a 1/2" trowel. This helped keep the tile level whether over the mat or not. Difficulties I ran into was the mat coming up with the thinset when I was smoothing the skim coat over. I learned to keep the trowel at an angle and not pull it straight off. The double-sided tap was helpful but thinset is sticky. Also, get the mat as flat as possible so it does not bunch up while you are skimming it with thinset. The last problem I had was my 'key tile' was on the mat which had covered the mark I had on the floor. Keep this in mind and plan that key tile well. It draws only 1.5 amps but I wired a sole 20 amp circuit for the mat and a GFCI outlet. I did not wire the thermostat for the mat as a load off the GFCI as the thermostat GFCI and outlet GFCI would trip each other. The mat takes about 10-15 minutes to warm the floor. I have never been on a heated floor and it does not get too hot. It is a little warmer than a wood floor. Nonetheless, it is much better than cold tile. I can certainly feel a major difference when I step on a heated mat area versus a non-heated area.
        by SteveVA
        • DIY
        • Recommended Product
        15 people found this helpful
        Works great
        Kids came home for Christmas and loved the new floor in the guest bathroom. It takes a long time to heat up over the concrete basement subfloor, but it is nice when it's ready. Keep your thinset thick. My tiles aren't perfect along the edge of the mat. You need to build up the area around the mat. Also, I didn't dig deep enough holes in the concrete subfloor. for the thermostat or the connections and they required a lot of building up thinset around them.
        by DC
          • Recommended Product
          6 people found this helpful
          most comfortable room in our home!
          My husband and I love our radiant floor. I wish we would have installed it throughout the rest of our home. It is so wonderful to put our feet on a warm, cozy floor. Highly recommend. We installed with the digital programmable thermostat.
          by HomeDepotCustomer
            • Recommended Product
            2 people found this helpful
