Ready to Install 12,000 BTU 23 SEER2 Wi-Fi Ductless Mini Split Year Round AC and Heat Pump w/ 16 ft. Lines 230V System
- Ready to Install - Everything you need, right out of the box
- All-Weather 4-in-1 Performance with Cold Climate Heating
- Energy Efficiency to 23 SEER2 helps save 50%+ vs legacy solutions
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Experience relief the moment you enter your room with TCL's high-wall 12,000 BTU ductless mini split heat pump. Designed for residential applications, this affordable HVAC solution delivers powerful performance without compromising premium features. When paired with the available matching outdoor unit, the system will provide an impressive 23 SEER2 energy efficiency rating, helping reduce monthly utility bills while maintaining optimal climate control. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, to perfectly reach all directions of the room. Paired with the matching outdoor unit, this system offers low ambient heating performance-even in extreme temperatures down to -13°F-thanks to its efficient 9.8 HSPF2 heating rating. Operating as quietly as 29 dB, this ultra-quiet ductless system ensures restful nights, comparable to the sound level of a library. Easily control the system from anywhere with the TCL Home App. Pair with the available matching outdoor unit which comes pre-packed with a full 16 ft. line set, so your ductless mini split heat pump system is ready to be up and running in a single afternoon. 5-Year Parts and Compressor Warranty / 10- Year Warranty with Pro Installation
Highlights
- Certified cooling performance: 12000 BTU/hour capacity, high efficiency 23 SEER2, 12 EER2
- Certified heating performance: 12000 BTU/hour capacity, high efficiency 9.8 HSPF2
- Built-in WIFI: Smart out of the box - Easily control your system via the TCL Home App, Amazon Alexa, or Google Assistant. Now you can take control of your air conditioning hands-free or even remotely.
- Voltage: 230-Volt, 60Hz, 1Ph
- Energy star and energy star cold climate certified
- 4-way airflow - provides up to 72 angles of air supply for a precise and a more comfortable environment in a wide indoor space
- ECO Mode - When compared to normal modes, ECO Mode uses less compressor capacity, which uses less energy. You may conserve energy at any time or use it to cool more effectively when it's not too hot outside.
- Turbo Mode - delivers rapid cooling or heating for immediate comfort by boosting the air conditioner's performance to quickly reach the desired temperature. This setting maximizes cooling or heating output for a short period, making it ideal for rapidly cooling a hot room or warming a cold space. While this mode provides immediate comfort, it consumes more energy, so it's best used sparingly. Once the room reaches the desired temperature, switching back to a regular mode can help maintain comfort while conserving energy.
- Sleep Mode - Adjusts the temperature and fan speed to provide a more comfortable sleeping environment, gradually changing the temperature setting to avoid excessive cooling or heating during the night, promoting better sleep and energy savings. The fan operates at a lower speed to minimize noise, creating a quiet and restful atmosphere. Sleep mode can also help reduce energy consumption by preventing the air conditioner from running at full capacity throughout the night.
- iFeel Mode - maintains the set temperature wherever the remote controller is located, through a built-in temperature sensor in the remote control, allowing for more precise temperature control.
- Runs Clean and Efficient with Effortless 4-Step Indoor Self-Cleaning cycle that freezes, defrosts, dries and heats the system to over 130°F to help sanitize and remove dust, dirt and impurities.
- Gentle Breeze Technology uses micro‑holes to create soft, dispersed airflow and reduce cold drafts.
- Fan mode - circulates air within the room without altering the temperature, this mode is useful for ventilating the space and maintaining air movement, especially during mild weather when cooling or heating isn't necessary, the fan speed can often be adjusted to low, medium, or high settings depending on your preference, using fan mode can help distribute conditioned air more evenly and improve overall air quality
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Additional Resources
Shop All TCLSpecifications
Dimensions
Air handler depth (in.) | 8.23 |
|---|---|
Air handler height (in.) | 12.01 |
Air handler width (in.) | 35.78 |
Condenser depth (in.) | 12.0 |
Condenser height (in.) | 21.61 |
Condenser width (in.) | 31.89 |
Details
Air Handler BTU | 12000 BTU |
|---|---|
Air handler weight (lb.) | 22.4 |
Amperage (A) | 5.8 A |
BTU Cooling Rating | 12000 BTU |
BTU Heat Rating | 12000 BTU |
Condenser weight (lb.) | 57.3 |
Coverage Area (sq. ft.) | 500 |
Decibel (Sound) Rating | 34 dBA |
Decibel Rating | 34 dBA |
Filter Type | Mesh |
Included | Accessories, Mounting Hardware, Remote Control |
Line Set Length (Ft.) | 16 ft |
Mini Split Features | Alexa Compatible, Auto cool, Automatic shutoff, Ductless, Fan only option, Filter light reminder, Google Assistant Compatible, Mobile App, Overload protection, Programmable, Sleep setting, Timer, Wifi |
Minimum Outdoor Temperature (F) | -13 |
Mount Location | Wall Mount |
Number of Tons | 1 ton |
Power Options | Hardwired |
Refrigerant Compatibility | R-32 |
Remote Access | Remote Access |
Requires Hub? | No Hub Required |
Returnable | 90-Day |
Smart Home | Smart Home Enabled |
Smart Home Protocol | Wi-Fi |
Voice Control Hub Required | Voice Control via Proprietary App |
Voltage (v) | 230v |
Wattage (watts) | 890 |
Works With | Alexa, Google Assistant, Proprietary App |
Zone Capacity | 1 Zone |
Warranty / Certifications
Manufacturer Warranty | Standard 5 Year Limited Parts Warranty Coverage. Product Registration available online. |
|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 0 |
Seasonal Energy Efficiency Ratio 2 (SEER 2) | 23 |
Questions & Answers
Looking to cool my garage during typical 112 degree Arizona heat. Will a 120-volt unit be sufficient, or do I need a 230-volt system?
Cooling a space for a specific temperature and area depends on factors such as the garage's size, insulation, and heat load. We recommend consulting a certified HVAC professional to determine whether this unit's cooling capacity is sufficient for your space. Hope this helps! Thank you, TCL Customer Support
What size breaker this runs on?
The TH12SVH23BW is designed for 110-120V, 60Hz, single-phase power and has a rated current of 8.0 amps. It should be installed on a dedicated 20-amp circuit using 12 AWG wiring to help ensure safe and reliable operation. As with any hardwired appliance, we recommend having a licensed electrician verify the installation requirements and ensure compliance with local electrical codes. Thank you, TCL Customer Support
Is the unit and lines precharged
The TH12SVH23BW outdoor units are pre-charged with refrigerant. Hope this helps! Thank you, TCL Customer Support
I know the MOCP is 30A but what is the start up amps and the amps just operating?
The electrical information for the TH24SVH21XW can be found on the unit’s service plate. We recommend referring to the service plate for the rated electrical specifications of the unit. Thank you, TCL Customer Support
I know the MOCP is 30 amps but what does it actually start up at and run at?
The electrical information for the TH24SVH21XW can be found on the unit’s service plate. We recommend referring to the service plate for the rated electrical specifications of the unit. Thank you, TCL Customer Support
Does DIY installation void warranty?
DIY installation does not automatically void the warranty. However, any damage, performance issues, or component failures resulting from improper installation are not covered under the manufacturer's warranty. A critical part of the installation process is pulling a proper vacuum on the line set and indoor coil. This step removes air, moisture, and other non-condensable gases from the refrigeration system. The compressor is designed to compress refrigerant vapor only and is not intended to operate in a system contaminated with air or moisture. Moisture left in the system can also react with the compressor oil, causing it to become acidic. If a proper vacuum is not performed before startup, this acid formation can lead to premature compressor failure and damage other critical components, including Electronic Expansion Valves (EEVs), Thermostatic Expansion Valves (TXVs), filter driers, and other internal refrigeration system components. In addition, intentionally venting refrigerant into the atmosphere is prohibited under EPA regulations. Failure to follow proper installation and refrigerant handling procedures may negatively affect system performance, energy efficiency, reliability, and warranty coverage. For safety, regulatory compliance, and optimal system operation, TCL strongly recommends that all installation, commissioning, and service work be performed by a licensed and certified HVAC technician. Thank you, TCL Customer Support
looking to purchase a 230v unit. do i need a HVAC technician to come and pull vacuum to install? Or does this come preloaded and ready to connect and start cooling immediately??
The TH12SVH23XW condenser or outdoor unit comes factory pre-charged with refrigerant. However, the refrigerant lines and evaporator still need to be properly vacuumed before the service valves are opened and the system is started. A vacuum pump and the appropriate HVAC tools are required for this process. We recommend having the system installed by a certified HVAC technician to help ensure proper installation, safety, and performance. Thank you, TCL Customer Support
Is there a ducted option? Or concealed option like in the ceiling for a different zone
The TH36SEH19XW does not currently offer ducted or concealed ceiling-mounted systems. If a concealed installation is required, a ducted-style system would be needed instead. Thank you, TCL Customer Support
Viewing 1-8 of 57
Customer Reviews
4.2 out of 5
5
28
4
3
3
3
2
2
1
4
Customer review from influenster.comWe’re glad to hear that the installation process went smoothly and that your husband is enjoying a quieter and more comfortable garage workspace. It’s great to know you’re making use of the Wi-Fi connectivity, TCL Home App, voice assistant compatibility, remote control, and self-cleaning features. At TCL, we are committed to delivering premium products with world-class customer experience. We hope you continue to have a great experience and explore more of the great features our units have to offer.
Thank you,
Liz TCL Customer Support
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for customers who want efficient, smart cooling/heating, ensuring comfort and energy savings. | Ideal for homeowners looking for energy-efficient climate control , this unit offers quiet operation and convenient features like a remote and timer . Enjoy year-round comfort with its powerful cooling and heating capabilities .. | Ideal for customers who want efficient heating/cooling, ensuring smart Wi-Fi control and quiet comfort. | DIY beginner-friendly mini-split heat pump system with easy installation and user-friendly features for hassle-free setup. |
Cooling Capacity | |||
12000 BTU | 12000 BTU | 24000 BTU | 12000 BTU |
Heating Capacity | |||
12000 BTU | 12000 BTU | 24000 BTU | 12000 BTU |
Number of Zones | |||
1 Zone | 1 Zone | 1 Zone | 1 Zone |
SEER Rating | |||
23 SEER2 | 17 | 20 | 23.5 |
Wi-Fi Enabled | |||
Related Products
Ready to Install 23,000 BTU 22 SEER2 Wi-Fi Ductless Mini Split Year Round AC and Heat Pump w/ 16 ft. Lines 230V System
Experience relief the moment you enter your room with TCL's high-wall 23,000 BTU ductless mini split heat pump. This all-new product line was designed and developed to bring a truly affordable heating and cooling solution without sacrificing desirable features. The variable-speed inverter technology and high-efficiency 22 SEER2 average rating provides savings from your monthly energy bill. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, to perfectly reach all directions of the room. All systems in this series come equipped to provide low ambient heating even in frigid -13°F temperatures. And with noise levels as low as 40 dB, you can rest easy in a peaceful environment that won't disturb your sleep. Easily control the system from anywhere with the TCL Home App. In addition, all systems come pre-packed with a full 16 ft. line set, so your ductless mini split heat pump system is ready to be up and running in a single afternoon. 5-Year Parts and Compressor Warranty / 10- Year Warranty with Pro Installation
17 SEER2 12,000 BTU 1 Ton Ductless Mini Split Air Conditioner with Heat Pump 208/230V
Our split inverter air conditioner with heat pump is a perfect addition to your home. This 12000 BTU split air conditioner can quickly cool down or warm up rooms up to 750 sq. ft., which is an ideal companion for hot summer or cold winter. Featuring an innovative inverter technology, our split AC unit can adjust the power supply frequency automatically to let you enjoy the benefit of comfort and lower energy consumption. The unit can provide strong and steady airflow to every part of your room with auto up-down and left-right swing. The air filter is easy to remove and wash, which can keep the AC unit running its best. You can adjust the working mode (auto, cool, dry, heat, fan), speed, timer, sleep mode, ECO mode or anything else by using the handy remote control. Self-clean and auto-defrost functions ensure good air quality and prolong service life. In addition, this split AC unit runs quietly, which won't disrupt your sleeping or working. And you can set the auto-off time from 0.5 to 24 hours. Warm Notice: 1. The item comes in 2 boxes and delivery time may be different per box, please contact us if you have any questions. 2. The installation of this equipment should be done only by a Licensed HVAC Installer.

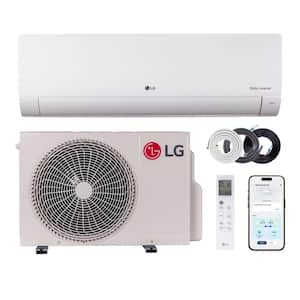

20 SEER2 12,000 BTU Wi-Fi ready Duct-free Mini Split Heater & Air Conditioning Inverter Driven Heat Pump-208-230V
LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures. Thanks to brushless direct current motor and a twin rotary compressor this unit is significantly quieter than traditional air conditioning systems. To ensure reliability and longevity the heat exchanger has a Gold Fin coating that prevents corrosion and improves durability.

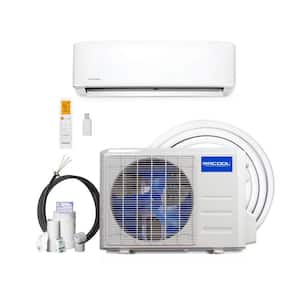

Advantage 5th Gen 12,000 BTU 1-Ton 1-Zone 21.2 Seer2 Ductless Mini-Split Complete System with 16 ft. Line-115V-R454B
