Internet #301410201

Model # FSBFE12

Store SKU #1002429575

0670750967092

Tectite

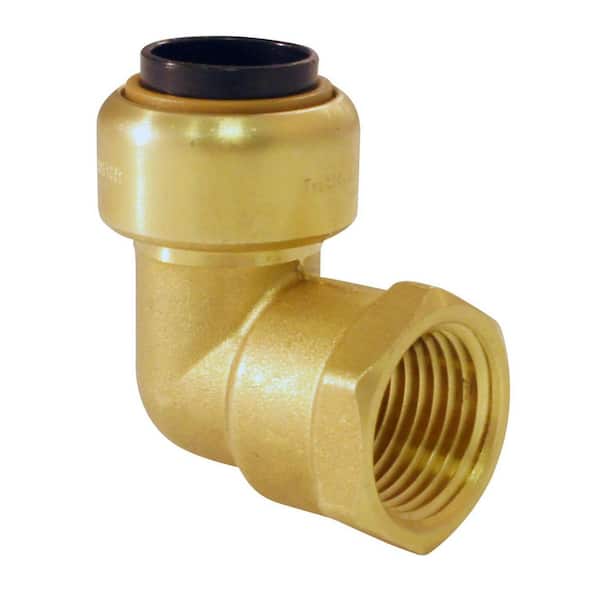

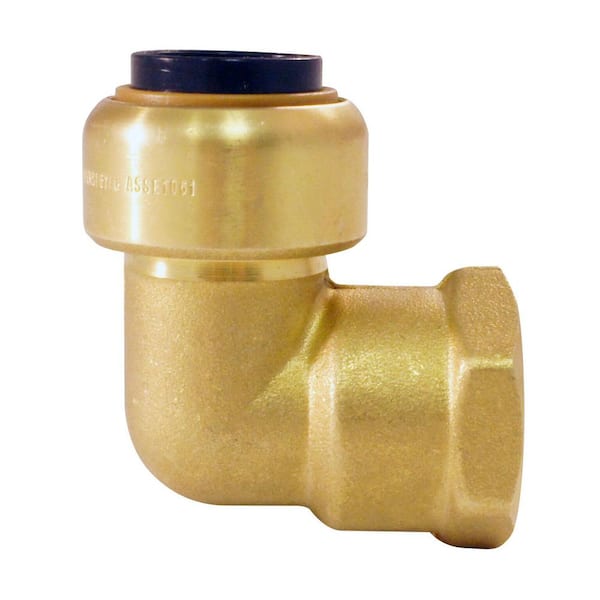

1/2 in. Brass Push-To-Connect x 1/2 in. Female Pipe Thread 90 Degree Elbow

  • Simple and fast installation on copper, PEX, CPVC or PE-RT pipe
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Removable and reusable
$ 7 87
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Simple and fast installation on copper, PEX, CPVC or PE-RT pipe
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Removable and reusable
The 1/2 in. Tectite by Apollo Push-To-Connect x 1/2 in. FNPT Elbow is the fastest, cleanest and simplest way to create a 90º joint of any combination of copper, CPVC, PE-RT and PEX pipe without the use of tools, solder, open flame or glue. This fitting has Tectite by Apollo push-to-connect technology on one end and FNPT threads on the opposite end. Simply insert the pipe to allow the high-strength stainless steel teeth to grip the pipe securely against the specially designed O-ring. Fitting removal and reuse is just as simple using a simple demount clip (sold separately). After assembly, fittings may be rotated for simpler installation in tight spaces. All Tectite by Apollo fittings are approved for use in both potable water and hydronic heating piping systems.
  • Constructed of lead free dezincification resistant (DZR) brass for superior reliability
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Push-to-connect design allows for a simple and fast installation on any combination of copper, PEX, CPVC or PE-RT pipe
  • Fittings can be rotated after being installed for ease of use in tight spaces
  • Ideal for potable water and hydronic heating applications
  • Listed by IAPMO and listed to ASSE 1061/NSF 64
  • Meets UPC, IPC and cUPC standard requirements
  • Demount clip allows for fitting removal (sold separately)
  • Approved for behind-the-wall with no access and burial
  • Corrosion resistant for greater longevity
  • Maximum working pressure of 200 psi and maximum temperature of 250˚F
  • California residents see Prop 65 WARNINGS

Product Overview

  • Simple and fast installation on copper, PEX, CPVC or PE-RT pipe
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Removable and reusable
Model #: FSBFE12
Sku #: 1002429575
Internet #: 301410201

The 1/2 in. Tectite by Apollo Push-To-Connect x 1/2 in. FNPT Elbow is the fastest, cleanest and simplest way to create a 90º joint of any combination of copper, CPVC, PE-RT and PEX pipe without the use of tools, solder, open flame or glue. This fitting has Tectite by Apollo push-to-connect technology on one end and FNPT threads on the opposite end. Simply insert the pipe to allow the high-strength stainless steel teeth to grip the pipe securely against the specially designed O-ring. Fitting removal and reuse is just as simple using a simple demount clip (sold separately). After assembly, fittings may be rotated for simpler installation in tight spaces. All Tectite by Apollo fittings are approved for use in both potable water and hydronic heating piping systems.

  • Constructed of lead free dezincification resistant (DZR) brass for superior reliability
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Push-to-connect design allows for a simple and fast installation on any combination of copper, PEX, CPVC or PE-RT pipe
  • Fittings can be rotated after being installed for ease of use in tight spaces
  • Ideal for potable water and hydronic heating applications
  • Listed by IAPMO and listed to ASSE 1061/NSF 64
  • Meets UPC, IPC and cUPC standard requirements
  • Demount clip allows for fitting removal (sold separately)
  • Approved for behind-the-wall with no access and burial
  • Corrosion resistant for greater longevity
  • Maximum working pressure of 200 psi and maximum temperature of 250˚F
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Tectite Tectite Tectite Tectite
Name 1/2 in. Brass Push-To-Connect x Female Pipe Thread Adapter 1/2 in. Brass Push-To-Connect x 1/2 in. Male Pipe Thread 90-Degree Elbow 1/2 in. Brass Push-To-Connect x 1/2 in. Female Pipe Thread 90 Degree Elbow 1/2 in. Brass Push-to-Connect x Female Pipe Thread Drop Ear Elbow
Price
$6.85
$7.73
$7.87
$8.73
Ratings (0) (0) (2) (3)
View Product View Product View Product View Product

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Insertion Depth (In.)
.95
Product Depth (in.)
2.19 in
Product Height (in.)
2.19 in
Product Width (in.)
0.98 in

Details

Application
Water Supply
Bend Degree
90 Degree
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
FPT
Connectivity
Push Fit
Features
Adjustable,Lead Free,Removable
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
250
Maximum working pressure (psi)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.27 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Lifetime: For exclusive use with: PEX - ASTM F876/CSA B137.5 Copper - ASTM B 88 hard drawn copper tube K, L, & M CPVC - ASTM D2846 or CSA B137.6 PE-RT - ASTM F2769

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Insertion Depth (In.)
.95
Product Depth (in.)
2.19 in
Product Height (in.)
2.19 in
Product Width (in.)
0.98 in

Details

Application
Water Supply
Bend Degree
90 Degree
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
FPT
Connectivity
Push Fit
Features
Adjustable,Lead Free,Removable
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
250
Maximum working pressure (psi)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.27 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Lifetime: For exclusive use with: PEX - ASTM F876/CSA B137.5 Copper - ASTM B 88 hard drawn copper tube K, L, & M CPVC - ASTM D2846 or CSA B137.6 PE-RT - ASTM F2769
