Internet #305483723

Model # FSBM3PTO

Store SKU #1003438470

0670750029684

Tectite

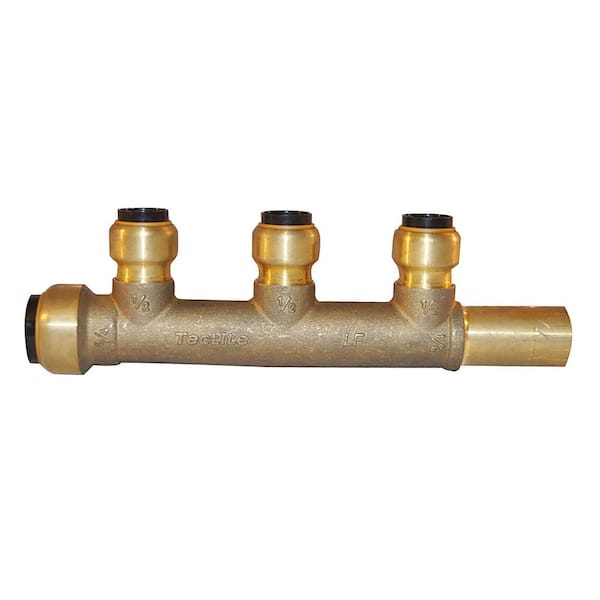

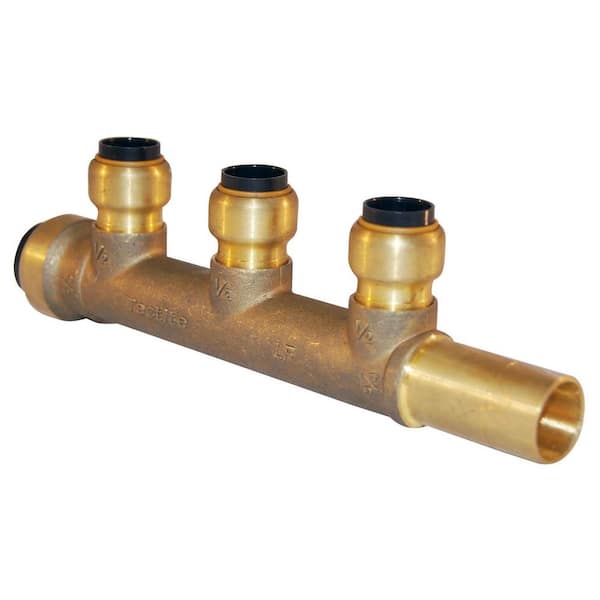

3/4 in. Brass Push-To-Connect Inlet x 3/4 in. CTS Stem 3-Port Open Manifold with 1/2 Brass Push-To-Connect Outlets

  • 3-port option allows for three outlets
  • Simple and fast installation on copper, PEX, CPVC or PE-RT pipe
  • Removable and reusable
$ 30 60
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • 3-port option allows for three outlets
  • Simple and fast installation on copper, PEX, CPVC or PE-RT pipe
  • Removable and reusable
Tectite by Apollo Push-To-Connect Manifolds are the fastest, simplest and cleanest way to integrate a multi-branch manifold into modern piping systems without the use of tools, solder, open flame or glue. Designed with multiple port configurations, street versions with both open and closed options, the Tectite by Apollo manifold family of fittings provides the utmost in customer flexibility. Simply insert the pipe to allow the high-strength stainless steel teeth to grip the pipe securely against the specially designed O-ring. Fitting removal and reuse is just as simple using a simple demount clip (sold separately). After assembly, fittings may be rotated for simpler installation in tight spaces. All Tectite by Apollo fittings are approved for use in both potable water and hydronic heating piping systems.
  • Closed configuration is ideal for the end of a run
  • 3/4 in. street inlet can be inserted into any existing or new push-to-connect fitting
  • 1/2 in. branch outlets and 3/4 in. flow-through outlet
  • Also available in 2-port open, 2-port closed, and 3-port open
  • Constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Fittings can be rotated after being installed for ease of use in tight spaces
  • Ideal for potable water and hydronic heating applications
  • Listed by IAPMO and listed to ASSE 1061/NSF 61
  • Meets UPC, IPC, and cUPC standard requirements
  • Demount clips (sold separately) allow for fitting removal and adjustment
  • Approved for behind-the-wall with no access and burial
  • Corrosion resistant for greater longevity
  • Maximum working pressure of 200 psi and maximum temperature of 250°F
  • California residents see Prop 65 WARNINGS

Product Overview

  • 3-port option allows for three outlets
  • Simple and fast installation on copper, PEX, CPVC or PE-RT pipe
  • Removable and reusable
Model #: FSBM3PTO
Sku #: 1003438470
Internet #: 305483723

Tectite by Apollo Push-To-Connect Manifolds are the fastest, simplest and cleanest way to integrate a multi-branch manifold into modern piping systems without the use of tools, solder, open flame or glue. Designed with multiple port configurations, street versions with both open and closed options, the Tectite by Apollo manifold family of fittings provides the utmost in customer flexibility. Simply insert the pipe to allow the high-strength stainless steel teeth to grip the pipe securely against the specially designed O-ring. Fitting removal and reuse is just as simple using a simple demount clip (sold separately). After assembly, fittings may be rotated for simpler installation in tight spaces. All Tectite by Apollo fittings are approved for use in both potable water and hydronic heating piping systems.

  • Closed configuration is ideal for the end of a run
  • 3/4 in. street inlet can be inserted into any existing or new push-to-connect fitting
  • 1/2 in. branch outlets and 3/4 in. flow-through outlet
  • Also available in 2-port open, 2-port closed, and 3-port open
  • Constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Fittings can be rotated after being installed for ease of use in tight spaces
  • Ideal for potable water and hydronic heating applications
  • Listed by IAPMO and listed to ASSE 1061/NSF 61
  • Meets UPC, IPC, and cUPC standard requirements
  • Demount clips (sold separately) allow for fitting removal and adjustment
  • Approved for behind-the-wall with no access and burial
  • Corrosion resistant for greater longevity
  • Maximum working pressure of 200 psi and maximum temperature of 250°F
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Tectite SharkBite Tectite Tectite
Name 3/4 in. Brass Push-To-Connect x CTS Street Slip Adapter 3/4 in. Push-to-Connect x MIP Brass Adapter Fitting (4-Pack) 3/4 in. x 3/4 in. Brass Push-To-Connect Inlets with 3-Port Open Manifold 1/2 in. Push-To-Connect Outlets 3/4 in. Brass Push-To-Connect Inlet x 3/4 in. CTS Stem 3-Port Open Manifold with 1/2 Brass Push-To-Connect Outlets
Price
$17.32
$25.39
$27.20
$30.60
Ratings (1) (4) (0) (0)
View Product View Product View Product View Product

Specifications

Dimensions

Double Fitting Size
3/4" x 3/4"
Fitting 1 size
3/4"
Fitting 2 size
3/4"
Insertion Depth (In.)
1.13
Product Length (in.)
7.5

Details

Application
Water Supply
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
CTS
Connectivity
Push Fit
Features
Adjustable,Corrosion Resistant,Lead Free,Removable
Fitting or Connector Type
Adapter
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
250
Maximum working pressure (psi)
200
Pack Size
1
Pipe or Fitting Product Type
Manifolds
Product Weight (lb.)
0.818lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Lifetime: For exclusive use with:PEX - ASTM F876/CSA B137.5Copper - ASTM B 88 hard drawn copper tube K, L, & MCPVC - ASTM D2846 or CSA B137.6PE-RT - ASTM F2769

Specifications

Dimensions

Double Fitting Size
3/4" x 3/4"
Fitting 1 size
3/4"
Fitting 2 size
3/4"
Insertion Depth (In.)
1.13
Product Length (in.)
7.5

Details

Application
Water Supply
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
CTS
Connectivity
Push Fit
Features
Adjustable,Corrosion Resistant,Lead Free,Removable
Fitting or Connector Type
Adapter
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
250
Maximum working pressure (psi)
200
Pack Size
1
Pipe or Fitting Product Type
Manifolds
Product Weight (lb.)
0.818lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Lifetime: For exclusive use with:PEX - ASTM F876/CSA B137.5Copper - ASTM B 88 hard drawn copper tube K, L, & MCPVC - ASTM D2846 or CSA B137.6PE-RT - ASTM F2769
