Model # POBR12300

Internet #303691157

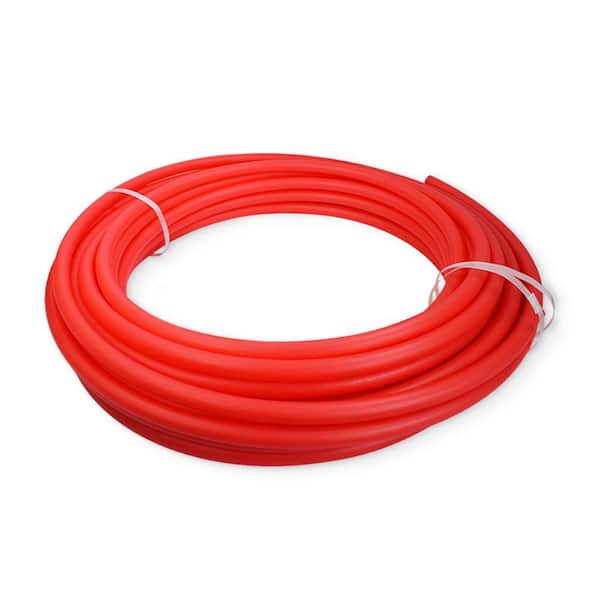

The Plumber's Choice 1/2 in. x 300 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red
0804595164105

The Plumber's Choice

1/2 in. x 300 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red

$ 95 99 /each
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

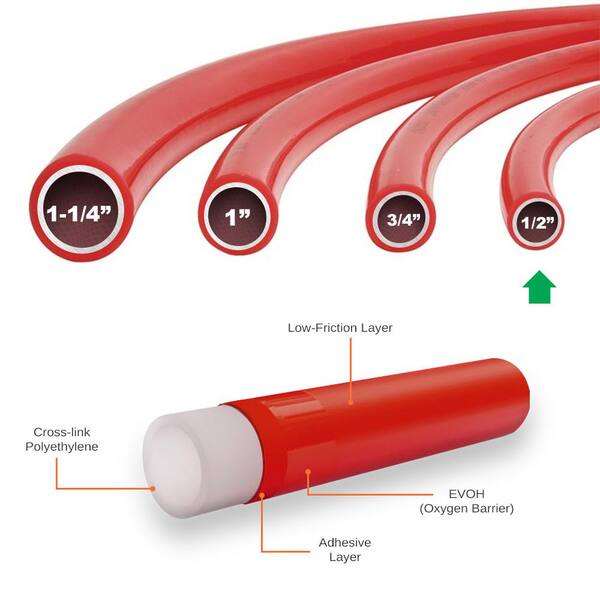

Oxygen Barrier (EVOH) is a strong and flexible cross-linked polyethylene tubing with superior temperature and pressure ratings that is useful in commercial and residential hydronic radiant heating applications. With the same properties as PEX non-barrier pipes. EVOH PEX barrier pipe keeps oxygen and other elements from infiltrating and corrupting the key mechanical components in heating systems.
  • Performance superior operation of oxygen barrier tubing that will prevent oxygen and foreign elements penetrating heating system to help maintain corrosion resistance of metal parts
  • Markings PEX tubing markings are unique feature that imprints common standards and ratings making it easy to understand tubing properties
  • Outdoor usage PEX tubing composite provides benefits of freeze protection by expanding and contracting to function as snow melting application
  • Important: This type is used strictly for heating applications and is not suitable for potable water plumbing
  • Non-structural slabs (thermal mass, gypsum slabs)
  • Sandwich types radiant heating (between subfloor and finished floor)
  • CSA B137.5: Cross linked polyethylene (PEX) tubing systems for pressure applications
  • ANSI/NSF 14, NSF rfh (certified for radiant heating applications)
  • Applications - 1/2 in. PEX tubing with oxygen barrier is common for the following radiant floor heating applications
  • Non-structural slabs (thermal mass, gypsum slabs)
  • Staple-up (between joists) radiant floor heating with and without heat transfer plates
  • Sandwich types radiant heating (between subfloor and finished floor)
  • Standards, certifications and approvals - ASTM F877: standard specification for cross-linked polyethylene (PEX) plastic hot- and cold-water distribution systems
  • CSA B137.5: cross linked polyethylene (PEX) tubing systems for pressure applications
  • All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements
  • ANSI/NSF 14, NSF-rfh (certified for radiant heating applications)

Product Overview

Model #: POBR12300
Internet #: 303691157

Oxygen Barrier (EVOH) is a strong and flexible cross-linked polyethylene tubing with superior temperature and pressure ratings that is useful in commercial and residential hydronic radiant heating applications. With the same properties as PEX non-barrier pipes. EVOH PEX barrier pipe keeps oxygen and other elements from infiltrating and corrupting the key mechanical components in heating systems.

  • Performance superior operation of oxygen barrier tubing that will prevent oxygen and foreign elements penetrating heating system to help maintain corrosion resistance of metal parts
  • Markings PEX tubing markings are unique feature that imprints common standards and ratings making it easy to understand tubing properties
  • Outdoor usage PEX tubing composite provides benefits of freeze protection by expanding and contracting to function as snow melting application
  • Important: This type is used strictly for heating applications and is not suitable for potable water plumbing
  • Non-structural slabs (thermal mass, gypsum slabs)
  • Sandwich types radiant heating (between subfloor and finished floor)
  • CSA B137.5: Cross linked polyethylene (PEX) tubing systems for pressure applications
  • ANSI/NSF 14, NSF rfh (certified for radiant heating applications)
  • Applications - 1/2 in. PEX tubing with oxygen barrier is common for the following radiant floor heating applications
  • Non-structural slabs (thermal mass, gypsum slabs)
  • Staple-up (between joists) radiant floor heating with and without heat transfer plates
  • Sandwich types radiant heating (between subfloor and finished floor)
  • Standards, certifications and approvals - ASTM F877: standard specification for cross-linked polyethylene (PEX) plastic hot- and cold-water distribution systems
  • CSA B137.5: cross linked polyethylene (PEX) tubing systems for pressure applications
  • All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements
  • ANSI/NSF 14, NSF-rfh (certified for radiant heating applications)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$84.11 /each
$95.99 /each
$134.99 /each
$198.02 /each
Name 1/2 in. x 300 ft. PEX Tubing Potable Water Pipe - Red 1/2 in. x 300 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red 1/2 in. x 500 ft. PEX Tubing Potable Water Pipe in Red 1/2 in. x 100 ft. PEX Tubing Plumbing Kit with Crimper, Cutter Tools Barb Elbow Straight Coupling and Plug, Full Strap
Brand The Plumber's Choice The Plumber's Choice The Plumber's Choice The Plumber's Choice
Ratings (2) (2) (2) (1)
View Product View Product View Product View Product

Specifications

Dimensions

Actual inside diameter (in.)
0.475
Actual outside diameter (in.)
0.625
Pipe Size
1/2"
Product Depth (in.)
24
Product Height (in.)
24
Product Length (ft.)
300
Product Width (in.)
24

Details

Application
Water Supply
Color Family
Red
Color/Finish
Red
Features
Underground Use,Wrapped
Material
Cross-Linked Polyethylene (PEX)
Maximum Working Temperature (F)
80
Maximum working pressure (psi)
160
Minimum working temperature (F)
73
Pipe & Tubing Product Type
PEX
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
19.2lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
ASTM Compliant,CSA Certified,NSF Certified
Manufacturer Warranty
1 Year

Specifications

Dimensions

Actual inside diameter (in.)
0.475
Actual outside diameter (in.)
0.625
Pipe Size
1/2"
Product Depth (in.)
24
Product Height (in.)
24
Product Length (ft.)
300
Product Width (in.)
24

Details

Application
Water Supply
Color Family
Red
Color/Finish
Red
Features
Underground Use,Wrapped
Material
Cross-Linked Polyethylene (PEX)
Maximum Working Temperature (F)
80
Maximum working pressure (psi)
160
Minimum working temperature (F)
73
Pipe & Tubing Product Type
PEX
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
19.2lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
ASTM Compliant,CSA Certified,NSF Certified
Manufacturer Warranty
1 Year

Questions & Answers

What is the best connectionfor this pipe?the crimp ring or the pro crimp ring or the cllip.

Asked by: Joe
I prefer the crimp ring, black. We use the stainless crimp rings too but over the years I have not had any issues or call backs with the black crimp rings. The stainless have been mostly used now for fixing hose ends, water or air but I prefer the round rings. Both tools sold at the local Home Depot store.
Answered by: lardog
Date published: 2018-09-02

What is the maximum UV exposure time?

What is the maximum UV exposure time?
Asked by: Designer
PEX tubing isn’t suitable for above ground outdoor plumbing installations because it easily gets damaged by UV rays.
Answered by: The Plumber's Choice
Date published: 2018-09-12

What is the ASTM F877 cell classification of this PEX pipe? Is it 5006?

What is the ASTM F877 cell classification of this PEX pipe? Is it 5006?
Asked by: Designer
Yes, it is 5006.
Answered by: The Plumber's Choice
Date published: 2018-09-12

Is this PEX A B or C?

Asked by: Todd
PEX B
Answered by: The Plumber's Choice
Date published: 2018-08-13
  • y_2018, m_12, d_13, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_6
  • loc_, sid_303691157, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 34ms
  • QUESTIONS, PRODUCT

Customer Reviews

1/2 in. x 300 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Good quality PEX tubing for radiant heating usage - in other words, there is a coating on the out... Good quality PEX tubing for radiant heating usage - in other words, there is a coating on the outside which keeps oxygen from getting inside the water and causing corrosion of the heating system. This tubing is a bit stiff, but all the PEX tubing I have used is somewhat stiff. For my installation, it seems to work just fine, with no leaks or other problems.
Date published: 2018-04-10
Rated 5 out of 5 by from 1/2 in. x 100 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red used to distinguish hot ... 1/2 in. x 100 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red used to distinguish hot water lines from cold water lines. Attached photograph is where we used the red PEX to install a pot filler on a new remodel. The red PEX loop sticking out of the drywall is for the emergency shutoff that will be located in the cabinet below the cooktop. It supplies the upper steel nipple during the construction and through competition until the pot filler is mounted. The lower steel nipple in photograph is for the gas cooktop supply. Your local Home Depot store has all the fittings, crimp sleeves and crimping tools necessary to install this pipe. Look for it in the plumbing section. Cuts easily with a NON spring-loaded PVC cutter. Typically used with plastic barbed fittings and steel collar with need clamping tool, again available at your the local Home depot store. This pipe is made for interior installations ONLY, it is not exterior use or ultraviolet resistant.
Date published: 2018-04-03
