Model #83503-3

Compact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate (3-PK : 9.8 ft)

$13241
Apply Now
Save up to $100 on your qualifying purchase.
Apply for a Home Depot Consumer Card
  • Modular "snap-together" system - customizes to any project layout
  • Anti-float design eliminates the need for rebar anchoring
  • Removeable grate for easy cleaning and maintenance
  • See More Details

Frequently Bought Together

Top Rated
+
+
Price:
$13241

Product Overview

Because of their low-profile design, the Compact Series Modular Trench Drain systems are perfect for low water flow areas in landscape water drainage projects. Optimal for deviating rainfall water and flowing or stagnant water on property where water tends to collect and pool. Adjacent to homes or at the bottom of sloped areas; Trench Drains provide flexible drainage solutions. Residential uses include yard water drainage for small-grassed suburban properties or large acres of land and farm areas. Easily collect and disperse water from patio areas or pool sides. Commercial water drainage systems allow safe and efficient drainage for office buildings, property, or factory interiors. The flat grates are designed to distribute weight to the drain edges, and the smaller slats are ideal for walking on without worrying about high-heeled shoes getting caught. The bottom of the system contains cut-out section for 3 in., 3.5 in. or 4 in. drainage pipes. The compact Trench Drain is visually appealing due to its sleek, yet sturdy, construction and adds an aesthetic touch it its surroundings. Available accessories include end caps, adaptor pieces, convertor pieces, 90 corner pieces, storm water pits, and alternative grates.
  • Easily removable grate that allows for easy cleaning
  • Anti-flotation design prevents floating and doesn't require staking when setting in concrete
  • Easy clip together design
  • Easy cut sections every 8 in. and join using our convertors to perfectly fit to any location
  • Built in bottom outlets at both ends of the trench drain to easily connect 3 in. and 4 in. sewer and drain pipe
  • Manufactured from lightweight, recycled UV stabilized poly propylene polymer; grate manufactured from pressed stainless steel
  • Includes 3 length of channel and grate + 2 end caps + 1 convertor
  • Dimensions: 3 lengths x 39.37 in. X 5.43 in. X 3.15 in.
  • Heel proof grate

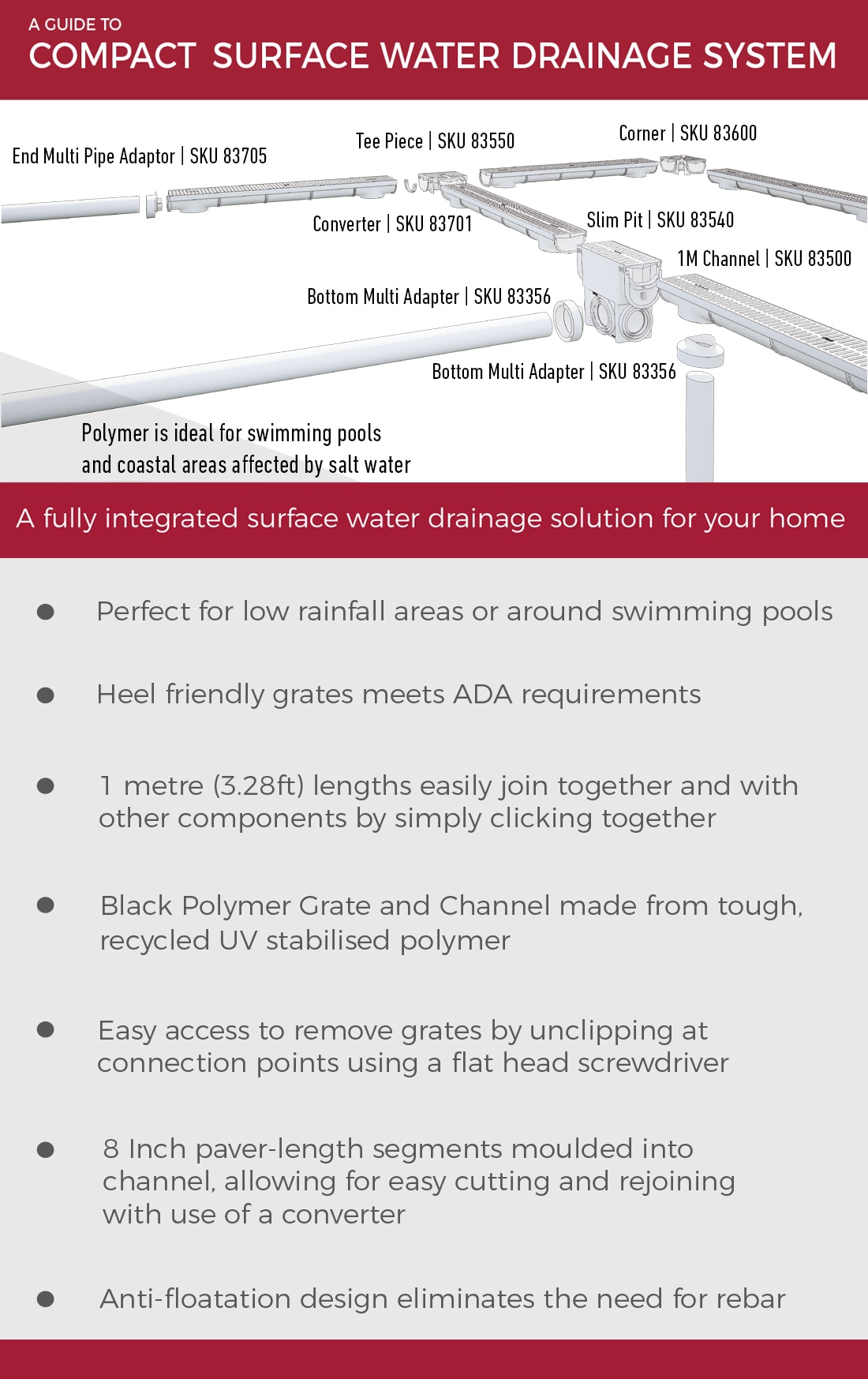

  • Click Here to view Features & Benefits of this product
  • Compact Series Trenches & Accessories are not Compatible with Deep Series items



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate (3-PK : 9.8 ft)

Compare Similar Channel Drains

current product
Top RatedCompact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate (3-PK : 9.8 ft)
Deep Black 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit (6-Pack)Top RatedDeep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate (3-Pack : 9.8 ft)Top RatedCompact Series 39.4 in. L x 5.4 in. W x 3.2 in. D Trench and Channel Drain Kit with Black Grates (12-Pack: 39.4 ft.)
BrandU.S. TRENCH DRAIN U.S. TRENCH DRAINU.S. TRENCH DRAIN
NameCompact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate (3-PK : 9.8 ft)Deep Black 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit (6-Pack)Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate (3-Pack : 9.8 ft)Compact Series 39.4 in. L x 5.4 in. W x 3.2 in. D Trench and Channel Drain Kit with Black Grates (12-Pack: 39.4 ft.)
Price
$13241
$15649
$23184
$25106
Ratings
(347)
(1)
(266)
(184)
Product Length (in.)3.15232.8118.11 in39.4 in
MaterialPlasticPlasticPlasticPlastic
Pack Size36312
View ProductView ProductView ProductView Product

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
3.15 in
Product Length (in.)
3.15
Product Width (in.)
5.4 in

Details

Color Family
Black
Color/Finish
Black/Metallic
Compatible Area of Use
Downspout Runoff,Driveway,Neighbor Runoff,Patio,Planter Areas,Pool Deck,Walkways,Yard
Material
Plastic
Maximum Working Temperature (F)
180
Minimum working temperature (F)
-20
Pack Size
3
Package Quantity
3
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
15 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
2-Year Warranty

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.6
    out of 357 reviews
  • 96% recommend this product
Filter by:
Showing 1-10 of 357 reviews
Great! Appreciate that is is made in USA also. Very sturdy. Used for a paver drain to channel wat...
Great! Appreciate that is is made in USA also. Very sturdy. Used for a paver drain to channel water away from my driveway.
by Edgewater
  • Verified Purchase
  • Recommended Product
1 person found this helpful
I used the Grates on my deck where my eaves drip to allow the water to pass through instead of sp...
I used the Grates on my deck where my eaves drip to allow the water to pass through instead of splashing up on the side of the house. Perfect fit, replaced the first row of deck boards. Wish I would have had these when I put the deck in. Should eliminate replacing clapboards every few years.
by sharkie
  • Verified Purchase
  • Recommended Product
3 people found this helpful
Good for walkways but not stout enough for automobile traffic. It only has provisions for being c...
Good for walkways but not stout enough for automobile traffic. It only has provisions for being cut at eight inch intervals. Turning a corner when not being able to cut on the eight inch provision molded into the drain trench to be connected with the provided snap half ring means that the two pieces float rather than connect together. Good for straight line drain usage.
by TB
  • Verified Purchase
  • Recommended Product
3 people found this helpful
First let me say I do lots of research, and read tons of reviews when determining a cost effectiv...
First let me say I do lots of research, and read tons of reviews when determining a cost effective solution for a project. However I ONLY write reviews on EXCEPTIONAL products..... Value for price of this product was excellent. I could not find a cheaper solution anywhere other than Home Depot. I was concerned with quality since the cost was low, but these drains were strong, robust, and fit together tight and easy. No additional hardware was required. I was adding the drain for surface water collection under my deck, where years of settling had pitched the ground towards the house. These worked perfect, and allowed me to lay sheet plastic into them and snap the covers on to maximize water collection. Excellent low cost solution for my problem! I have already recommended these to others in my mountainous area with the same problem.
by Chapmad1
    • Recommended Product
    8 people found this helpful
    Quick shipping. Straight-forward installation. 'Extras' / 'Accessories' expensive (and some, such...
    Quick shipping. Straight-forward installation. 'Extras' / 'Accessories' expensive (and some, such as the foam tape for expansion , along the sides, 'required' for installation, should be included... Time will tell if it lasts.
    by mch
    • Verified Purchase
    • Recommended Product
    2 people found this helpful
    Installation was easy. I used a crushed granite base instead of concrete. It looks good and works...
    Installation was easy. I used a crushed granite base instead of concrete. It looks good and works good. I only wonder how long it will last since it is plastic, but only time will tell.
    by Rockman
    • Verified Purchase
    • Recommended Product
    4 people found this helpful
    Excellent product, Use as the drain between the Garage and the newly installed pavers in the dri...
    Excellent product, Use as the drain between the Garage and the newly installed pavers in the driveway. Product was easy to install. It does need solid support under the channel.
    by rma
    • Verified Purchase
    6 people found this helpful
    I needed a shallow channel drain and this fit my needs. The price is very good and it was easy to...
    I needed a shallow channel drain and this fit my needs. The price is very good and it was easy to install. I used it in a patio to divert the water runoff from the basement.
    by PETER
    • Verified Purchase
    • Recommended Product
    7 people found this helpful
    This shallow trench drain worked well for an entrance walkway that had a problem with "ponding" w...
    This shallow trench drain worked well for an entrance walkway that had a problem with "ponding" water. I connected it to a 3" 90° PVC elbow straight into a 4" corrugated drain pipe. It's able to keep up with the heaviest downpours in Florida. ;) No more trudging through ankle deep water, or the silt that remained after the fact!
    by Jemm
    • Verified Purchase
    • Recommended Product
    3 people found this helpful
    As a supplement to a French Drain project, I installed this trench drain outside in front of a lo...
    As a supplement to a French Drain project, I installed this trench drain outside in front of a lower level, low sitting door. I cut a 2-inch diameter hole in the bottom of the drain at one end and inserted a 4 inch long piece of 2 inch PVC and sealed it with adhesive caulk. Attached a 90 degree elbow to the PVC and connected a foot long piece of 2-inch PVC to the elbow and ran it into a foot long piece of 3-inch corrugated pipe (using a 2 inch to 3 inch rubber connector). The 3-inch corrugated pipe joins w/ my 3-inch corrugated pipe from my downspout into a Y-connector and it all flows 30 feet out to the street. Before permanently installing the trench drain, I tested it w/ a bucket of water dumped into the top of the drain. Both end caps on the trench drain and my 2-inch cut hole on the bottom of the drain leaked. I sealed everything up w/ more caulk and after that cured I painted on BlackJack 57 roofing/foundation rubberized sealant; and no more leakage.
    by Roberto
    • Verified Purchase
    • Recommended Product
    8 people found this helpful
