#1 Home Improvement Retailer

Internet #302782502

Model #83330

Store SKU #1002667782

Deep Series 90 Deg. Corner for 5.4 in. Trench and Channel Drain Systems w/Black Grate

$1832

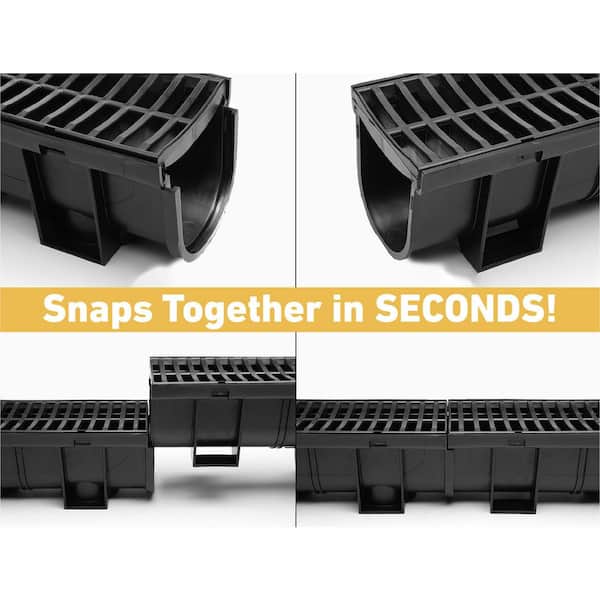

  • Channel drain snaps together in seconds
  • Anti-float design eliminates the need for rebar anchoring
  • Removeable grate for easy cleaning and maintenance
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$1832

Product Overview

The Deep Series 90 degree Angled Corner piece allows your Trench Drain Systems to change direction to the right or left. Designed for residential and commercial drainage systems, the trench drain corner is easy to install and features a matching grate for a streamlined look. Designed for use with Deep Series Black Polymer Modular Channels and Grate Systems.
  • Universal corner piece - can be used to change direction to either left or right
  • Easy clip together design
  • Easily removable grate for cleaning
  • Made from lightweight, recycled UV stabilized poly propylene polymer
  • Great for high rainfall areas
  • Includes 1 corner channel and grate
  • Dimensions: 6.73 in. L x 6.73 in. W x 5.39 in. H
  • Click Here to view Features & Benefits of this product
  • Deep Series Trenches & Accessories are not compatible with Compact Series items



Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Channel Drains

Deep Series Tee for 5.4 in. Trench and Channel Drain Systems w/Black Grate
current product
Deep Series 90 Deg. Corner for 5.4 in. Trench and Channel Drain Systems w/Black Grate
Compact Series 90 Deg. Corner for 3.2 in. D Trench and Channel Drain Systems w/Black GrateCompact Series Tee for 3.2 in. Trench and Channel Drain Systems with Black Grate
BrandU.S. TRENCH DRAINU.S. TRENCH DRAINU.S. TRENCH DRAINU.S. TRENCH DRAIN
NameDeep Series Tee for 5.4 in. Trench and Channel Drain Systems w/Black GrateDeep Series 90 Deg. Corner for 5.4 in. Trench and Channel Drain Systems w/Black GrateCompact Series 90 Deg. Corner for 3.2 in. D Trench and Channel Drain Systems w/Black GrateCompact Series Tee for 3.2 in. Trench and Channel Drain Systems with Black Grate
Price
$1596
$1832
$1912
$2148
Ratings
(273)
(275)
(394)
(394)
Product Length (in.)7.01 in6.73 in6.69 in7.99 in
MaterialPlasticPlasticPlasticPlastic
Pack Size1111
Pipe or Fitting Product TypeAccessoryAccessoryAccessoryAccessory
Product Depth (in.)5.39 in5.39 in3.15 in3.15 in
View ProductView ProductView ProductView Product

Specifications

Dimensions

Max. Compatible Pipe Size (In.)No Compatible Pipe SizeMin. Compatible Pipe Size (In.)No Compatible Pipe Size
Product Depth (in.)5.39 inProduct Length (in.)6.73 in
Product Width (in.)6.73 in

Details

Color FamilyBlackColor/FinishBlack
Compatible Area of UseDownspout Runoff,Driveway,Neighbor Runoff,Patio,Planter Areas,Pool Deck,Walkways,YardMaterialPlastic
Maximum Working Temperature (F)180Minimum working temperature (F)-20
Pack Size1Package Quantity1
Pipe or Fitting Product TypeAccessoryProduct Weight (lb.)1.2 lb
Returnable90-Day

Warranty / Certifications

Manufacturer Warranty2-Year Warranty

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4
    out of 275 reviews
  • 78%recommend this product
Filter by:
Showing 1-10 of 275 reviews
I used it next to a side walk with dirt on the other side and a little gravel on top so the dirt ...
I used it next to a side walk with dirt on the other side and a little gravel on top so the dirt would stay put. I had to have a slight turn and had to cut it. Wish I knew that nothing will bond or seal to these drain systems because their made of polypropylene ploymer. Only thing I found was DP-8005 from 3M and it aint cheap that's why I gave it only 4 stars. After heavy rains from hurricane Delta the system performed very well. The grates are easy to pop off with two flathead screwdrivers.
by
  • Verified Purchase
  • Recommended
4 found this review helpful
I bought this and 18ft of drain. It worked out well, except for the connectors to add end caps an...
I bought this and 18ft of drain. It worked out well, except for the connectors to add end caps and join the 90° corner to the drain. The connector is too flexible and doesnt hold well, but with a little determination and concrete to hold everything in place, we are very happy with the finished product.
by
  • Verified Purchase
  • Recommended
At first I was a little skeptic, but to my surprise the product exceded my expectations. No more ...
At first I was a little skeptic, but to my surprise the product exceded my expectations. No more flooding issues and the best part of it is that The black channel grate looks amazing under my new pergola.:)
by
  • Verified Purchase
  • Recommended
The product is very good, the only thing I had a problem with was the using the coupling. It doe...
The product is very good, the only thing I had a problem with was the using the coupling. It does not make a good connection.
by
  • Verified Purchase
  • Recommended
4 found this review helpful
The sections for this drain kit slide together but they don't snap in place which makes it hard t...
The sections for this drain kit slide together but they don't snap in place which makes it hard to keep them to stay put. One section somehow mysteriously separated from the other while the cement was curing. I doubt they would’ve separated had there been a snap that held them together. I could’ve glued them but the ‘tongue and grove’ is so small that I doubt it would’ve helped. The product is made of rigid plastic and looks good, but the design behind connecting them together failed miserably. If the pitch of your base isn’t perfectly even there will be a good chance that the sections will not stay fully seated and they will pop up. I would’ve given the product 4 or 5 stars had they snapped together and had some way of keeping them from popping out of the ground or moving around while the cement cures. Maybe some tabs with a hole on the bottom so you could drive a stake through or something. I’ll probably end up ripping it out next year and redo it using another product or keep looking for a contractor to do it.
by
    6 found this review helpful
    Durable, easy to assemble and install. Connected easily to flex drain tube. Had a washout area in...
    Durable, easy to assemble and install. Connected easily to flex drain tube. Had a washout area in our flowerbed that was being caused by the run-off of our neighbor's driveway. Installed this along the fence line and ran a flex tube into our yard with a pop-up. Problem solved.
    by
    • Verified Purchase
    • Recommended
    7 found this review helpful
    Very well designed to be connected.
    Very well designed to be connected.
    by
    • Verified Purchase
    • Recommended
    Trench drain
    The drain is good but the top grate is a little light. It is only good for light wheel loads like cars or a pickup truck.
    by
    • Verified Purchase
    • Recommended
    Working as expected....
    Working as expected.
    by
    • Verified Purchase
    Too flexible to secure the pieces together. Returned....
    Too flexible to secure the pieces together. Returned.
    by
    • Verified Purchase
    Showing 1-10 of 275 reviews
