Internet #306597839

Model # FCM 2246 2005CH00

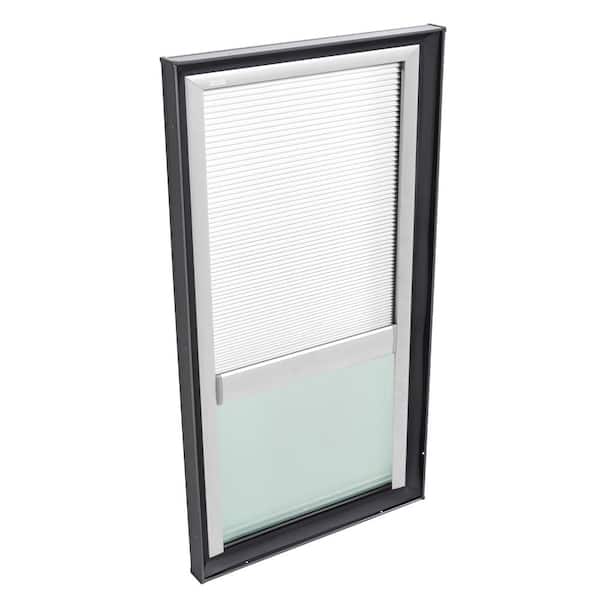

22-1/2 in. x 46-1/2 in. Fixed Curb Mount Skylight w/ Tempered Low-E3 Glass & White Manual Room Darkening Blind

$ 467 00
Loading Options

Frequently Bought Together

Frequently Bought Together

Product Overview

VELUX FCM fixed curb mount skylights are ideal for replacing existing curb mount skylights, including old plastic bubble skylights. This model comes with a factory-installed room darkening blind that boosts energy performance up to 40%. The double-pleated blind is designed to darken rooms when desired, making it ideal for bedrooms, entertainment rooms, or any other space where light control is important. FCM skylights can be installed on a flat roof at 0 up to a 60 roof pitch on a site-built curb. VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life, all while maintaining privacy.

Product Overview

Model #: FCM 2246 2005CH00
Internet #: 306597839

VELUX FCM fixed curb mount skylights are ideal for replacing existing curb mount skylights, including old plastic bubble skylights. This model comes with a factory-installed room darkening blind that boosts energy performance up to 40%. The double-pleated blind is designed to darken rooms when desired, making it ideal for bedrooms, entertainment rooms, or any other space where light control is important. FCM skylights can be installed on a flat roof at 0 up to a 60 roof pitch on a site-built curb. VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life, all while maintaining privacy.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand VELUX VELUX VELUX VELUX
Name 22-1/2 in. x 22-1/2 in. Fixed Curb-Mount Skylight with Impact Low-E3 Glass 22-1/2 in. x 46-1/2 in. Fixed Curb Mount Skylight w/ Tempered Low-E3 Glass & White Manual Room Darkening Blind 22-1/2 in. x 46-1/2 in. Fixed Self Flashed Skylight w/ Tempered Low-E3 Glass & Classic Sand Manual Light Filtering Blind 22-1/2 in. x 46-1/2 in. Fixed Self Flashed Skylight w/ Tempered Low-E3 Glass & White Solar Powered Light Filtering Blind
Price
$276.23
$467.00
$578.64
$727.00
Ratings (689) (409) (92) (92)
Product Width (in.) 27.375 27.375 24.19 24.19
Product Height (in.) 27.375 51.375 48.19 48.19
Skylight Mounting Type Curb Mount Curb Mount Self Flashed Self Flashed
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
3
Product Height (in.)
51.375
Product Width (in.)
27.375
Rough Opening Height (In.)
46.5
Rough Opening Width (In.)
22.5

Details

Cladding Type
Aluminum
Exterior Color/ Finish
Neutral Gray
Exterior Color/Finish Family
Gray
Features
Argon Gas Insulated,Light Transmittal,Pre-installed Blind
Frame Material
Aluminum
Glass Type
Energy Efficient Glass,Insulating Glazing Units,Low-E Glass,Tempered Glass,Tinted Glass
Included
Blind,Hardware
Interior Color/Finish Family
White
Maximum Roof Pitch (degrees)
60
Minimum Roof Pitch (degrees)
0
Product Weight (lb.)
40.6lb
Returnable
180-Day
Skylight Mounting Type
Curb Mount
U-Factor
0.45
UV Protection (%)
95.2

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
10-year limited

Specifications

Dimensions

Product Depth (in.)
3
Product Height (in.)
51.375
Product Width (in.)
27.375
Rough Opening Height (In.)
46.5
Rough Opening Width (In.)
22.5

Details

Cladding Type
Aluminum
Exterior Color/ Finish
Neutral Gray
Exterior Color/Finish Family
Gray
Features
Argon Gas Insulated,Light Transmittal,Pre-installed Blind
Frame Material
Aluminum
Glass Type
Energy Efficient Glass,Insulating Glazing Units,Low-E Glass,Tempered Glass,Tinted Glass
Included
Blind,Hardware
Interior Color/Finish Family
White
Maximum Roof Pitch (degrees)
60
Minimum Roof Pitch (degrees)
0
Product Weight (lb.)
40.6lb
Returnable
180-Day
Skylight Mounting Type
Curb Mount
U-Factor
0.45
UV Protection (%)
95.2

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
10-year limited

Questions & Answers

Is the curb included with the skylight, or is that something the installer has to build? Are ther...

Is the curb included with the skylight, or is that something the installer has to build? Are there pre-built curbs sold?
Asked by: lalilulelo
No, the curb is not included.
Answered by: Communityanswer
Date published: 2018-05-21

Is this Opaque Glass, If not can you recommend which model has it. Thank you

Is this Opaque Glass, If not can you recommend which model has it. Thank you
Asked by: Roni
I have 2 large opaque Velux Skylights, so I know you can order them. Contrary to what some people might believe, the opaque glass fills the room with a nice bright light. I also have a smaller, clear glass skylight. When the sun is overhead, it beats in the clear glass and if you are sitting under it, it is kind if like being an ant under a magnifying glass. The light can be very hot, blinding and harsh and you can follow the position of the sun as it beats down on certain parts of the floor during the day. I am planning to replace it with an opaque sky light which does a nice job of diffusing the light and spreading it more evenly into the room. I believe there is an upcharge for the opaque, but it is well worth it and it eliminates the need for an expensive shade.
Answered by: Rick
Date published: 2019-08-24

I am replacing 2 fixed skylights, Do i MEASURE inside the frame or the out side of the skylight...

I am replacing 2 fixed skylights, Do i MEASURE inside the frame or the out side of the skylight I am taking out?
Asked by: Butch
The dinensions listed for Velux work with measurements taken on the OUTSIDE (ie roof side) frame for fit checking.
Answered by: EZBUILDZ
Date published: 2019-10-05

Used on metal or singled roof

Asked by: Sexy
You can install the FCM Skylight on both a metal and shingled roof. We also offer the ECL Flashing for a shingled roof deck. However, if you install these on a metal roof, you will need to manufacture your own flashing system. Thank you for choosing VELUX!
Answered by: VELUXCustomerServiceTeam
Date published: 2019-08-09
