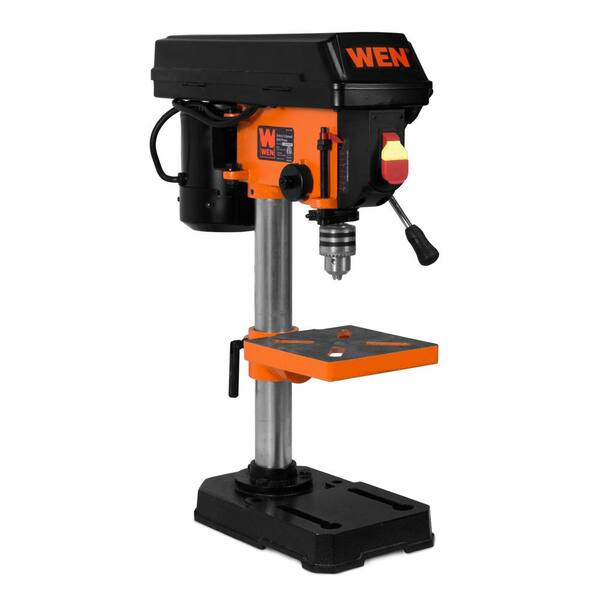

WEN 8 in. 5-Speed Drill Press
0044459042082

WEN

8 in. 5-Speed Drill Press

  • Locking linear depth stop for accurate drilling operations
  • 6-1/2 in. x 6-1/2 in. cast iron worktable is height adjustable
  • 5 speeds: 620, 1100, 1720, 2340, 3100
$ 76 79
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Locking linear depth stop for accurate drilling operations
  • 6-1/2 in. x 6-1/2 in. cast iron worktable is height adjustable
  • 5 speeds: 620, 1100, 1720, 2340, 3100
WEN 8 in. swing, 5-speed drill press is small but powerful enough to drill through metal, wood, plastics, and other materials. When you need accurate and precise holes, this tool does the job more conveniently and precisely than a handheld drill. With a full 2 in. of spindle travel, this drill press is the perfect companion for both the job and the garage. The compact design makes transportation and storage easier than ever. The rigid base and frame consists of cast iron to ensure durability and accurate drilling. Its powerful induction motor features ball bearings for an extended life, all culminating in a smooth and balanced performance even at high speeds. The 1/2 in. chuck with JT33 spindle taper gives you versatility with a variety of bits. Worktable bevels 45 degree left and right for angled drilling. The base contains predrilled holes for mounting onto a bench or work stand. The slotted table allows for mounting clamps and vises for effective work-holding. And because its a WEN product, your drill press comes backed by a two-year warranty, a nationwide network of skilled service technicians and a helpful customer phone line.
  • Includes a 1/2 in. keyed chuck and onboard key storage
  • Operates at 5 different speeds: 740, 1100, 1530, 2100, 3140 RPM
  • Spindle travels up to 2 in. with easy to read, locking linear depth stops for accurate and repeatable drilling operations
  • Durable 1/3 HP induction motor develops ample torque and power
  • 6-1/2 in. x 6-1/2 in. worktable is height adjustable and bevels up to 45 degree left and right
  • 2-Year Warranty, 90 Day Commercial



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Locking linear depth stop for accurate drilling operations
  • 6-1/2 in. x 6-1/2 in. cast iron worktable is height adjustable
  • 5 speeds: 620, 1100, 1720, 2340, 3100
Model #: 4208
Internet #: 204853910

WEN 8 in. swing, 5-speed drill press is small but powerful enough to drill through metal, wood, plastics, and other materials. When you need accurate and precise holes, this tool does the job more conveniently and precisely than a handheld drill. With a full 2 in. of spindle travel, this drill press is the perfect companion for both the job and the garage. The compact design makes transportation and storage easier than ever. The rigid base and frame consists of cast iron to ensure durability and accurate drilling. Its powerful induction motor features ball bearings for an extended life, all culminating in a smooth and balanced performance even at high speeds. The 1/2 in. chuck with JT33 spindle taper gives you versatility with a variety of bits. Worktable bevels 45 degree left and right for angled drilling. The base contains predrilled holes for mounting onto a bench or work stand. The slotted table allows for mounting clamps and vises for effective work-holding. And because its a WEN product, your drill press comes backed by a two-year warranty, a nationwide network of skilled service technicians and a helpful customer phone line.

  • Includes a 1/2 in. keyed chuck and onboard key storage
  • Operates at 5 different speeds: 740, 1100, 1530, 2100, 3140 RPM
  • Spindle travels up to 2 in. with easy to read, locking linear depth stops for accurate and repeatable drilling operations
  • Durable 1/3 HP induction motor develops ample torque and power
  • 6-1/2 in. x 6-1/2 in. worktable is height adjustable and bevels up to 45 degree left and right
  • 2-Year Warranty, 90 Day Commercial



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Compare Similar Products
Brand WEN Skil WEN RYOBI
Name 8 in. 5-Speed Drill Press 10 in. Portable Drill Press with Built-In Laser 10 in. Drill Press with Laser 10 in. Drill Press with Laser
Price
$76.79
$121.10
$148.31
$159.00
Ratings (310) (135) (360) (313)
Bench or Stationary Bench Bench Bench Bench
Chuck Capacity 1/2 In. 1/2 In. 1/2 In. 1/2 In.
Number of Speeds 5 5 5 5
Voltage (volts) 120 120 120 120
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
7.5
Product Height (in.)
22.9
Product Width (in.)
11

Details

360- Degree Swivel
No
Amperage (amps)
2.3
Bench & Stationary Tool Type
Drill Press
Bench or Stationary
Bench
Built-In Light
No
Chuck Capacity
1/2 In.
Chuck Key Storage
Yes
Color Family
Yellow
Condition
New
Cord Length (ft.)
6
Lockout Power Switch
Yes
Magnetic
No
Maximum Speed (rpm)
3100
Minimum speed (rpm)
620
Number of Speeds
5
Product Weight (lb.)
35lb
Returnable
90-Day
Spindle Travel
2
Tools Product Type
Power Tool
Voltage (volts)
120
Work Light
No

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
One year limited warranty of WEN products for home use with receipt (see page 31 of manual).

Specifications

Dimensions

Product Depth (in.)
7.5
Product Height (in.)
22.9
Product Width (in.)
11

Details

360- Degree Swivel
No
Amperage (amps)
2.3
Bench & Stationary Tool Type
Drill Press
Bench or Stationary
Bench
Built-In Light
No
Chuck Capacity
1/2 In.
Chuck Key Storage
Yes
Color Family
Yellow
Condition
New
Cord Length (ft.)
6
Lockout Power Switch
Yes
Magnetic
No
Maximum Speed (rpm)
3100
Minimum speed (rpm)
620
Number of Speeds
5
Product Weight (lb.)
35lb
Returnable
90-Day
Spindle Travel
2
Tools Product Type
Power Tool
Voltage (volts)
120
Work Light
No

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
One year limited warranty of WEN products for home use with receipt (see page 31 of manual).

Questions & Answers

Can you use bits that are designed to cut holes up to 1" in diameter? The hole of the table only looks about 1/2".

I guess as a beginner I was thinking that the bit would have to pass completely through the hole of the table of the drill press for accuracy. I see no problem with cutting holes up to 1/2 inch because from the picture it looks like the drill bit would pass through the piece of wood AND the hole of the drill press table. But what about when I want to cut a larger hole like 1" or 1-1/2" in diameter that needs to go all the way through the wood? Do I place another piece of wood under the piece that I want to cut? It kinda seems like that may be a solution so that the larger drill bit doesn't ram into the table of the drill press, which would damage both the bit and the table. But since I am a new learner at this I may be overthinking it. I was also wondering if there are other drill press tables that are inter-changable that have larger holes to accommodate larger bits, or is that even necessary? (please advise).
Asked by: Woods
Besides placing a sacrificial piece of wood under your project, yes, that does help with cleaner drill through holes, the table can also be rotated out of the way of the bit, clamp the object to the table, hang the object over the edge of the table, to save your hands from getting slammed if the bit bites, please use clamp. Typical beginner accident.
Answered by: David
Date published: 2018-12-21

Does this have a built in laser light?

Asked by: Matt
The WEN drill press does not have a light. I mounted mine on a table with locking casters, if I need better lighting I wheel the drill press to the better lighting.
Answered by: Woodworker
Date published: 2019-01-09

Is it possible with this drill press, to drill a bowling ball?

Asked by: Ttt
Anything is possible worth enough know how and patience. You would have to remove the stands and base... Extend the shaft to allow the bowling ball to fit. But I'm a firm believer anything is possible with a hammer and a welder
Answered by: Beast1957302
Date published: 2019-02-16

What is the distance from the bottom of the chuck to the top of the base if I move the table out ...

What is the distance from the bottom of the chuck to the top of the base if I move the table out of the way?
Asked by: BB7
From the top of Base(the stand) to tip of open chuck(without drill bit) is about 10-3/4".
Answered by: CommunityAnswer
Date published: 2019-02-22
  • y_2019, m_4, d_21, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_51
  • loc_, sid_204853910, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 41ms
  • QUESTIONS, PRODUCT

Customer Reviews

8 in. 5-Speed Drill Press is rated 4.3 out of 5 by 310.
Rated 5 out of 5 by from I don't often need a drill press for my woodworking projects, but when I do, I'm glad I purchased... I don't often need a drill press for my woodworking projects, but when I do, I'm glad I purchased this one. I have limited space in my wood shop so all of my tools (table saw, router table, band saw, radial arm saw, etc) are table top. By the way, I'm not making just small items. I've made adjustable shelves, coffee tables, colonial desks, entertainment centers, built-in wall units! Easy to store, easy to move, easy to use. For its' size, the Wen 5 speed is a pretty tough drill press. I've used it for tough items like oak as well as metal and it does an excellent job. I've found that I don't need a laser centering option. But if you do, pay a little extra for the Wen with that option. I've used standard bits, step bits, flat wood boring bits (don't forget to clamp the item down), and forstner bits and never had a problem. The key is to take your time and let the bit do the work. But that's the rule with any power tool. If you think you need an expensive drill press, think again.
Date published: 2017-07-11
Rated 5 out of 5 by from This drill press is in my opinion worth every dollar I paid for it. Its relatively quiet and has ... This drill press is in my opinion worth every dollar I paid for it. Its relatively quiet and has the accuracy, power and quality that I really didnt expect. Ive used it to drill steel, cast iron, aluminum as well as wood. Its not a super heavy duty drill for steel but with sharp drill bits and reasonable care while drilling this drill can do most jobs. I normally only work with wood but I do on occasion drill other materials. It will drill steel a lot easier and more accurately than my power hand drill.
Date published: 2019-01-30
Rated 5 out of 5 by from I purchased this drill press specifically for kydex holster making, but has been used for so much... I purchased this drill press specifically for kydex holster making, but has been used for so much more already. The platform is stable and the platform is table for angles or flat drilling. I did have a slight issue with the depth adjustment where the two nuts were bound together and was difficult to pry them apart, but once I did the depth adjustment was working as designed. It's perfect for the DIYer, as I've used this for several house projects around the house and I've had zero issues. For the price, even compared to cheaper competitors, this beat the price and comes with a better warranty through WEN. Also, the assembly was straight forward and easy to do, and having a 3rd hand would make it super easy but by yourself is doable.
Date published: 2019-03-27
Rated 4 out of 5 by from Good utility, small size I have a small shop in the golf cart extension to my garage so no room for a larger drill press. The WEN 8 fits nicely bolted to the top of a tall bar stool, and I can easily move it around. It's a little too heavy to "store on a shelf" as some ads say. The standard features, operation and power are all satisfactory for home or hobby work. The standard key-chuck works fine but for convenient drill changes I have installed the Grizzly 3/8' keyless chuck G8233. This chuck takes drills down to 1/32" and the press has enough precision to operate with them. With the right setup the press handles larger work, most common woods and metals. It is not a piece of industrial equipment so be aware of common-sense limitations. For my small shop this unit works well and gives me reasonable precision and repeatability for my home, auto and hobby work.
Date published: 2016-04-08
Rated 1 out of 5 by from Very Bendy Breaky Junk! Depth stop is NOT accurate because of flexible plastic part! Depth stop ... Very Bendy Breaky Junk! Depth stop is NOT accurate because of flexible plastic part! Depth stop is attached to a plastic lock collar on the quill that is very bendy! this means that the depth stop is not accurate because you can flex it probably an 1/8" or more after the depth stop set point. OOPS! I just broke it showing how much it bends! that was easy to break. lol why make every thing else out of metal but this critical part out of plastic! Don't buy this product.
Date published: 2019-04-16
Rated 4 out of 5 by from Easy to assemble. Solid material. Good power.Somewhat of a small base. Drill wobbles slightly, ok... Easy to assemble. Solid material. Good power.Somewhat of a small base. Drill wobbles slightly, ok for what I use it for. Whish the drill platform and motor head had some king of centering alignment mark for them. Over all, a good value for the money.
Date published: 2019-02-19
Rated 2 out of 5 by from I didn’t expect much but was disappointed. The column was... I didn’t expect much but was disappointed. The column was bulged bulged making it impossible to assemble. This turned my focus to how cheaply it’s built so I decided the best solution was to return it and avoid the frustration.
Date published: 2019-02-19
Rated 2 out of 5 by from The drill was really short. I was going to use... The drill was really short. I was going to use it for pen blanks, but it was not big enough. It was easy to assemble and seemed decent, just way too small. I had to return it- which was no trouble
Date published: 2019-02-12
