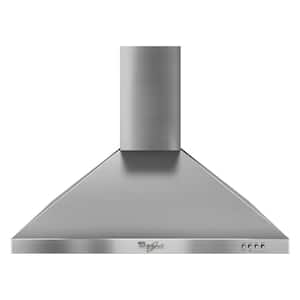

Gold 30 in. Convertible Range Hood in Stainless Steel

  • 400 CFM centrifugal blower with 3-speed push button control
  • Dishwasher-safe mesh filters and incandescent cooktop lighting
  • Convertible to recirculating/ductless installation (kit required)
  • View More Details
caret

Product Details

This 30 in. vented hood clears the air with a 400-CFM blower and 6 in. round duct. The stainless steel construction gives it elegance and performance, while incandescent lights ensure you can see your Cooktop clearly. Dishwasher-safe grease filters make cleanup a breeze, and it has an optional chimney extension kit.
  • Convertible wall-mount range hood lets you choose between standard and ductless installation with the optional, separately purchased recirculating kit, part number W10349327
  • Push-button controls are easy to use and let you quickly cycle through three fan speeds and toggle the light on and off
  • 3-Speed variable fan lets you adjust the ventilation to fit your needs
  • 400-CFM motor has enough power to keep your kitchen clear of smoke and odors
  • Vertical exhaust whisks smoke and odors out of your kitchen
  • Metal mesh grease filter is removable and dishwasher safe for easy cleaning
  • Included incandescent light illuminates your cooktop, so it is always easy to see what you are doing
  • When installed as an externally vented hood, a 6-in. round duct is required
  • Optional, separately purchased, chimney extension kit, part number W10337357 is available to order
  • Limited 1-year warranty
  • Product available for home delivery only. Installation is not offered at time of delivery; check with your local The Home Depot store for installation options
  • Click here to shop for more Whirlpool Appliances
  • Click here for more information on Electronic Recycling Programs
caret

Specifications

Dimensions: H 42.06 in, W 30 in, D 20 in

Specifications

Dimensions

Product Depth (in.)
20 in
Product Height (in.)
42.06 in
Product Width (in.)
30 in
Range Hood Size (Width)
30 in.

Details

Amperage (amps)
15
Appliance Series
Whirlpool Gold
Appliance Type
Range Hood
Color/Finish
Stainless Steel
Color/Finish Family
Stainless Steel
Commercial/Residential
Residential
Control Type
Push button
Exhaust Vent Location
Rear, Top
Features
Dishwasher Safe Metal Mesh Filter, Lighted, Removable Grease Filter(s)
Included
Bulb(s), Fan, Filter(s), Hardware
Minimum Air Flow Capacity (CFM)
100
Mounting Type
Wall Mount
Returnable
Non-Returnable
Vent Install Type
Convertible
Vent Material
Metal
Voltage (volts)
120
Wattage (watts)
40 W

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Limited 1-year
caret

Questions & Answers

38Questions
caret
Q:what is the depth of this hood. and which home depot in R I has this hood
by|Nov 15, 2016
1 Answer
Answer This Question

A:  ede, this model is discontinued. There is a similar model GXW7330DXS which is 20" deep. Please click on the "Use and Care" Guide on this product page for detailed information.

by|May 4, 2023
    caret
    Q:what is the cost of the optional duct extension kit W10337357 for SKU#295424
    by|Sep 10, 2016
    1 Answer
    Answer This Question

    A:  Thank you for your recent inquiry with The Home Depot. Order part W10337357 from your local The Home Depot store. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot.

    by|Sep 11, 2016
    caret
    Q:Should the vent transition piece be purchased separately? I do not have one in my box.
    by|Jul 8, 2016
    1 Answer
    Answer This Question

    A:  Please click on the "Instructions / Assembly" on this product page for detailed installation information. The ducting material required is standard ducting material an is purchased separately.

    by|May 3, 2023
      caret
      Q:Can I vent it out the wall instead of the ceiling
      by|Jul 4, 2016
      1 Answer
      Answer This Question

      A:  Please click on the "Instructions / Assembly" link on this product page for detailed venting options. Yes you can vent it out the back wall. See Wall venting instructions in the manual for details.

      by|May 3, 2023
        1 found this answer helpful
        Showing 1-4 of 38
        caret

        Customer Reviews

        4.2 out of 5
        (43)
        • 4.2
          out of 43 reviews
        • 80% recommend this product
        Filter by:
        Showing 1-10 of 43 reviews
        Look & Work Excellent
        I have this installed as part of my kitchen remodel. It really looks beautiful and works great. The fan (it looks more like the blower in my furnace) is very powerful. It's a little bit noisy when I put it in maximum speed (like super-charge!) that I only used occasionally in a short period to get the heavy smoke out. Otherwise it's very quite. The lights are just right from the back. The dual filters are easy to remove for cleaning. Both my wife & I love it.
        by
          • Recommended
          This range hood fan makes a statement in my cottage kitchen.
          Install was much easier than anticipated and my brother-in-law made a wooden facing at the ceiling that tied in nicely with the molding and cabinetry. In a small kitchen, the fan makes a nice replacement for the cabinets and built in microwave that are traditionally placed over the range.
          by
          • DIY
          • Verified Purchase
          • Recommended
          7 found this review helpful
          Looks amazing!
          We got this hood at a great price and it looks amazing. All the features work well too! So happy with this purchase!
          by
          • DIY
          • Verified Purchase
          • Recommended
          13 found this review helpful
          Very efficient
          [This review was collected as part of a promotion.] I bought a month ago and it has cut my drying time in half!
          by
            • Recommended
            Looks great but missing in the performance side
            [This review was collected as part of a promotion.] The general look of the hood in the kitchen is great. The stainless steel doesn't show too much of the fingerprints. But when turned on, then things don't look that great. The 2 lights are somewhat dim and located all the way to the back. If the idea was not to create shadows over the pots, is OK, but when cooking to the front of my range I don't get sufficient light. I have the hood venting to the outside, but it only really pulls the smoke when used in the highest, and loudest setting, the other 2, low and medium, pretty much don't suck anything. The fan design needs to be reworked so it pull more air at slower speeds. Overall is an OK fan.
            by
              Very nice
              [This review was collected as part of a promotion.] Easy to install, very quiet and an overall nice look to a kitchen
              by
                • Recommended
                Gets the job done
                Looks good and works good. Can't go wrong
                by
                • Verified Purchase
                • Recommended
                It really SUCKS (a good thing)
                [This review was collected as part of a promotion.] We bought this for the kitchen remodel/expansion and we are not disappointed. We had the microwave over the stove and that was the only ventilation we had when cooking. Not so good when it's overpowering smells like curry or even garlic. This hood is a great investment. We did need to modify the top so it would be mounted higher than normal. Looks expensive but super affordable!
                by
                  • Recommended
                  Disappointed
                  [This review was collected as part of a promotion.] The lights are not bright enough; the fan speeds too noisy
                  by
                    I wish
                    [This review was collected as part of a promotion.] I wish that the lighting over the would have been stronger. Also, it is very noisy when the fan mode is on.
                    by
