ILG8M24-70EC

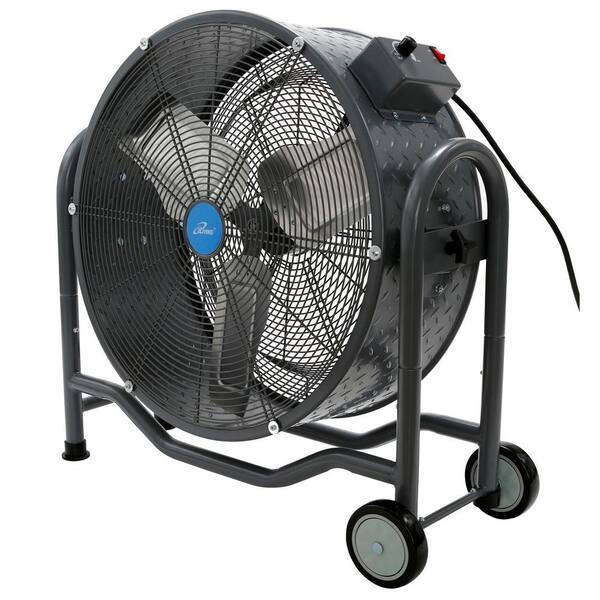

24 in. BLDC Air Circulator High Velocity Floor Fan, 115-Volt

$29699
Apply Now
Pay $271.99 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
caret

Product Details

This iLIVING 24 in. (61 cm) BLDC mobile fan is designed to move large volumes of air; ideal for offices, factories, warehouses, loading docks and auto shops. Its brushless DC electric motor has a fan speed that ranges from 10 CFM to 5800 CFM, allowing you to adjust the air circulation to your desired power, while still being cost and energy efficient, using only 210-Watt at maximum speed. This fan has a 3-blade aluminum propeller with a built-in 360° rotation feature. The fan housing is constructed of heavy-duty steel with powder-coated wire guards in compliance with U.S. OSHA Standard 1910.212, 1/2 in. opening requirements. BLDC motor runs at continuous variable speeds. Specs- 115-Volt, 60 Hz, 210-Watt, Phase 1, LOW speed of 10 CFM and HIGH speed of 5800 CFM, Air Velocity (FPM) at 20 ft. 390/340, Motor HP: 1/2, Motor RPM: 200-1150, Operating Amps: 3.1, Fan RPM: 200-1150, Industrial Applications, Partially Assembled, Sound Level: 5-68 dB, Max. Ambient Temp. 104°F (40°C), Totally Enclosed Air-Over-Motor Enclosure, Class B Motor Insulation, Auto Thermal Protection, Bearing Type Ball, 28 in. H x 34-1/4 in. W x 19-3/4 in. D, 9 ft. (2.7 m) cord, NEMA plug 5-15P, 3 Aluminum Blades, Steel Housing, 7 in. (17.8 cm) Plastic and Rubber Casters, Steel Guard, Standards: UL/CSA/OSHA.
  • Brushless DC electric motor permits variable speeds for customizable air circulation
  • 24 in. 3-blade aluminum propeller with built in 360° rotation feature
  • UL and OSHA Compliant; OSHA Standard 1910.212, 1/2 in. opening requirements
  • BLDC motor allows you to adjust speeds between a LOW of 10 CFM to a HIGH of 5800 CFM
  • Equipped with 7 in. plastic and rubber caster wheels for easy portability
  • 1-Year Limited Parts and Components Warranty
  • Quick and easy assembly
  • Comes with a 9 ft. power cord for convenience
  • Commercial grade product that is ideally suited for use in warehouses, auto shops, and factories
  • 110/120-Volt Plug fits into any standard wall outlet
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

1Questions
caret
Q:Product over view states "HIGH speed of 5800 CFM", then under details it says "9500 CFM". So whic...
by|Apr 26, 2021
1 Answer
Answer This Question

A:  The correct CFM should be 5800

by|Sep 19, 2022
    2 found this answer helpful
    Showing 1-1 of 1
    caret

    Customer Reviews

    4.5 out of 5
    (9)
    • 4.5
      out of 9 reviews
    • 50% recommend this product
    Filter by:
    Showing 1-9 of 9 reviews
    nice modern fan
    I use this fan in my 2 car garage in Las Vegas and it keeps me just cool enough. I bought this for the brushless dc motor, a feature that is found in very few large fans. I was debating between this model and a larger fan with a more conventional motor. this one seems just enough, but would be great if the manufacturer could offer a 3 foot bladed version.
    by
      • Recommended
      1 found this review helpful
      by
      • Verified Purchase
      Stopped Working
      Took the fan out of the box put it together and plugged it in. Worked for 45 minutes then started making a grinding noise and stopped. I put it right back in the box and returned it. Bought another fan with regular voltage from another big box store for 1/2 the price and that one works fine.
      by
        My fan came with a little dent in the top...
        My fan came with a little dent in the top of it, but that just did not bother me. Nothing a screwdriver couldn't bend back out. :) It was easy putting the wheels on it. Fan does what it is suppose to do--it moves air and moves it well. I run it at about the halfway point, and it's still fairly quiet too. No complaints here.
        by
        • Verified Purchase
        1 found this review helpful
        Works good, great mobility. Good price....
        Works good, great mobility. Good price.
        by
        • Verified Purchase
        1 found this review helpful
        The Iliving fan is powerful enough for what I need...
        The Iliving fan is powerful enough for what I need but I was hoping the air disbursement would be a little more centralized. I am currently using under a carport that is mainly open for air movement for my 5 dogs. I had to move it a little closer for good circulation. I originally had a Max Air brand air mover that hit directly in the location I needed it.
        by
        • Verified Purchase
        1 found this review helpful
        Rating provided by a verified purchaser...
        Rating provided by a verified purchaser
        by
        • Verified Purchase
        1 found this review helpful
        Awesome fan I'm very happy with it so far exceeded...
        Awesome fan I'm very happy with it so far exceeded my expectations
        by
        • Verified Purchase
        1 found this review helpful
        It is quiet and does the job....
        It is quiet and does the job.
        by
        • Verified Purchase
        1 found this review helpful
        Showing 1-9 of 9 reviews

        Frequently Bought Together

        +
        +
        Price:
        $29699

        Compare Similar Industrial Fans

        current product
        24 in. BLDC Air Circulator High Velocity Floor Fan, 115-Volt
        30 in. Heavy Duty 2-Speed Direct Drive Drum Fan24 in. Variable Speed Drum Fan
        BrandiLIVINGCommercial ElectricXPOWER
        Name24 in. BLDC Air Circulator High Velocity Floor Fan, 115-Volt30 in. Heavy Duty 2-Speed Direct Drive Drum Fan24 in. Variable Speed Drum Fan
        Price
        $29699
        $29900
        $39900
        Ratings
        (9)
        (830)
        (2)
        Fan diameter (in.)24 in30 in24 in
        Fan Diameter (in.)21-2526-3021-25
        Indoor/OutdoorIndoorIndoorIndoor
        Fan FeaturesGrounded,High Velocity,Slip-Resistant Feet,WheelsGrounded,Slip-Resistant Feet,WheelsGrounded,High Velocity,Slip-Resistant Feet,Wheels
        Power TypePlug-InPlug-InPlug-In
        Product Height (in.)28 in33.75 in29 in
        Number of Fan SpeedsVariable Speeds1-3 SpeedsVariable Speeds
        Plug TypeParallel Parallel
        Cord Length (ft.)9 ft7.5 ft10 ft
        View ProductView ProductView Product
