- Powerful 3 HP motor provides 1,543 cu. ft./min. airflow
- HEPA filter captures particles as small as 0.3 micron
- Vacuum pressure gauge enables convenient monitoring of operation
- View More Details
Product Details
About This Product

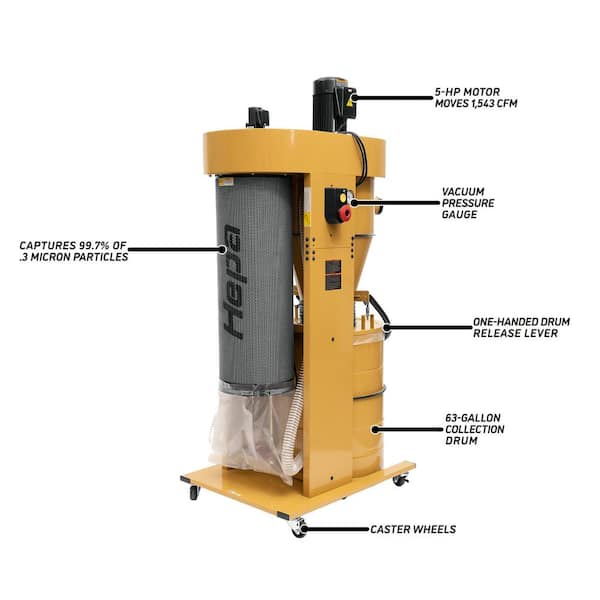

Introducing the Powermatic PM2200 Cyclonic Dust Collector with HEPA filtration. The PM2200 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stables base for quiet operation and minimal vibration. The Powermatic Cyclone is only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.97% of all particles at 0.3 micron. With other market leading features such as a 1-handed drum release lever, vacuum pressure gauge and frameless dust bag vacuum retention, the Powermatic PM2200 Cyclone Dust Collector is an innovative addition to the Powermatic family.
Highlights
- Proprietary Auto-Cleaning HEPA filter technology for better filtration and longer filter life
- HEPA filter collects 99.97% of all particles passing through as small as 0.3 micron
- Powerful 3 HP motor moves 1,543 cu. ft. if air per minute
- Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
- One-handed drum release allows for simple removal of the drum for bag changes
- Vacuum pressure gauge for greater user feedback
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 85.25 in, W 31.875 in, D 54.5 in
Dimensions
Interior Hose Diameter (in.) | 8 in | Product Depth (in.) | 54.5 in |
|---|---|---|---|
Product Height (in.) | 85.25 in | Product Width (in.) | 31.875 in |
Details
Bag Capacity/Dry Volume (cu. ft.) | 55 cu ft | Color Family | Yellow |
|---|---|---|---|
Decibel (Sound) Rating | 78 dBA | Dust Collection Product Type | Dust Collector |
Dust Collector Type | Two Stage | Filter Type | HEPA |
Horsepower (HP) | 3 hp | Maximum Air Flow Capacity (CFM) | 1300 CFM |
Power Tool Features | No Additional Features | Product Weight (lb.) | 343 lb |
Returnable | 90-Day | Tools Product Type | Power Tool |
Warranty / Certifications
Manufacturer Warranty | 5 Years |
|---|
Questions & Answers
Customer Reviews
5 out of 5
Compare Similar Items
Horsepower (HP) | ||
|---|---|---|
3 hp | 3 hp | 5 hp |
Maximum Air Flow Capacity (CFM) | ||
1300 CFM | 1891 CFM | 2184 CFM |
Dust Collector Type | ||
Two Stage | Two Stage | Two Stage |
Decibel (Sound) Rating | ||
78 dBA | 86 dBA | 86 dBA |
