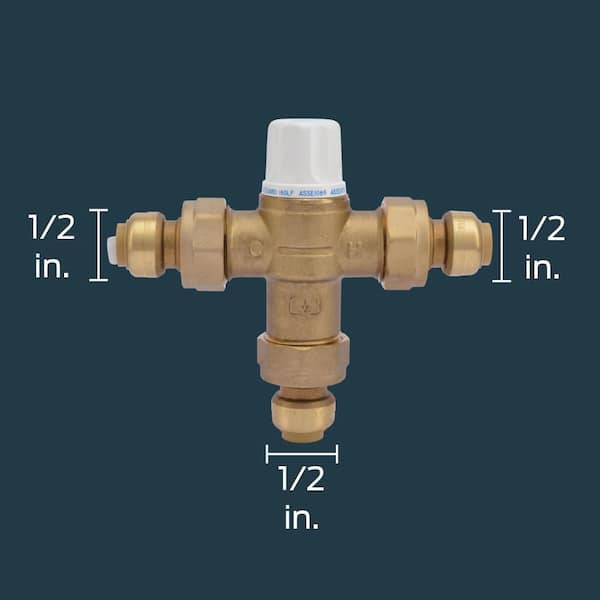

1/2 in. Push-to-Connect Brass Heat Guard 160 Thermostatic Mixing Valve
- Push to Connect system, quick and easy installation in seconds
- Works on any combination of Copper, PE-RT, CPVC, PEX Pipe
- Lead free DZR brass construction for durability and reliability
- View More Details
Product Details
About This Product
The SharkBite Heat Guard 160 is a superior performance Thermostatic Mixing Valve that mixes hot water with cold to deliver tempered water at a constant temperature. The SharkBite Heatguard 160 is intended to supply controlled temperature hot water to any outlet requiring a higher level of protection. The valve is third party listed for individual point-of-use applications. The SharkBite Heatguard 160 features a rapid response thermostatic element for superior control. The thermostatic element senses the outlet water temperature and reacts to maintain a constant delivery temperature even under changing flows or variations in supply temperatures or pressures. The valve also reduces the outlet flow to a trickle in the event of a cold water supply failure.
Highlights
- Instant push-fit connection for increased ease of use
- No soldering, glue or tools required
- Accurate temperature control, even under varying supply conditions
- Robust, low complexity construction means superior reliability and improved user safety
- 1/2 in Pipe Insertion Depth = 15/16 in.
- Shop all SharkBite Fittings
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 2.20 in, W 5.62 in, D 5.21 in
Dimensions
Inlet Diameter (In.) | 1/2 | Outlet Diameter (In.) | 1/2 |
|---|---|---|---|
Product Depth (in.) | 5.21 in | Product Height (in.) | 2.20 in |
Product Length (in.) | 5.21 in | Product Width (in.) | 5.62 in |
Details
Application | Potable Water | Compatible Pipe Material | Multi-Purpose |
|---|---|---|---|
Connection | PTC x PTC | Features | Adjustable, Lead Free, Removable |
Indoor/Outdoor | Indoor | Material | Brass |
Maximum Pressure (PSI) | 200 | Maximum Working Temperature (F) | 200 |
Pack Size | 1 | Product Weight (lb.) | 1.95 lb |
Returnable | 90-Day | Valve Type | Thermostatic |
Warranty / Certifications
Manufacturer Warranty | For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242. |
|---|
Questions & Answers
Customer Reviews
4.1 out of 5
5
8
4
0
3
1
2
0
1
2
Compare Similar Items
Connection | |||
|---|---|---|---|
PTC x PTC | PTC x PTC x PTC | Sweat | Female Pipe Thread |
Inlet Diameter (In.) | |||
1/2 | 1/2 | 1/2 | 1/2 |
Application | |||
Potable Water | Potable Water | Potable Water | Potable Water |
Compatible Pipe Material | |||
Multi-Purpose | Multi-Purpose | Multi-Purpose | Multi-Purpose |
Outlet Diameter (In.) | |||
1/2 | 1/2 | 1/2 | 1/2 |
Related Searches
Related Products
1/2 in. Push-to-Connect Brass Heat Guard 110-D Thermostatic Mixing Valve
The SharkBite Heat guard 110-D is a Temperature Actuated Mixing Valve that mixes hot water with cold to deliver tempered water at a controlled temperature to 120° F maximum. The Heat guard 110-D is designed to assist in the prevention of scalding. The SharkBite Heat guard 110-D valve delivers water at a maximum of 120° F, allowing the heater to be set at 140° F or higher, thus providing a greater effective volume of hot water.
1/2 in. Push-to-Connect Brass Heat Guard 110-D Thermostatic Mixing Valve
The SharkBite HG-110D Thermostatic Mixing Valve mixes hot water with cold to deliver tempered water at a controlled and safe temperature of 120°F. In addition to protecting your home from scalding hot water the valve will increase the Hot Water Systems capacity, delivering more usable hot water throughout your home. In addition by allowing the Water Heaters set temperature to be increased to 140°F you can protect your home from the number one cause of legionella bacteria growth; water stored at temperatures of 68°F to 113°F; this bacteria cannot survive at temperatures of 140°F and higher. Integrated SharkBite Connections work with Copper, PEX, or CPVC in any combination and require no glue, tools, unions or solder. Get the SharkBite HG-110 Mixing Valve and protect your home from scalding, increase hot water system capacity, and protect against legionella bacteria.
1/2 in. HG-110 CPVC Thermostatic Mixing Valve
Triple-listed thermostatic mixing valve delivers water at a safe 120° F (49° C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140° F (60° C) or higher which aids in preventing the growth of Legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. Robust, low complexity construction. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each valve is factory set and locked to a maximum 120° F (49° C). Outlet temperature range: 85° F - 130° F (29° F - 54° C).
3/4 in. HG-110 Male Threaded Thermostatic Mixing Valve
The HG110-D, a triple-listed thermostatic mixing valve, delivers water at a safe 120°F (49°C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140°F (60°C) or higher which aids in preventing the growth of Legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. Robust, low complexity construction. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each Heatguard valve is factory set and locked to a maximum 120°F (49°C). Adj. Outlet temperature range: 85-130°F (29-54°C).
