Checking Table Alignment



When you first get your saw, plan on checking all the settings to make sure they are accurate. The easiest way to check is to make some sample cuts and check their accuracy. All cuts, however, depend in one way or another on the blade and the miter gauge slot being parallel. Before you make any test cuts, check to make sure the blade and slot are parallel. Start by measuring the distance from the slot to a tooth on the blade—once when the tooth is at the back of the blade opening and once after you’ve turned the blade so the tooth is at the front. If the measurements aren’t equal, adjust as directed by the manufacturer.


Step 1: Make the first measurement

Step 1: Make the first measurement

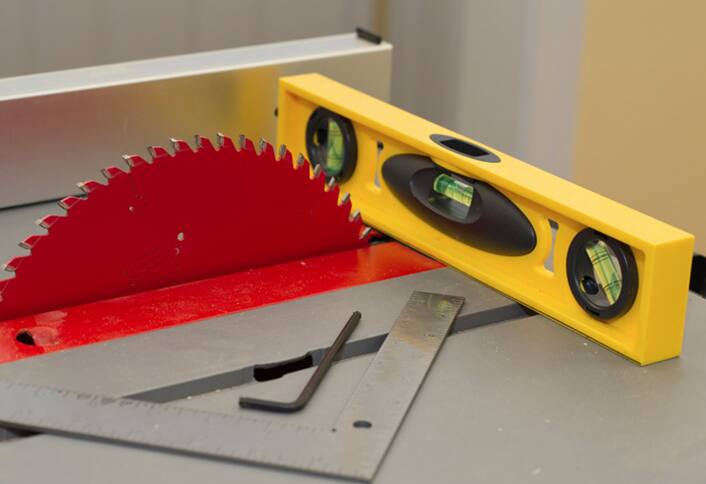

Make a mark on a tooth, and spin it by hand to the other side of the blade opening. Set your combination square so that the end of the ruler just touches the marked tooth. You may have to hold the blade to keep it from spinning out of position, but don't flex it toward the ruler. Rotate the blade forward, and check to see if the measurement is the same at the front of the opening.



Step 2: Make any necessary adjustments

Step 2: Make any necessary adjustments

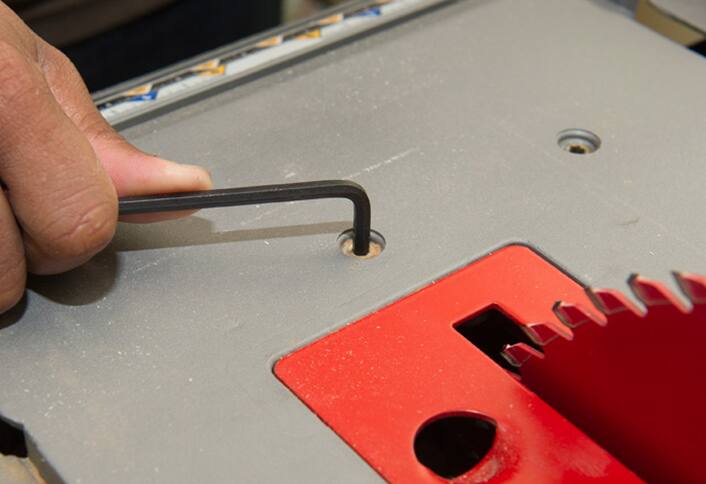

If the measurements aren't equal, adjust the way the blade sits in the table. On this saw, you loosen a hex-head alignment screw, push the blade into position, and then tighten the screw.



Making Sure the Rip Fence is Parallel to the Blade

Making Sure the Rip Fence is Parallel to the Blade

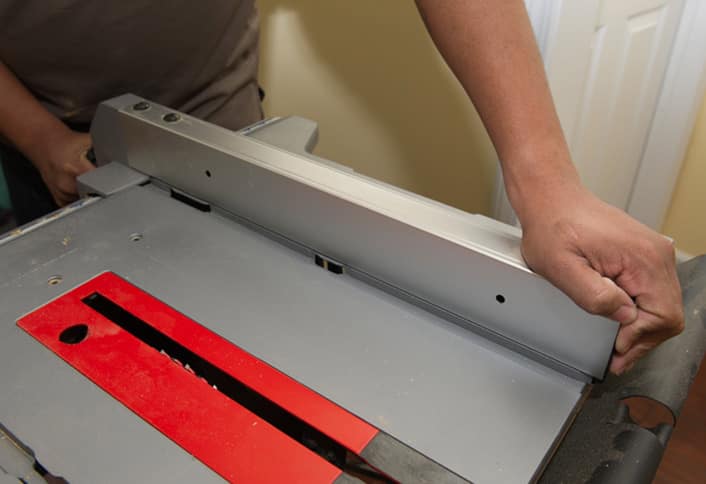

Safe and accurate rip cuts depend on the rip fence being parallel to the blade. To check the alignment, first make sure the miter gauge slot is parallel to the saw, as described above. Then slide the fence over to the miter gauge slot and lock it in place. If the fence aligns with the entire length of the slot, everything is fine. If the two diverge at either end, adjust the fence, which usually involves loosening a few bolts and shifting the fence into alignment.



Adjusting the Throat Plate

Adjusting the Throat Plate

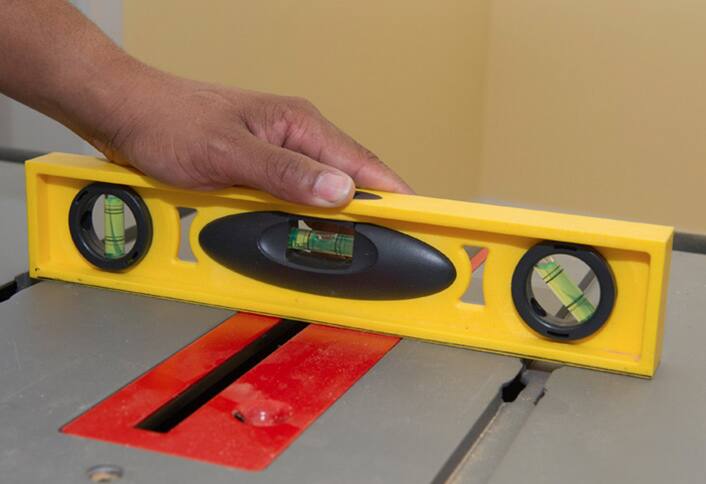

Make sure the throat plate isn't sticking up above the saw surface where it can catch the leading edge of a board as you cut. Use a level as a straightedge. Check for light between the level and the saw table, and between the level and the throat plate. Adjust the height by turning the setscrews in the throat plate.
