AlumiConn

Model # 95135.0

Internet # 204071424

3-Port Al/Cu Wire Connectors (100-Pack)

AlumiConn 3-Port Al/Cu Wire Connectors (100-Pack)


This item has been discontinued.
The Home Depot no longer carries this specific product.

$314.00 / box
Loading...

PRODUCT OVERVIEW

Model # 95135.0

Internet # 204071424

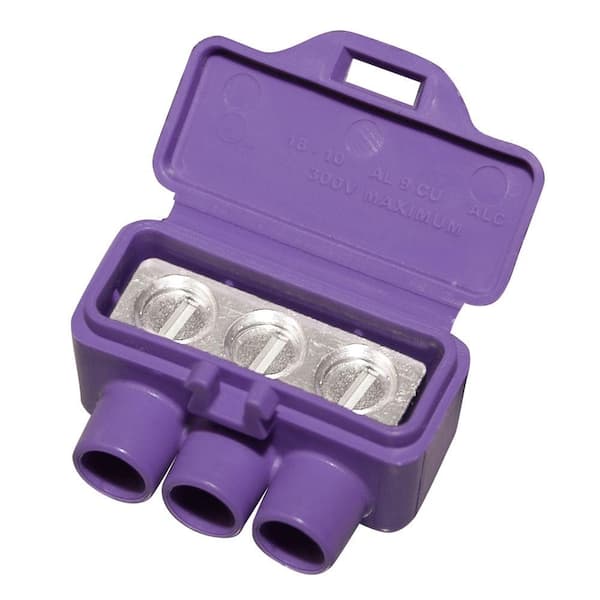

King Innovation’s AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies as a safe method for aluminum wiring repair. Manufactured in Missouri, AlumiConn is a lug style connector with three separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation, and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.

  • Approved by the consumer product safety committee (CPSC), UL listed, approved by insurance companies
  • Most cost-effective solution for repairing aluminum wiring systems

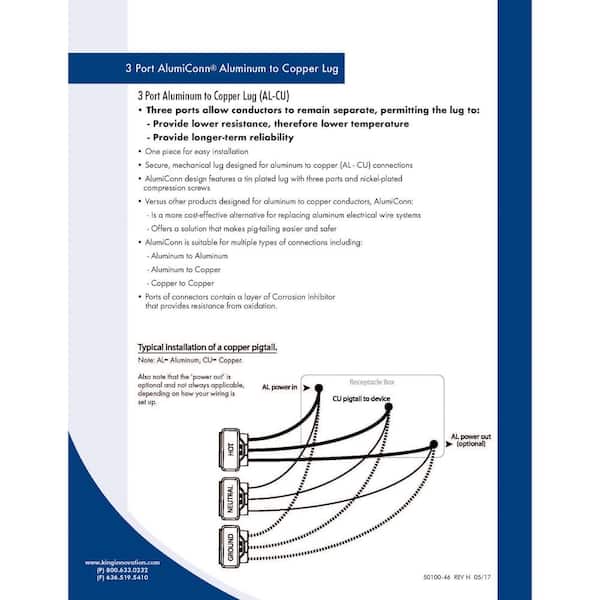

  • Three ports allow conductors to remain separate, permitting the lug to run at a lower temperature and provide longer term reliability
  • Secure mechanical connection
  • Contains a layer of corrosion inhibitor that provides resistance from oxidation
  • Made in the USA

SPECIFICATIONS

Dimensions
Assembled Depth (in.)
0.77 in
Assembled Height (in.)
0.65 in
Assembled Width (in.)
1.22 in
Product Depth (in.)
6.0
Product Height (in.)
4.5
Product Width (in.)
6.0
Details
Color Family
Purple
Electrical Product Type
Wire Connector
Maximum Wire Capacity
#10 (solid AL, solid & stranded CU)
Minimum Wire Capacity
#12 (solid AL), #18 (solid & stranded CU)
Returnable
90-Day
Voltage (volts)
300
Wire Type
Other
Warranty / Certifications
Certifications and Listings
1-UL Listed
Manufacturer Warranty
King Innovation products are guaranteed against faulty materials or workmanship for a period of one year from date of purchase. Contact factory for full warranty information.

CUSTOMER REVIEWS

Rated 4.7 out of 5 by 3 reviewers.
Rated 4.0 out of 5.0 by Expensive but the only cheaper option. I purchased a home with aluminum wiring. Inspector and Realtor did not mention this???? I found after much research that this product is one of the methods used to help remedy a fire hazard. These units are a lower cost option for a do it yourself person that feels comfortable working with electricity. Please do your own research: I used these to pigtail copper from aluminum wiring to switches and plugs. There is allot of info online for those of you willing to attempt a DIY project. They do recommend using a torque screwdriver for tightening the terminals. I found a suitable one on Amazon for around $60. Be sure and use the exact size screwdriver bit for tightening. The screws in the Alumiconn connector are a little soft and can break at the screwdriver slot. Depending on the box size and the number of connections in the box it can be challenging to fit the required number of Alumiconn connectors in the box. Electrical codes will dictate how full a box can be. December 26, 2013
Rated 5.0 out of 5.0 by Very good connectors. Easy to in stall. We installed the connectors and they worked well. They easily connected to the aluminum wiring. The caps hold firm. April 1, 2014
Rated 5.0 out of 5.0 by Easy to install. I believe that the Alumicon connectors are the best and easiest solution to making a house wired with aluminum safe. The connectors are easy to install, and if done correctly, will last a lifetime. May 29, 2013
