Crown Bolt

Model # 10401

Internet # 202518541

Store SKU # 124776

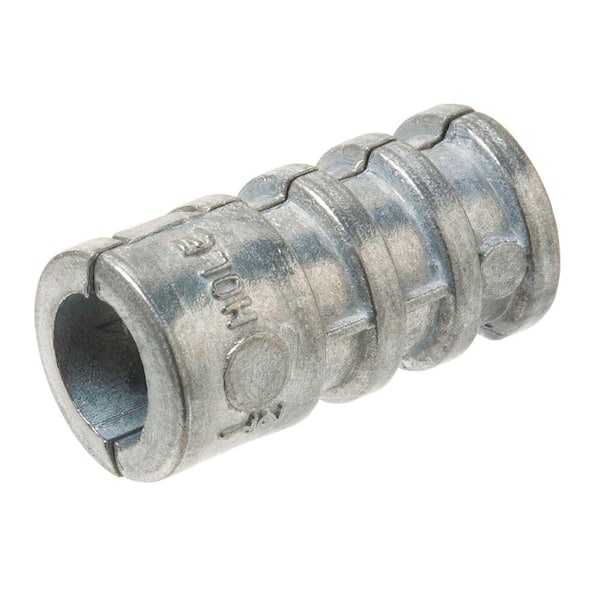

3/8 in. x 1-3/4 in. Zinc-Alloy Short Lag Shield (15-Pack)

$11.41 /each

Frequently Bought Together

Product Overview

These lag or expansion shields are used for fastening lag screws into wood and concrete. The expansion shield acts as an anchoring point into a concrete slab or foundation, expanding when the screw threads are engaged during installation. Common uses include frames and outdoor play equipment. When used in conjunction with a lag screw it can also be used in many masonry applications. Use in pre-drilled hole.

California residents: see  Proposition 65 information

  • 15-pieces per pack
  • Zinc alloy construction
  • Zinc-plated
  • 3/8 in. x 1-3/4 in.
  • Working load limit is 350 lbs. shear and 225 lbs. pull in concrete

Specifications

Dimensions

Inside Diameter
0.375 in
Outside diameter (in.)
0.5
Product Depth (in.)
1.25
Product Height (in.)
5.5
Product Length (in.)
1.75 in
Product Width (in.)
3.625
Required drill hole size (in.)
0.625

Details

Fastener Type
Concrete Anchor
Fastener/Connector Material
Alloy
Finish Family
Metallic
Indoor/Outdoor
Indoor/Outdoor
Maximum Weight Capacity (lb.)
350
Package Quantity
15
Primary Use
General
Product Weight (lb.)
0.52 lb
Returnable
90-Day
Weight Capacity (lb.)
350

Warranty / Certifications

Manufacturer Warranty
None

More Products With These Features

Search

Customer Questions & Answers

2 Questions2 Answers

Customer Questions & Answers

3/8 in. x 1-3/4 in. Zinc-Alloy Short Lag Shield (15-Pack)
3/8 in. x 1-3/4 in. Zinc-Alloy Short Lag Shield (15-Pack)

Ask your questions. Share your answers.



Clear Search Term


Sort By:

1 answer

what size masory bit would i use for these anchors

This question is from 3/8 in. x 1-3/4 in. Zinc-Alloy Short Lag Shield (15-Pack)
Asked by
chicago
Read all my Q&A
July 23, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

July 25, 2016
Answer:
You would need to use a 5/8" drill bit for these anchors.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

Can you use lag shields and bolts for securing warehouse racking on concrete?

This question is from 3/8 in. x 1-3/4 in. Zinc-Alloy Short Lag Shield (15-Pack)
Asked by
Read all my Q&A
July 13, 2016
The warehouse racking would be storing at least 2,000lbs of product.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
California
Read all my Q&A
Home Improvement Profile: Other
July 14, 2016
Answer:
Hi Workerdude, these don't have the right working load. You should consider using wedge anchors. They are very strong.
http://www.homedepot.com/b/Search/N-5yc1vZc2g8/Ntk-Extended/Ntt-wedge%2Banchors?Ntx=mode+matchpartialmax&NCNI-5
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
