Model # FP4432

Internet #100164259

Store SO SKU #1000896028

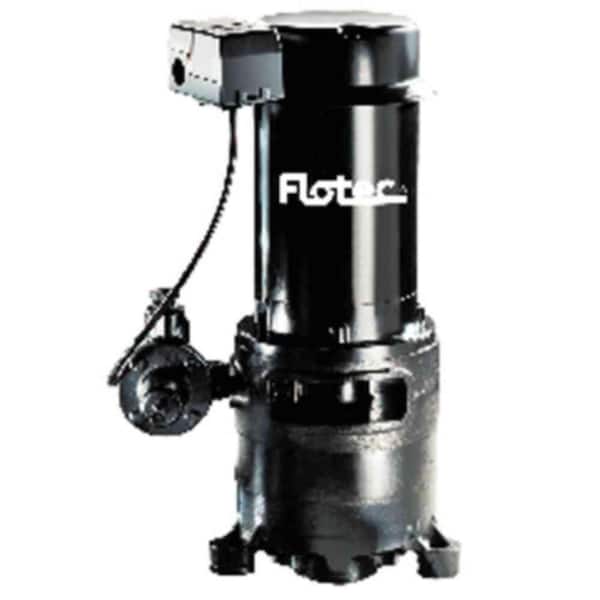

Flotec 1 HP Multi-Stage Deep-Well Jet Pump
0022315200791

Discontinued Flotec

1 HP Multi-Stage Deep-Well Jet Pump

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Flotec 1 HP Multi-Stage Deep-Well Jet Pump is a vertical, deep well pump that operates on 2-pipe suction. This jet pump is capable of lifting water from depths of up to 240 ft. and is made of heavy-duty cast-iron components. The pump's motor is factory set at 230-volts and can be changed to 115-volts. The pump conveniently self-primes after the housing is initially filled with water.
  • Pumps up to 12 GPM at 50 psi
  • Dual-voltage (115/230) motor provides high output
  • Vertical, multistage deep well jet pump is ideal for wells with pumping levels from 50 ft. to 240 ft.
  • 2-pipe suction for lifting water from depths of up to 240 ft.
  • 2 impellers and diffusers provide excellent performance
  • Pump self-primes after the housing is initially filled with water
  • Heavy-duty, cast-iron pump housing offers durability

Product Overview

Model #: FP4432
Internet #: 100164259

The Flotec 1 HP Multi-Stage Deep-Well Jet Pump is a vertical, deep well pump that operates on 2-pipe suction. This jet pump is capable of lifting water from depths of up to 240 ft. and is made of heavy-duty cast-iron components. The pump's motor is factory set at 230-volts and can be changed to 115-volts. The pump conveniently self-primes after the housing is initially filled with water.

  • Pumps up to 12 GPM at 50 psi
  • Dual-voltage (115/230) motor provides high output
  • Vertical, multistage deep well jet pump is ideal for wells with pumping levels from 50 ft. to 240 ft.
  • 2-pipe suction for lifting water from depths of up to 240 ft.
  • 2 impellers and diffusers provide excellent performance
  • Pump self-primes after the housing is initially filled with water
  • Heavy-duty, cast-iron pump housing offers durability

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
26.813
Product Height (in.)
51.75
Product Width (in.)
12.063

Details

Adjustable Speed
No
Amperage (amps)
19.2
Cord Length (ft.)
0
Corrosion Resistant
No
Discharge Flow 0 ft. @ 40 PSI (gallons/hour)
720.0
Discharge Flow 15 ft. @ 40 PSI (gallons/hour)
720.0
Discharge Flow 25 ft. @ 40 PSI (gallons/hour)
720
Discharge Flow 40 ft. @ 40 PSI (gallons/hour)
690
Discharge Flow 50 ft. @ 40 PSI (gallons/hour)
1200
Discharge Flow 60 ft. @ 40 PSI (gallons/hour)
624
Discharge Flow 90 ft. @ 40 PSI (gallons/hour)
444
Discharge Flow @ 0 ft. (gallons/hour)
720
Float Switch
No
Hardware Included
No
Head Pressure (ft.)
260
Horsepower (hp)
1 hp
Housing Material
Cast-Iron
Impeller Material
Xyron G702hu7000 Blk
Inlet Connection
Threaded female
Jet Pump Product Type
Deep Well
Maximum Pressure (psi)
76
Maximum Working Temperature (F)
77
Minimum working temperature (F)
40.0
Non-Clogging
Yes
Number of Impellers
2.0
Outlet Connection
Threaded female
Power Type Required
AC
Product Weight (lb.)
73.2lb
Pump Switch Type
Switchless
Returnable
90-Day
Self-Priming
Yes
Thermal Overload Protection
No
Voltage (volts)
230
With Tank
No

Warranty / Certifications

Certifications and Listings
4-UL Certified,CSA Certified
Manufacturer Warranty
1 Year

Specifications

Dimensions

Product Depth (in.)
26.813
Product Height (in.)
51.75
Product Width (in.)
12.063

Details

Adjustable Speed
No
Amperage (amps)
19.2
Cord Length (ft.)
0
Corrosion Resistant
No
Discharge Flow 0 ft. @ 40 PSI (gallons/hour)
720.0
Discharge Flow 15 ft. @ 40 PSI (gallons/hour)
720.0
Discharge Flow 25 ft. @ 40 PSI (gallons/hour)
720
Discharge Flow 40 ft. @ 40 PSI (gallons/hour)
690
Discharge Flow 50 ft. @ 40 PSI (gallons/hour)
1200
Discharge Flow 60 ft. @ 40 PSI (gallons/hour)
624
Discharge Flow 90 ft. @ 40 PSI (gallons/hour)
444
Discharge Flow @ 0 ft. (gallons/hour)
720
Float Switch
No
Hardware Included
No
Head Pressure (ft.)
260
Horsepower (hp)
1 hp
Housing Material
Cast-Iron
Impeller Material
Xyron G702hu7000 Blk
Inlet Connection
Threaded female
Jet Pump Product Type
Deep Well
Maximum Pressure (psi)
76
Maximum Working Temperature (F)
77
Minimum working temperature (F)
40.0
Non-Clogging
Yes
Number of Impellers
2.0
Outlet Connection
Threaded female
Power Type Required
AC
Product Weight (lb.)
73.2lb
Pump Switch Type
Switchless
Returnable
90-Day
Self-Priming
Yes
Thermal Overload Protection
No
Voltage (volts)
230
With Tank
No

Warranty / Certifications

Certifications and Listings
4-UL Certified,CSA Certified
Manufacturer Warranty
1 Year

Questions & Answers

Product Availability

Please bring this pump or a similar pump back to the store. Store 0802 Foley Alabama.
Asked by: Plumber123456
Hello and thank you for your recent inquiry with The Home Depot. Unfortunately, the 1 HP Multi-Stage Deep-Well Jet Pump is discontinued and is no longer in stock or available to be purchased. The item will remain on the website for customer reference, and the description will be updated with “Discontinued” if it has not been already. We may have an alternate item that would suit your needs. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot.
Answered by: THDSupport
Date published: 2016-05-08

What do you have that is comparable to specs on this pump?

Asked by: Karen
  • y_2017, m_10, d_17, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_, sid_100164259, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 162ms
  • QUESTIONS, PRODUCT

Customer Reviews

1 HP Multi-Stage Deep-Well Jet Pump is rated 4.9 out of 5 by 9.
Rated 5 out of 5 by from 1 HP Multi-Stage Deep-Well Jet Pump This pump after installing this my self and having a pro wire it up, this works great and I will not have any concerns at all. Make sure to have this wired right to a circuit breaker.. This pump will last 20 years as long as you maintain the pump and make sure the water does not freeze..
Date published: 2013-11-07
Rated 5 out of 5 by from Best yet Great replacement unit for STA-RITE MSE-7 model well pump. Form fit and functional with no additional re-work required. I would describe this unit as a plug and play replacement. Great pump and a great savings and cost.
Date published: 2013-04-09
Rated 5 out of 5 by from Flo-tec This was easy to install and very good quality.
Date published: 2010-03-09
Rated 5 out of 5 by from Product come complete operating correctly.Great price.. Best price around,come on time,come complete ready to install.Working better than old pump.
Date published: 2012-10-18
Rated 5 out of 5 by from Flotec Pumps are worth the $$.$$ Flotec pumps are great water pumps for the dollar. Getting harder to find locally but well worth shopping on line to find them.
Date published: 2012-04-17
Rated 5 out of 5 by from Great Pump for heavy use I upgraded from a 1/2HP horizontal pump to this 1 HP vertical two stage. It should save money. The old one ran for about 20 seconds to get back to pressure. This one is about 3 seconds. I did not like the fact that there was no base. I built one easy enough but that should be something standard. It was also difficult to prime. I normally put a Priming 'T' in but this one said it primed easy the first time and was self priming thereafter. Not so much. It took 7 gallons going into that little hole for the pressure gage and about 10 attempts to take a prime. Save yourself some time. put in a priming 'T'.
Date published: 2014-07-28
Rated 4 out of 5 by from Good Pump but lacks some features Pump seems to work very well however the base does not have a plate type bottom to cover a 6'' casing like my previous 1hp jet pump so had to build one out of wood to support it... also the control does not have an on/off auto switch at the pump which is a very important feature as in my case the power panel is about 100' away..My previous pump also came with adapter and fittings (foot valve & venturi) at comprable price but that was 1997..Sears...so maybe just inflation...
Date published: 2012-05-15
Rated 5 out of 5 by from Quality product at a reasonable price I had a house water pump damaged by winter freeze. I was looking for a pump with similar construction and pipe connections as my old pump that would minimize my re-installation issues. While the manufactures name has changed I believe this is the old AO Smith pump that had been working reliability for last 30 years in my house.
Date published: 2014-07-16
