Model # SKL9201

Internet #203468203

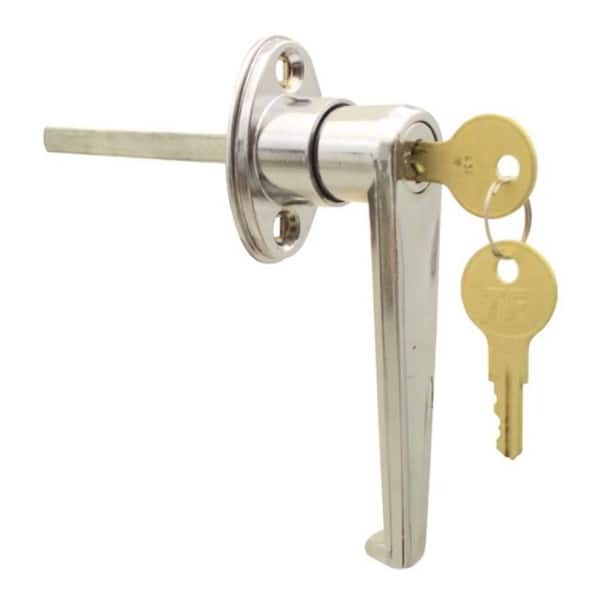

IDEAL Security Keyed L Garage Door Replacement Lock
0056947200133

IDEAL Security

Keyed L Garage Door Replacement Lock

  • New or replacement latch for garage doors
  • Compatible with our locking cylinders and latch cables
  • Why pay a garage door specialist? Replace hardware yourself
$1216 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • New or replacement latch for garage doors
  • Compatible with our locking cylinders and latch cables
  • Why pay a garage door specialist? Replace hardware yourself
Standard L replacement garage door lock handle. Shaft measures 5/16 in. diameter with a 1-1/2 in. hole spacing center to center. Shaft is four inches long. When used with SK7115, the SK278 locking cylinder is required to unlock door from the outside.
  • Replacement garage door lock
  • Standard L replacement
  • 5/16 in. diameter shaft, 1-1/2 in. hole center
  • 4 in. long shaft
  • Garage door hardware

Product Overview

Standard L replacement garage door lock handle. Shaft measures 5/16 in. diameter with a 1-1/2 in. hole spacing center to center. Shaft is four inches long. When used with SK7115, the SK278 locking cylinder is required to unlock door from the outside.

  • Replacement garage door lock
  • Standard L replacement
  • 5/16 in. diameter shaft, 1-1/2 in. hole center
  • 4 in. long shaft
  • Garage door hardware

Specifications

Dimensions

Product Depth (in.)
5.75
Product Height (in.)
5
Product Width (in.)
1.25

Details

Garage Door Part/Accessory Type
Lock Set
Product Weight (lb.)
.697 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited one year warranty: With proof of purchase. Contact Ideal’s customer service for information on missing parts or specific application situations. Customer service: 1-800-361-2236 x 230 or visit our web site at www.idealinc.com

Specifications

Dimensions

Product Depth (in.)
5.75
Product Height (in.)
5
Product Width (in.)
1.25

Details

Garage Door Part/Accessory Type
Lock Set
Product Weight (lb.)
.697 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited one year warranty: With proof of purchase. Contact Ideal’s customer service for information on missing parts or specific application situations. Customer service: 1-800-361-2236 x 230 or visit our web site at www.idealinc.com

More Products With These Features

Search

Customer Questions & Answers

Need one 6 inch long

Asked by: kathy
The shaft is 4" long, we don't have other size. The squared shaft is measured 5/16" (flat to flat).
Answered by: IdealSecurity
Date published: 2016-03-10

Can this lock be used on a roll up door? Thank's

Asked by: Birt313
The SKL9201 is for replacing an existing one only. For new installation, you need to buy the following products: SK7155, SK278, and SKL9201, they can be installed on the left side of the garage door only (view from outside), and a sectional garage door similar to the one shown on Ideal Security website.
Answered by: IdealSecurity
Date published: 2016-01-12

Can 2 handles be had with matching keys?

Asked by: Kelsey
No, we don't make keyed alike handles.
Answered by: IdealSecurity
Date published: 2015-11-26

shaft replacement :(removeability)

is the shaft removeable? i currently have a t-handle with a 5/16" square hole on the backside which allows for the insertion of a flat bar which in turn rotates a swivel that will pull the snap locks on each side of a retractable garage door. a through hole on the back of the lock hub and on the flat bar allows for the bar to be pinned in place. a set screw would accomplish the same task.
Asked by: fixit2
The square shaft in the SKL9201 is fixed into a square hole using a solid pin about 1/8" in diameter. Yes, you can remove the pin, and the shaft will become loose. To use a set screw, you have to tap the hole.
Answered by: IdealSecurity
Date published: 2015-09-20
  • y_2017, m_8, d_17, h_23CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_6
  • loc_, sid_203468203, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 14ms
  • QUESTIONS, PRODUCT

Customer Reviews

Keyed L Garage Door Replacement Lock is rated 5.0 out of 5 by 4.
Rated 5 out of 5 by from This handle was the same exact one that I had to replace. Was very easy to replace and works per... This handle was the same exact one that I had to replace. Was very easy to replace and works perfectly. Thanks for e-mailing me when the product was available at the store.
Date published: 2017-02-23
Rated 5 out of 5 by from The product was good quality and easy to install. ... The product was good quality and easy to install. The Crome handle is very attractive as well. Product was delivered to the store on time.
Date published: 2017-04-20
Rated 5 out of 5 by from Easy fix for non-working entry door lock on a travel trailer Replaced a non functioning entry door lock on my travel trailer. I had to cut off the extra length of the square rod, but this was no problem. Installation was easy as the holes in the fitting matched the ones in the old door handle.
Date published: 2014-06-10
Rated 5 out of 5 by from Worked Fine Couldn't find the 'L' style handle locally so it was great to find it at HD online. Plus it was shipped to my local store FREE. I didn't need the lock but that's ok.
Date published: 2015-02-10
