0783250739707

Ideal

Model # 30-1074J

Internet # 202894290

Store SKU # 629536

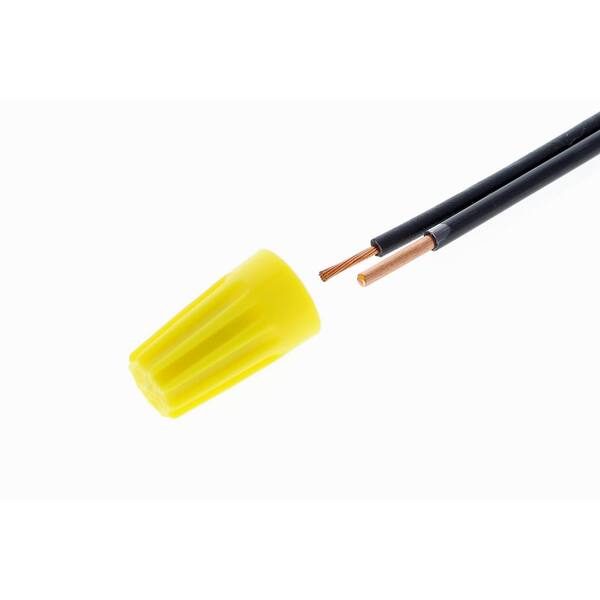

74B Yellow WIRE-NUT Wire Connectors (250-Pack)

$16.86 /package

Frequently Bought Together

Product Overview

The IDEAL WIRE-NUT wire connectors are the original twist-on wire connectors and feature a positive-grip design for easy installation. Five color-coded models cover hundreds of wire combinations. The fixed square-wire spring provides a secure connection that won't relax over time.

  • Positive-grip design requires no pre-twisting for fast, easy installation
  • For use with #18 to #8 AWG copper conductors
  • Minimum wire range: 2 #18 AWG, maximum wire range: 4 #14 & 1 #18 AWG
  • Rated to 600 Volt max
  • Deep skirt helps protect against flashover
  • Reusable for easy circuit changes and additions
  • Tough UL 94 Volt-2 flame-retardant shell rated at 221 degrees fahrenheit
  • UL listed to 486C and CSA certified to C22.2 #188
  • Compliant with federal specification w-s-610E
  • Made in the U.S.A. of U.S. and global components

Specifications

Dimensions

Product Depth (in.)
0.55
Product Height (in.)
0.95
Product Width (in.)
0.55

Details

Color Family
Yellow
Electrical Product Type
Wire Connector
Maximum Wire Capacity
4 #14 & 1 #18 AWG
Minimum Wire Capacity
2 #18 AWG
Returnable
90-Day
Voltage (volts)
600
Wire Type
Bare Copper

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
Warranted against material and workmanship only

More Products With These Features

Search

Customer Questions & Answers

  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 32ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Customer Reviews

Rated 4.5 out of 5 by 4 reviewers.
Rated 5.0 out of 5.0 by easy breezy lemon squeezy searched the caps online, found the caps on the home depot site, purchased the caps and received the caps in 2 days. was pretty easy. April 5, 2016
Rated 5.0 out of 5.0 by Remodel hotels It is really worked very good and durable, easy to install October 14, 2015
Rated 4.0 out of 5.0 by Work like they should They work like they should. Good product could be less expensive. January 20, 2015
Rated 4.0 out of 5.0 by Good quality wire nuts. These are good wire nuts. No problems with the quality at all. I like the container for other storage uses. I think they are a little pricey. March 25, 2014
