0026508014004

MOEN

Model 1222

Internet #202059049

Store SKU #253045

Store SO SKU #1000897582

Posi-Temp Pressure Balanced Shower Cartridge

$39.00 /each
  • Easy to install and reliable with no leaks
  • Reviewers suggest using a cartridge removal tool

Frequently Bought Together

Product Overview

This Posi-Temp Pressure Balanced Shower Cartridge is designed for use with MOEN faucets. This durable, attractive cartridge is made of solid brass and offers hot/cold operation.

  • Replaces MOEN Posi-Temp cartridges
  • Includes twisting cap to loosen installed cartridge
  • Instructions included
  • For use with MOEN faucets



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

29 Questions92 Answers

Customer Questions & Answers

Posi-Temp Pressure Balanced Shower Cartridge
Posi-Temp Pressure Balanced Shower Cartridge

Ask your questions. Share your answers.



Clear Search Term


Sort By:

11 answers

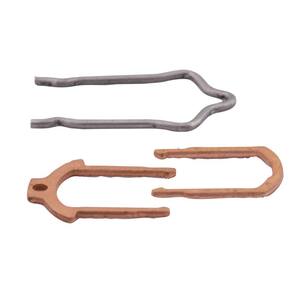

Does this cartridge come with the clip that holds it in the body of the valve?

This question is from Posi-Temp Pressure Balanced Shower Cartridge
Asked by
Spud
Southern, NH
October 12, 2011
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (11)

Asked by
Glenn Dale
Read all my Q&A
November 11, 2014
Answer:
No. You have to buy it separate. I just used my old one though. If you're careful about getting the old one off, it works just fine.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Chicago, IL
Read all my Q&A
April 28, 2014
Answer:
No. Save the original clip and reuse it. (Moen will send the replacement part for free under warranty. Check their website.)
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
coupeville wa
Read all my Q&A
Home Improvement Profile: DIYer
October 5, 2013
Answer:
Be Careful!! I dropped mine behind the wall! I tried getting it with a magnet, but just wasted my time. Ended up making a replacement using my Dremel and a piece of metal. Would have been faster to go to the hardware store.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
April 16, 2013
Answer:
the moen brand one i purchased did come with the clip.
-1point
0out of 1found this answer helpful.
Was this helpful?helpful0unhelpful1

Asked by
Justaguy
December 5, 2012
Answer:
It does NOT come with the retainer pin. You will need to keep the old one.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Pittsburg, CA, USA
Read all my Q&A
October 20, 2012
Answer:
The Cartridge I bought did not come with another clip. But my old clip was good and there was no problem. I've heard that if you buy the "kit" then it will come with a new clip. Good luck!
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Escondido, CA, USA
Read all my Q&A
April 17, 2012
Answer:
No. You have to reuse the old clip. I used a rag to cover the back area in case the clip fell down behind the pipes.
+7points
7out of 7found this answer helpful.
Was this helpful?helpful7unhelpful0

Asked by
Jensen Beach, FL
Read all my Q&A
February 7, 2012
Answer:
yes
-2points
0out of 2found this answer helpful.
Was this helpful?helpful0unhelpful2

Asked by
Read all my Q&A
December 27, 2011
Answer:
No clip comes with the shower valve, but you can buy them in a hardware store separately. TRICk -Put a thin gauge wire on the clip before removal and before installing to prevent it from falling down behind the tub or shower wall.
+7points
7out of 7found this answer helpful.
Was this helpful?helpful7unhelpful0

Asked by
Chatham, NJ, USA
Read all my Q&A
December 6, 2011
Answer:
No. I used the old clip.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
October 12, 2011
Answer:
Hello. Thank you so much for your interest and support of Moen products. The Posi-Temp cartridge is lubricated and is ready to be installed. The retaining clip is reusable and not included with the cartridge. If you have additional questions, please complete the form at http://www.moen.com/consumer-support/contact-us or call Moen at 1-800-289-6636. Our business hours are 8:00 a.m. - 8:00 p.m. Monday Read More
Hello. Thank you so much for your interest and support of Moen products. The Posi-Temp cartridge is lubricated and is ready to be installed. The retaining clip is reusable and not included with the cartridge. If you have additional questions, please complete the form at http://www.moen.com/consumer-support/contact-us or call Moen at 1-800-289-6636. Our business hours are 8:00 a.m. - 8:00 p.m. Monday through Friday and 9:00 a.m. - 5:30 p.m. Saturday EST. Read Less
-1point
1out of 3found this answer helpful.
Was this helpful?helpful1unhelpful2

10 answers

10 years ago since my shower was installed the hot water and colder water have been "backwards", how can I reverse this?

This question is from Posi-Temp Pressure Balanced Shower Cartridge
Asked by
Howell NJ
Read all my Q&A
January 27, 2014
The shower is now dripping and the cartidge has to be replaced. Since I have to change it out is there a way to reverse the action so hot is to the left and cold is to the right
Posi temp cartridge #1222
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (10)

Asked by
Memphis, TN
Read all my Q&A
Home Improvement Profile: Professional
April 10, 2016
Answer:
DonMesa pull valve out; turn valve 180 degree; reinstall valve
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Read all my Q&A
Home Improvement Profile: Professional
March 14, 2016
Answer:
Pull out and reverse the cartridge 180 deg...
This will fix your issue...
Cheers! = )
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
February 26, 2016
Answer:
Well it sounds like the plumbers hooked it up backwards. This would require them to return and switch the hot and cold lines going into the valve mechanism. Replacing the cartridge will only fix the leak not the hot/cold problem.
-3points
0out of 3found this answer helpful.
Was this helpful?helpful0unhelpful3

Asked by
Fountain, CO
Read all my Q&A
January 29, 2015
Answer:
Are the hot and cold pipes installed in the right ports? Also,make sure the cartridge is not installed upside down. The H/C tab must be facing up.....
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Burke, Virginia
Read all my Q&A
January 14, 2015
Answer:
The cartridge can be inserted upside down and that will reverse the hot and cold. Before you remove the original cartridge, look for the H and C on the front of the cartridge. I bet they will read upside down and be on the lower part of the front of the cartridge. Put your new cartridge in with the H and C on the top. The H and C should be on the opposite side as your original cartridge..
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Glenn Dale
Read all my Q&A
November 11, 2014
Answer:
If it's truly this cartridge, and you can break it loose, you can simply invert the cartridge, that is, rotate the stem 180 degrees. When I just installed my new one, I had to do this. I had a problem with the old cartridge where it wouldn't mix at all and was all hot.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Florida
Read all my Q&A
October 1, 2014
Answer:
I don't think so. It sounds like the original fixture was installed backwards (perhaps due to the layout of the piping), but once installed, I don't think there is a way to reverse the hot/cold in the valve, itself.
-3points
0out of 3found this answer helpful.
Was this helpful?helpful0unhelpful3

Asked by
Read all my Q&A
February 16, 2014
Answer:
When you install a replacement cartridge, flip the cartridge upside down - the HC label on the cartridge will be on the bottom and the H will be next to the hot pipe and the C next to the cold - before you put the retaining clip in. The instructions for your repair/replacement kit should also have this information.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
January 29, 2014
Answer:
Hello. Thank you so much for your interest and support in Moen products. The Moen PosiTemp cartridge just needs to be pullout and flipped around to reverse the hot and cold. If you have additional questions, please complete the form at http://www.moen.com/consumer-suppoert/contact-us or call Moen at 1-800-289-6636. Our business hours are 8:00 a.m. - 7:00 p.m. Monday through Friday and 9:00 a.m. - 3:00 Read More
Hello. Thank you so much for your interest and support in Moen products. The Moen PosiTemp cartridge just needs to be pullout and flipped around to reverse the hot and cold. If you have additional questions, please complete the form at http://www.moen.com/consumer-suppoert/contact-us or call Moen at 1-800-289-6636. Our business hours are 8:00 a.m. - 7:00 p.m. Monday through Friday and 9:00 a.m. - 3:00 p.m. Saturday EST. Read Less
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

January 28, 2014
Answer:
Hi jersey162,
Your cartridge is 180 degree off, when you install the new one
check the orientation of the old one and reverse it.
There is a top and bottom yours is reversed now.
Mike,
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

8 answers

The old valve is stuck, how do I get the old valve out?

This question is from Posi-Temp Pressure Balanced Shower Cartridge
Asked by
Brent
February 2, 2013
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (8)

Asked by
Fountain, CO
Read all my Q&A
January 29, 2015
Answer:
The new cartridge comes with a tool to rotate it that allows it to rotate up a ramp on the valve body to enable it to be pulled out. In theory. HD sells a more robust tool that does it easier. I used two screwdrivers, one on each side of the cartridge and slowly pried it out. Don't forget to remove the clip first...
+5points
5out of 5found this answer helpful.
Was this helpful?helpful5unhelpful0

Asked by
Burke, Virginia
Read all my Q&A
January 14, 2015
Answer:
My experience is, first remove the U-shaped pin behind the front of the brass casing by pulling it up. It is very hard to see because the pin sets behind the front of the brass casing, the top of the pin sets flush with the casing, and the pin is back in the wall where it is dark and cramped. Once the pin is out, place the plastic remover tool over the front of the cartridge and use a wrench to rotate Read More
My experience is, first remove the U-shaped pin behind the front of the brass casing by pulling it up. It is very hard to see because the pin sets behind the front of the brass casing, the top of the pin sets flush with the casing, and the pin is back in the wall where it is dark and cramped. Once the pin is out, place the plastic remover tool over the front of the cartridge and use a wrench to rotate the cartridge clockwise and counterclockwise a few degrees (until the edge of the casing stops the turning). Turn several times to break the seal between the outside of the old cartridge and the casing wall. Insert the screw which holds the handle onto the cartridge, grab the head of the screw with a pair of pliers and pull straight out. If the cartridge does not come out, go to home depot and buy a cartridge remover tool and use it. This tool only lets you pull out the cartridge a quarter of an inch. If you can't pull the cartridge by hand with the tool attached after the cartridge moves a quarter of an inch, get a 4-foot long 2x4 and a few wood shims. Stack the shims on the tile beside the cartridge and use them as a pivot point for the 2x4. Put one end of the 2x4 under the removal tool and pry backwards, keeping the cartridge as straight as possible. If this fails, try prayer. If successful, be sure and put the provided lubricating jell on the new cartridge before inserting it. Read Less
+2points
3out of 4found this answer helpful.
Was this helpful?helpful3unhelpful1

Asked by
Glenn Dale
Read all my Q&A
November 11, 2014
Answer:
There's a puller you can purchase. Totally worth it. Use the plastic 'break' that comes with the cartridge to loosen the old cartridge, then use the puller. It should slide right out once you get enough turns on it.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Chicago, IL
Read all my Q&A
April 28, 2014
Answer:
Try WD-40 and give it time to penetrate. Once removed, clean any residue from the valve prior to installation. Use the lubricant supplied or o-ring grease before installation.
+2points
3out of 4found this answer helpful.
Was this helpful?helpful3unhelpful1

Asked by
Idaho
Read all my Q&A
October 8, 2013
Answer:
Moen sells a tool for this exact purpose. Pricy but worth it!
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
florida
Read all my Q&A
March 6, 2013
Answer:
you probably need to get a valve removal tool sometimes matched to specific brands. if you can match your valve at home depot you should find the right removal tool, don't forget to shut the water supply to the valve or you will have a big mess
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
February 6, 2013
Answer:
Hello Brent. Thank you so much for your interest and support of Moen products. The PosiTemp cartridge can often be removed without the tool. However, using the tool makes the removal process easier. It will also work with some Moen single handle bathroom sink and kitchen faucets. If you have additional questions, please complete the form at http://www.moen.com/consumer-support/contact-us or call Moen at Read More
Hello Brent. Thank you so much for your interest and support of Moen products. The PosiTemp cartridge can often be removed without the tool. However, using the tool makes the removal process easier. It will also work with some Moen single handle bathroom sink and kitchen faucets. If you have additional questions, please complete the form at http://www.moen.com/consumer-support/contact-us or call Moen at 1-800-289-6636. Our business hours are 8:00 a.m. - 8:00 p.m. Monday through Friday and 9:00 a.m. - 5:30 p.m. Saturday EST. Read Less
+2points
3out of 4found this answer helpful.
Was this helpful?helpful3unhelpful1

Asked by
Read all my Q&A
February 3, 2013
Answer:
There is a special Moen tool to remove the old valve - Model # 104421, Internet # 202998692, Store SKU # 135222. I followed the directions for the new cartridge (remember to pull the retaining clip) and still couldn't get it out cleanly. I eventually muscled the old cartridge out with vice grips, but ripped the rubber seals apart and spent time pulling out bits of them. I wouldn't recommend that route. Read More
There is a special Moen tool to remove the old valve - Model # 104421, Internet # 202998692, Store SKU # 135222. I followed the directions for the new cartridge (remember to pull the retaining clip) and still couldn't get it out cleanly. I eventually muscled the old cartridge out with vice grips, but ripped the rubber seals apart and spent time pulling out bits of them. I wouldn't recommend that route. If you've got any other Moen valves in the house that you'll need to fix in the coming years, I think the tool would be worth it. Read Less
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

8 answers

Does this cartrage fit all tub and shower valves?

This question is from Posi-Temp Pressure Balanced Shower Cartridge
Asked by
ALDEE
November 4, 2011
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (8)

Asked by
Burke, Virginia
Read all my Q&A
January 14, 2015
Answer:
My Home Depot sales person said there were two different cartridges for Moen - one for handles that pull out to start the water and one for handles that turn to start the water. I do know my shower is turned on by lifting a lever on my water spout, so the cartridge has nothing to do with turning on the shower.
-2points
0out of 2found this answer helpful.
Was this helpful?helpful0unhelpful2

Asked by
Glenn Dale
Read all my Q&A
November 11, 2014
Answer:
No, just Moen single handle jobs.
-3points
0out of 3found this answer helpful.
Was this helpful?helpful0unhelpful3

Asked by
Read all my Q&A
April 16, 2013
Answer:
no, just the moen positemp.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Justaguy
December 5, 2012
Answer:
This cartridge will fit any MOEN sigle handle bath/shower 270 degree valves produced in the past 15 years or so, it will NOT fit other brands
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Pittsburg, CA, USA
Read all my Q&A
October 20, 2012
Answer:
Not all Moen tub and shower valves. Make sure to check if you should use 1225 or 1222. 1225 is used if you pull out your handle to turn on the water. 1222 is used if you only turn the handle to start the water. Make sure you get the correct one.
You can also pull your existing cartridge and take it to Home Depot and they'll help you with which one you need. But you'll have to isolate the water to your Read More
Not all Moen tub and shower valves. Make sure to check if you should use 1225 or 1222. 1225 is used if you pull out your handle to turn on the water. 1222 is used if you only turn the handle to start the water. Make sure you get the correct one.
You can also pull your existing cartridge and take it to Home Depot and they'll help you with which one you need. But you'll have to isolate the water to your shower either by finding the valve or shutting down the water for your house. Good luck! Read Less
+13points
13out of 13found this answer helpful.
Was this helpful?helpful13unhelpful0

Asked by
Jensen Beach, FL
Read all my Q&A
February 7, 2012
Answer:
NO
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Read all my Q&A
December 27, 2011
Answer:
No only posi-temp
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Read all my Q&A
November 6, 2011
Answer:
Thank you so much for your interest and support of Moen products. Moen makes two different cartridges for single handle tub and shower valves. The easiest way to identify which cartridge you need is determined by the operation of the handle. If you only rotate your handle to turn on the water then you will need a 1222 Posi Temp cartridge. If your handle pulls out then rotates left or right, you will need Read More
Thank you so much for your interest and support of Moen products. Moen makes two different cartridges for single handle tub and shower valves. The easiest way to identify which cartridge you need is determined by the operation of the handle. If you only rotate your handle to turn on the water then you will need a 1222 Posi Temp cartridge. If your handle pulls out then rotates left or right, you will need a Moen 1225 cartridge.
If you have additional questions or would like to check the warranty status of your product, please complete the form at http://www.moen.com/consumer-support/contact-us or call Moen at 1-800-289-6636. Our business hours are 8:00 a.m. - 8:00 p.m. Monday through Friday and 9:00 a.m. - 5:30 p.m. Saturday EST. Read Less
+34points
36out of 38found this answer helpful.
Was this helpful?helpful36unhelpful2
2 3 »
  • 2016-09-23 T13:59:07.249-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202059049, prod, sort_default
2 3 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 241ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.2 out of 5 by 115 reviewers.
Rated 5.0 out of 5.0 by Replacement Installation was a breeze. Be sure to wipe interior of valve housing after pulling old one out, just in case of any build up residual. Tie a string to the clip that holds the valve in housing before you remove it so it doesn't drop behind the wall. I did use a puller that was made for this valve removal that I had purchased. Glad I did. September 20, 2016
Rated 5.0 out of 5.0 by Just minutes to install! I terrified of fixing this leaky faucet, but after a short YouTube video and a trip to HD: done in 5 MIN! September 2, 2016
Rated 3.0 out of 5.0 by Not the greatest, but easy to repair and Moen stands behind. Had the bath faucet for two years. Knob broke, then a week later cartridge stuck in the on position. had to turn off water to house. Bought a new cartridge to get fixed that day, but Moen will send new parts under lifetime warranty. I have had good experiences with Moen standing behind their warranty. This faucet is easy to repair. September 5, 2016
Rated 5.0 out of 5.0 by DIY plumbing Easy to install. It took 10 minutes to replace the cartridge. Good product. September 6, 2016
Rated 1.0 out of 5.0 by Avoid at all cost This of"work" costs $40 it broke within 3 years of avg use. Get another brand, warned and avoid August 29, 2016
Rated 4.0 out of 5.0 by Not too bad... Shower was dripping...so time to replace the cartridge. It was last replaced 6 years ago. They seem to last about that long. Some tips: 1) take pics as you disassemble - they will come in handy later; 2) shove a towel under the assembly to prevent the clip from falling; 3) Slide a paper clip through the clip to be able to securely remove it and not have it drop. Once installed, the water control is smooth once again and the dripping has stopped. August 9, 2016
Rated 5.0 out of 5.0 by The best solition I install the product very easy.It is working excellent August 24, 2016
Rated 3.0 out of 5.0 by Too expensive. But stopped the leak. My shower cartridge began to leak after only 3 years. At $39 this is an expensive repair. I'm disappointed in Moen's quality/price. That being said the replacement was fairly easy after watching a couple of youtube videos. The little white plastic removal tool was essential to getting the old cartridge out. It took about 15 minutes of slowly rotating the cartridge back and forth with a set of channel locks on the plastic tool. Finally the cartridge slid out about half an inch on the beveled edge of the valve. It took another 10 minutes of pulling and then rotating with the tool to finally coax the old cartridge out. Remember to pay attention to the H/C label orientation of the old cartridge before removing and lube up the new cartridge rubber seals liberally with the included lubricant before installing. August 6, 2016
  • 2016-09-23 T20:23:28.154-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_115, tr_115
  • loc_en_US, sid_202059049, prod, sort_default
2 3 4 5 >>
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 116ms
  • REVIEWS, PRODUCT
