Model # 6950-20

Internet #202947872

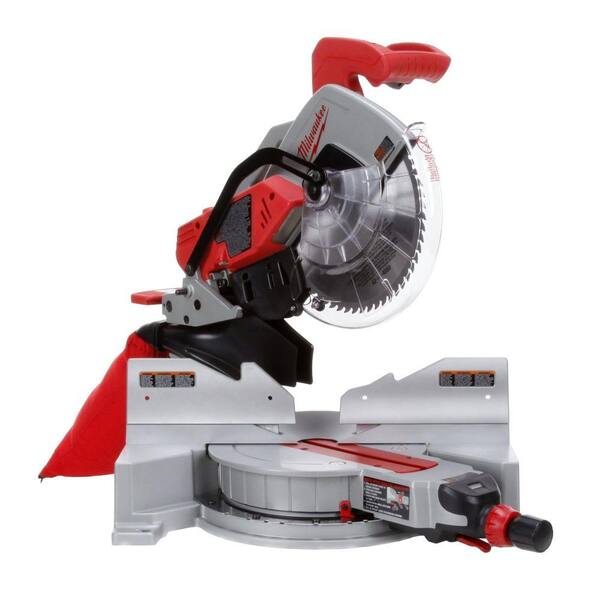

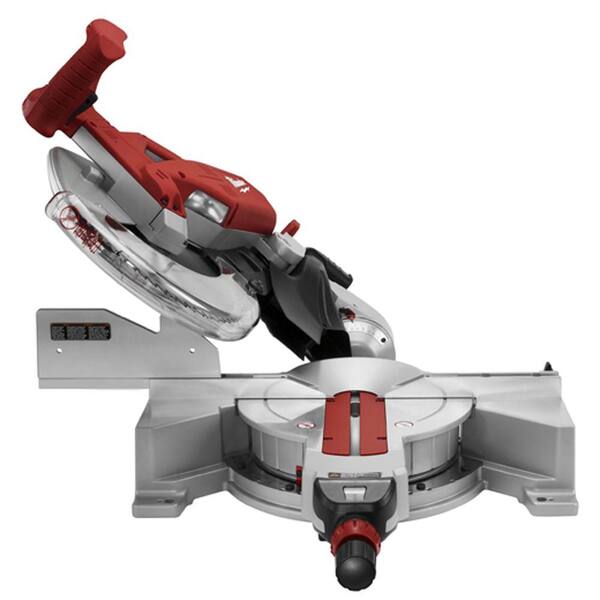

Milwaukee 12 in. Dual Bevel Miter Saw
0045242150403

Discontinued Milwaukee

12 in. Dual Bevel Miter Saw

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Milwaukee 6950-20 12 in. Dual-Bevel Compound Miter Saw offers best in class accuracy, power and ease of use. The Miter Angle Digital Readout provides repeatable accuracy to 0.1 The Miter Angle Fine Adjust with Detent Override makes it simple to dial-in precise miter angles. Dual Integral Jobsite Lights fully illuminate the work piece and cut line from either side of the blade. The powerful 15.0 Amp, 3.3 Max HP Direct Drive Motor provides increased power for high performance cutting in hard lumber. Constant Power Technology with Soft Start maintains constant cutting speed under load and decreases start up head movement. The Integral Dust channel captures up to 75% of the dust and debris cut.
  • The Milwaukee 6950-20 offers a miter angle digital readout provides repeatable accuracy to 0.1
  • Miter angle fine adjust with detent override makes it simple to dial-in precise miter angles
  • The Milwaukee 6950-20 features dual integral jobsite lights fully illuminate the work piece and cut line from either side of the blade
  • The Powerful Milwaukee 6950-20 15.0 Amp, 3.3 Max HP direct drive motor provides increased power for high performance cutting in hard lumber
  • The Milwaukee 6950-20 features constant power technology with soft start- maintains constant cutting speed under load and decreases start up head movement
  • Oversized single lever bevel adjustment with (9) positive bevel stops allows the saw to easily bevel left and right 0 48 and provides fast and accurate adjustments
  • Integral dust channel captures up to 75% of the dust and debris cut

Product Overview

The Milwaukee 6950-20 12 in. Dual-Bevel Compound Miter Saw offers best in class accuracy, power and ease of use. The Miter Angle Digital Readout provides repeatable accuracy to 0.1 The Miter Angle Fine Adjust with Detent Override makes it simple to dial-in precise miter angles. Dual Integral Jobsite Lights fully illuminate the work piece and cut line from either side of the blade. The powerful 15.0 Amp, 3.3 Max HP Direct Drive Motor provides increased power for high performance cutting in hard lumber. Constant Power Technology with Soft Start maintains constant cutting speed under load and decreases start up head movement. The Integral Dust channel captures up to 75% of the dust and debris cut.

  • The Milwaukee 6950-20 offers a miter angle digital readout provides repeatable accuracy to 0.1
  • Miter angle fine adjust with detent override makes it simple to dial-in precise miter angles
  • The Milwaukee 6950-20 features dual integral jobsite lights fully illuminate the work piece and cut line from either side of the blade
  • The Powerful Milwaukee 6950-20 15.0 Amp, 3.3 Max HP direct drive motor provides increased power for high performance cutting in hard lumber
  • The Milwaukee 6950-20 features constant power technology with soft start- maintains constant cutting speed under load and decreases start up head movement
  • Oversized single lever bevel adjustment with (9) positive bevel stops allows the saw to easily bevel left and right 0 48 and provides fast and accurate adjustments
  • Integral dust channel captures up to 75% of the dust and debris cut

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$457.99 /each
$499.00 /each
$499.00 /each
$599.00 /each
Name 15 Amp 10 in. Corded Double Bevel Sliding Compound Miter Saw with 60T Blade, Dust Bag 12 in. Dual Bevel Miter Saw 15 Amp 10 in. Corded Double Bevel Sliding Compound Miter Saw with Laser and blade, dust bag, clamp, wrench, triangle 15 Amp Corded 10 in. Dual-Bevel Sliding Glide Miter Saw with 60-Tooth Carbide Saw Blade
Brand Makita Milwaukee Makita Bosch
Ratings (19) (5) (84) (55)
Maximum Cutting Thickness (in.) 6.63 6 6.625 6
Miter Saw Type Sliding Compound Sliding Compound Sliding
Bevel Type Dual Dual Dual Dual
Power Tool Features No Additional Features Laser Guide Electric Brake,Positive Stops
Cordless/ Corded Corded Corded Corded Corded
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
31
Product Height (in.)
21.5
Product Width (in.)
21.25
Table Length (in.)
0
Table Width (in.)
0

Details

45 Degree Crosscut Capacity Maximum
1.66
90 Degree Crosscut Capacity Maximum - Left
3.37
90 Degree Crosscut Capacity Maximum - Right
6
Amperage (amps)
15
Arbor Size
.5-inch or 1-inch
Bench & Stationary Tool Type
Compound Miter Saw
Bench or Stationary
Bench
Bevel Type
Dual
Blade Diameter (in.)
12
Color Family
Silver
Cord Length (ft.)
8
Cordless/ Corded
Corded
Dust Collection Method
Bag
Electric Brake
Yes
Lockout Power Switch
No
Maximum Cutting Thickness (in.)
6
Maximum Degree Bevel Cuts - Left
48 °
Maximum Degree Bevel Cuts - Right
48 °
Maximum Degree Miter Cuts - Left
52 °
Maximum Degree Miter Cuts - Right
52 °
Maximum Speed (rpm)
3200
Maximum miter capacity
52
No Tool Blade Change
No
Product Weight (lb.)
64.33lb
Reconditioned
No
Returnable
90-Day
Tools Product Type
Power Tool

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed,ETL Listed
Manufacturer Warranty
5 Year Limited Tool Warranty

Specifications

Dimensions

Product Depth (in.)
31
Product Height (in.)
21.5
Product Width (in.)
21.25
Table Length (in.)
0
Table Width (in.)
0

Details

45 Degree Crosscut Capacity Maximum
1.66
90 Degree Crosscut Capacity Maximum - Left
3.37
90 Degree Crosscut Capacity Maximum - Right
6
Amperage (amps)
15
Arbor Size
.5-inch or 1-inch
Bench & Stationary Tool Type
Compound Miter Saw
Bench or Stationary
Bench
Bevel Type
Dual
Blade Diameter (in.)
12
Color Family
Silver
Cord Length (ft.)
8
Cordless/ Corded
Corded
Dust Collection Method
Bag
Electric Brake
Yes
Lockout Power Switch
No
Maximum Cutting Thickness (in.)
6
Maximum Degree Bevel Cuts - Left
48 °
Maximum Degree Bevel Cuts - Right
48 °
Maximum Degree Miter Cuts - Left
52 °
Maximum Degree Miter Cuts - Right
52 °
Maximum Speed (rpm)
3200
Maximum miter capacity
52
No Tool Blade Change
No
Product Weight (lb.)
64.33lb
Reconditioned
No
Returnable
90-Day
Tools Product Type
Power Tool

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed,ETL Listed
Manufacturer Warranty
5 Year Limited Tool Warranty

More Products With These Features

Search

Questions & Answers

Milwaukee miter saws

What is the difference between model 6950-20 and 6955-20?
Asked by: Bob
The 6955 offers sliding capability.
Answered by: MilwaukeeElectric
Date published: 2015-09-17

Other than price, what is the difference between the Milwaukee 6950-20 and the 6955-20 saws?

Asked by: Rich
The 6955-20 is a sliding compound miter saw and the 6950-20 is a non-sliding compound miter saw. The sliding feature provides a wider miter range, and greater cut capacity. Miter Range: 6955-20 = 55 degrees to the left and 60 degrees to the right 6950-20 = 52 degrees to the left and the right Cut Capacity (dimensional material): 45 degree bevel cut: 6955-20: 2”x14” 6950-20: 2”x10” 90 degree miter cut: 6955-20: 2”x 14” 6950-20: 2”x 10” 45 degree miter cut: 6955-20: 2”x 10” 6950-20: 2”x 8”
Answered by: MilwaukeeElectric
Date published: 2015-09-17
  • y_2017, m_9, d_23, h_19CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_, sid_202947872, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 126ms
  • QUESTIONS, PRODUCT

Customer Reviews

12 in. Dual Bevel Miter Saw is rated 4.6 out of 5 by 5.
Rated 5 out of 5 by from I use one of these daily As a deck builder I use this saw everyday. It has a better feel to it than most saws in its category. I would recommend this to anyone who needs a powerful, yet safe and easy to use miter saw.
Date published: 2012-06-14
Rated 5 out of 5 by from Excellent Professional Product Used this last summer for a major bathroom renovation. Lots of crown moulding and all new flooring, sub floor, floor joists, new walls, etc. Used this saw exclusively for both fine and rough work. My contractor was so impressed he decided to buy one of his own and ended up using my saw over his other brand.
Date published: 2013-11-18
Rated 4 out of 5 by from Hi Tech Saw Looks Pretty Lets Get Er Dun In The Functional Picture Diagram #8 & #9 each Fence, has 2 holes, #19 Face board mounting holes. Whats this for, I don't know ?. Also #11 Fine Adjustment ring I still haven't figured this out yet ! I Love this Saw and have not cut a single Piece of wood yet, But in 40 years I've cut a pile, can't wait to sing into a few grains.
Date published: 2014-01-12
Rated 4 out of 5 by from So Far So Good ! would give 5 stars, but disappointed that it does not have lazer cutting guide.
Date published: 2013-10-31
Rated 5 out of 5 by from A Professional product !! ?? IS there a Lazer Guide that I can install for this unit ??? ....
Date published: 2013-07-27
