Model # MP120DFP

Internet #205488021

Store SKU #1001207244

Store SO SKU #516939

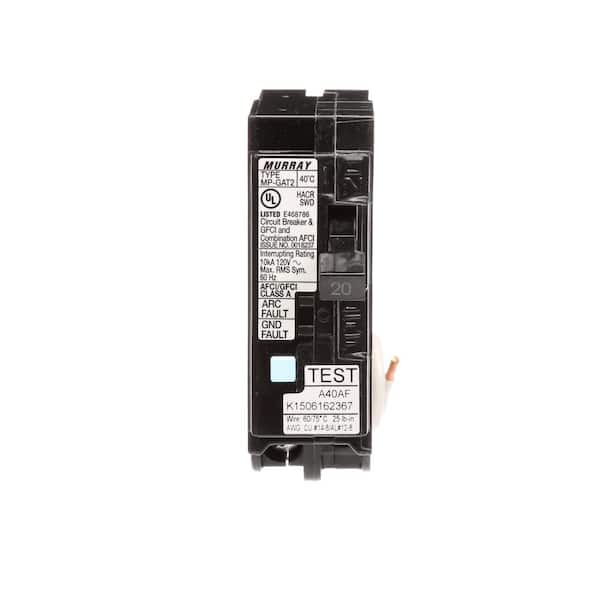

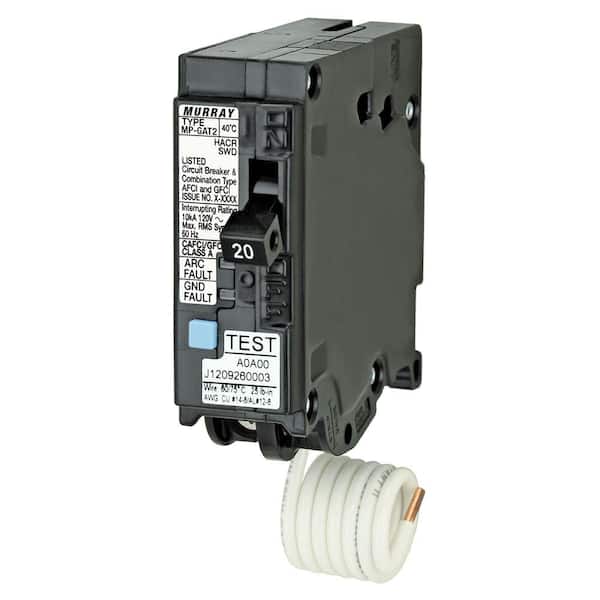

Murray 20 Amp AFCI/GFCI Dual Function Circuit Breaker
0887621817299

Murray

20 Amp AFCI/GFCI Dual Function Circuit Breaker

  • LED Trip Indicators identify the cause of the last AFCI trip
  • Satisfies AFCI/GFCI requirements set forth by 2014 NEC
  • Save time and money by combining two safety devices into one
$4997 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Dual Function Circuit Breaker combines GFCI and AFCI, protecting against both Arc Faults and Ground Faults. This, along with the new Self-Test and Lockout feature, makes it the first in class in electrical safety for homeowners. The 2014 National Electrical Code (NEC) now requires both Arc Fault and Ground Fault protection on kitchen and laundry circuits. Before the release of Dual Function Circuit Breakers, the only option to comply with this code was to pair an AFCI circuit breaker with a GFCI receptacle. The Dual Function Circuit breaker combines these 2 devices into once solution that provides both cost savings and less hassle in installation and maintenance. This is a win solution for everyone. Testing GFCI's and AFCI's on a monthly basis is a good idea that is sometimes forgotten. Underwriters Laboratories (UL) suggests that AFCI/GFCI devices be tested every 30 days after installation to ensure they are properly working. Now the new Self-Test and Lockout feature enables the Dual Function Circuit Breaker to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself and locks out the homeowner from resetting the device, reducing the possibility of the homeowner incorrectly assuming that the device was tripped to prevent a ground/arc fault. This effortless system guarantees that only the best protection is given to your home at all times.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$44.97 /each
$46.97 /each
$49.97 /each
$54.47 /each
Name 20 Amp AFCI/GFCI Dual Function Circuit Breaker 20 Amp AFCI/GFCI Dual Function Circuit Breaker 15 Amp Single Pole Type MP-GT2 GFCI Circuit Breaker 20 Amp Single Pole Type MP-GT2 GFCI Circuit Breaker
Brand Siemens Murray Murray Murray
Ratings (4) (1) (1) (2)
Interruption Type Dual Function (C/AFCI and GFCI) Dual Function (C/AFCI and GFCI) GFCI GFCI
Product Width (in.) 6.5 in 1 1 1
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 20 20 15 20
Power Distribution Features No Additional Features No Additional Features No Additional Features No Additional Features
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
5
Product Height (in.)
3.5
Product Width (in.)
1

Details

Breaker Type
Single Pole
Electrical Product Type
Breaker
Interruption Type
Dual Function (C/AFCI and GFCI)
Maximum Amperage (amps)
20
Mounting type
Plug In
Number of Poles
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
2.5lb
Returnable
90-Day
Voltage (volts)
120

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 Year

More Products With These Features

Search

Customer Questions & Answers

Is this breaker UL listed for use in a Murray LC1224L1125 load center? The panel does not list t...

Is this breaker UL listed for use in a Murray LC1224L1125 load center? The panel does not list the breaker as being listed but maybe it was updated.
Asked by: Adrianne
Yes, this is UL listed for it.
Answered by: SIEMENS Product Expert
Date published: 2017-03-02

Will this breaker insert into a Square D panel?

Will this breaker insert into a Square D panel?
Asked by: Dave
Dave, this will not fit or work properly in a square d panel. Rule of thumb is, same breaker brand as the panel. Thanks
Answered by: SIEMENS Product Expert
Date published: 2017-02-16

I have a Westinghouse Electric panel with a Murray Main Breaker (circa 1987) Can not determine the make of the existing GFI breaker, will this UnitFit

Example: I have looked at the manual and can't figure out what I did wrong.
Asked by: Nick
Hi Nick, My recommendation would be to check what brand of branch circuit breakers are in the panel currently. I cannot confirm if Murray circuit breakers are direct replacements for old Westinghouse panels.
Answered by: SIEMENS Product Expert
Date published: 2016-09-01

Is this item available in any PA store

Example: I have looked at the manual and can't figure out what I did wrong.
Asked by: Nick
Thank you for your recent inquiry with The Home Depot. For further assistance, please contact your local store or call our Customer Support team at 800-430-3376. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot.
Answered by: THDSupport
Date published: 2016-08-30
  • y_2017, m_8, d_13, h_23CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_5
  • loc_, sid_205488021, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 17ms
  • QUESTIONS, PRODUCT

Customer Reviews

20 Amp AFCI/GFCI Dual Function Circuit Breaker is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from New product review This product is new and was placed in the circuitry to satisfy city building codes which required gfci and afci protection for all bathroom lighting and fan power. Time will tell if this new product is stable as other old technology circuit breakers. Currently it works as advertised and satisfies the building inspector.
Date published: 2015-04-08
