Model # WS136SS

Internet #100491176

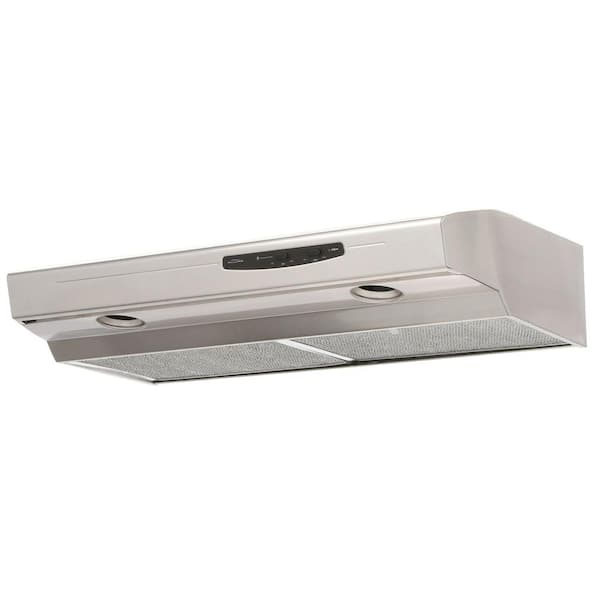

NuTone Allure I Series 36 in. Convertible Range Hood in Stainless Steel

Discontinued NuTone

Allure I Series 36 in. Convertible Range Hood in Stainless Steel

Frequently Bought Together

Product Overview

The Allure I line of range hoods feature quiet blowers, exceptional ventilation performance and bright lighting of work surfaces. They are 50% quieter than the average range hood. The design features a two speed contoured rocker switch control, smooth surfaces, a fully enclosed underside and 2 large aluminum dishwasher-safe filters that provide the easiest clean-up of any range hood. The dual halogen light system (bulbs not included) is designed to flood your cooking surface with a bright light, the low light setting provides the perfect night light. The axial blade system eliminates smoke and moisture more quietly and effectively than the average hood or over-the-range microwave. Allure simply performs better than any other hood.

  • All models offer four way convertibility with 3-1/4 in. x 10 in. (horizontal and vertical), 7 in. round (vertical) and non-ducted

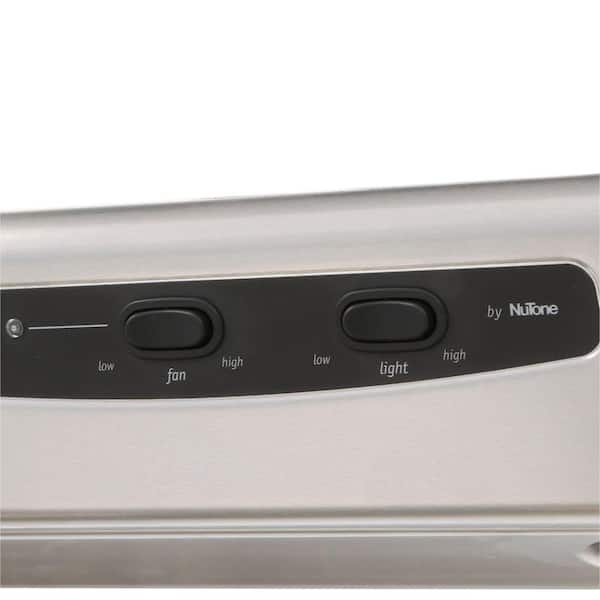

  • Rocker controls offer easy operation
  • 2-speed rocker control for convenient operation
  • 220 CFM high blower setting helps quickly remove smoke and cooking odors from the air
  • Quiet operation as low as 1.5 sones for a peaceful kitchen environment
  • Large full filter design with 2 aluminum micro-mesh filters that are dishwasher safe for easy cleaning
  • 2-level dual halogen light system floods your cooking surface with bright light (2 PAR20 flood lights not included)
  • Low-light setting provides the perfect night light
  • Clean contoured appearance with no sharp edges
  • Brushed stainless steel finish
  • UL listed
  • HVI-2100 certified

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.




Warranty / Certifications

More Products With These Features


Customer Questions & Answers

Does this vent hood PLUG in ?

Based on a review I read, I'm questioning that this unit plugs in. My current one does and this would be a replacement for it.
Asked by: Betonit
The WS136SS is designed to be a hard-wired installation. However, if you need it to be a plug-in, then the range hood can be converted to plug in. You would need to purchase the cord kit, SHCK44, separately.
Answered by: NuToneCustomerSupport
Date published: 2016-03-08

Are there NuTone Allure I Series 36 in replacement filters to buy for back up?

Asked by: Anonymous
No, not the correct size.
Answered by: Mike
Date published: 2015-09-20


Where can I buy the replacement non-ducted filters (charcoal) for my NuTone WS136SS in San Diego?
Asked by: Rosa
The part number for the filter is S99010309. It can be ordered at your local Home Depot Store at the Special Order Desk.
Answered by: NuToneCustomerSupport
Date published: 2015-10-29

What do they mean "ductless"?

Asked by: bettyboop
ductless means that it vents back into the room after filtering the air, ducted would be where the exhaust air is directed to the exterior of the home
Answered by: Kevin
Date published: 2016-10-09

I picked one of these up today but noticed some very slight spot weld marks along the outer edges of the top panel where it curves around.

Is this typical of all of these units or did I get a bad one? It seems as if it would be typical as that panel has to attach to the side panels somehow.
Asked by: Blackmax
You should not see any spot weld marks on the hood. Please return it to the store. If you have questions and would like to speak with a person, dial 888-336-6151 and our Technical Support Department can assist you. Thank you.
Answered by: NuToneCustomerSupport
Date published: 2016-09-12

What is the recommended height above cooking surface for this range hood?

Asked by: InMNnow
The recommended height from the cooking surface to the bottom of the range hood is 16.75 - 22.75 inches.
Answered by: NuToneCustomerSupport
Date published: 2016-05-03

want charcoal filter for venthood how do i get one?

want charcoal filter for venthood how do i get one?
Asked by: bill
IF you know that you have the Allure I Series range hood and you need the charcoal filter for the 36", the model number is S99010309 and can be purchased on Home Depot's site. IF you do not have the Allure I in 36", find your model number and the name of the manufacturer on the range hood. Then, give us a call at 888-336-3948 and our Customer Service Department can help identify what you need. Thank you.
Answered by: NuToneCustomerSupport
Date published: 2016-11-03

can I purchase just a fan in the rang hood of Nu Tone Allure model # WS136SS / serries 36 inch

Asked by: Anonymous
Hi, Kelvin. Thank you for your question on the WS1136SS Range Hood. Yes, the replacement parts are available. The part to order is SR99080535. This is available to purchase two ways. 1. Go to your local Home Depot store and they can special order the part. Or 2. Call our Customer Service group at 888-336-3948 and they can take an order for replacement parts. Have a good day!
Answered by: NuToneCustomerSupport
Date published: 2016-07-21
  • y_2017, m_2, d_15, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_0.0
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_31
  • loc_, sid_100491176, prod, sort_[]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 71ms

Customer Reviews

Allure I Series 36 in. Convertible Range Hood in Stainless Steel is rated 4.3 out of 5 by 101.
Rated 5 out of 5 by from Great Vent Hood at an AMAZING Price!!!! I initially purchased the 30" (same style/color) to install above my 30" cook top. Unfortunately, the space available and the vent hood I was replacing was a 36" width, so I returned this hood and purchased this hood in the 36" width and it's perfect! As always, Home Depot was great with the return and new purchase, with the exception that I had purchased a two year warranty on the 30" and the Return Desk was unable to process the credit for the 30" Vent Hood. I need to call their 800# to have that charge credited. It's great to have a very reasonable (price) option for a Vent Hood. Many of the options at appliance stores are at least $500.00 and can easily go up to 2K.
Date published: 2016-10-11
Rated 5 out of 5 by from Great hood! This is a really nice hood for the money. Both speeds are really quiet but move a lot of air. Installation was fine other than needing an extra set of hands when it was time to mount it. I experimented with several types of bulbs. I wanted to go with LED but none are rated for those temps. I finally settled on GE Reveal 34 watt par20 halogen floods. The color temp is really nice and they give just the right amount of light on both settings. They are also a little shorter than most bulbs so they fit up inside nicely. Give these a try and you'll be happy with them.
Date published: 2016-09-14
Rated 5 out of 5 by from Great range hood Replaced an old Whirlpool hood with this. Installation was relatively easy. The only issue I ran into was the spacing of the mounting holes. They were the same distance apart as the old one in depth, but were about 3/4" inward from the old one in width. Utilized two pieces of 1"x1" molding to adjust for this. I did install as a nonvented hood. The additional filters required did not indicate whether or not they had the required attaching clips packed with them-which fortunately they did. I did use LED PAR20 bulbs, which is not recommended, but they work fine on the high setting
Date published: 2016-08-21
Rated 5 out of 5 by from Extremely Happy With This Hood This was relatively easy to install with the help of a friend. It looks great. It gives off plenty of light with the two recommended mini floods (NOT included). The two-setting fan does a good job. It's easy to keep clean. I have a 36 inch Viking Hood at my other place that cost 5 times what this one cost and except for the different type filters, adjustable light and adjustable fan strength, I like this one just as much. The only negative comment I have about this hood is that the brighter setting on the lights is too bright, but it would make a great light to flip on in the middle of the night if you didn't want to turn on your main kitchen lights; it's that bright. 95% of the time I just use the low light setting which illuminates the entire stove top very well. I recommend this hood. I got the black at a nice discount but even the $229 retail is a great price!
Date published: 2016-10-18
Rated 5 out of 5 by from Very nice vent hood I installed this for my mom to replace the her old one that I installed over ... Very nice vent hood I installed this for my mom to replace the her old one that I installed over 35 years ago, still worked but had lost most of it's finish. This Allure vent hood is a great improvement,not only does it look good it functions very well also. I put 2 par 20 dimmable lights in it and on high it is very bright so you can really see what you are doing. At night she keeps it on low kind of as a night lght so when she goes in the kitchen she can still see well and doesn't have to turn on the main lighting. When the vent hood is on low you can barely hear it running and on high it's really not that loud either. Really like the 2 grease screens that fit on the bottom, looks alot nicer than her old one which was open on the bottom. they are very easy to remove when you have to clean them, you can even put them in your dishwasher. I am very happy with the looks and functions of this unit,it was very easy to install and the smile on my moms face after getting it installed and not haveing to look at the ugly one she had is priceless.I highly recommend this range hood for anyone wanting to upgrade.
Date published: 2016-11-08
Rated 4 out of 5 by from Overall, a very nice hood. This was a very nice upgrade from our cheaply made original vent hood. Installation was very quick. The quality of the lighting is outstanding and the vent motor is virtually silent on low, but a bit loud on high. To get a quieter hood the price goes up substantially though, so easily live with the trade off. Only complaint is a less effective draft on the front burners, as the lighted portion of the hood somewhat blocks the flow from the intake. You could light a bonfire under the back burners though with little or no smoke escaping. This is a good looking and good performing vent hood for the price with lighting that is far above average.
Date published: 2016-04-15
Rated 4 out of 5 by from This is a range hood and it works exactly as it should but it is not in constant use. The only d... This is a range hood and it works exactly as it should but it is not in constant use. The only difficulty is with the lights because with the new type of light bulbs, LED or whatever they are, you cannot put the lights on low. They only function on high. This was the same problem with the previous range hood that I replaced. Once we started using the new light bulbs, they must be used on high.
Date published: 2016-12-15
Rated 4 out of 5 by from We installed this last weekend. The install is pretty straightforward, but my husband watched a v... We installed this last weekend. The install is pretty straightforward, but my husband watched a video online to help. We replace a hood from the 70's with this and of course the contrast between the two was striking. The fan on this hood is very quiet on low and louder on high. It does an absolutely phenomenal job of sucking smoke, steam and smells. I am thrilled. The lowest point of the front of the hood is higher, which leads to one upside and two downsides. The upside is that there is no no longer any danger of me hitting my forehead on the corner of the hood. The downsides are not deal breakers, but it's good to be aware of them: because the top of the hood goes toward you at a higher level, it is no longer as easy to reach into the cabinet mounted above my range; also the lights--which have two levels of brightness--are much more in my face that my previous hood which had them mounted up in the hood.
Date published: 2016-12-01
