0648846052724

RIDGID

Model R4512

Internet #202500206

Store SKU #155225

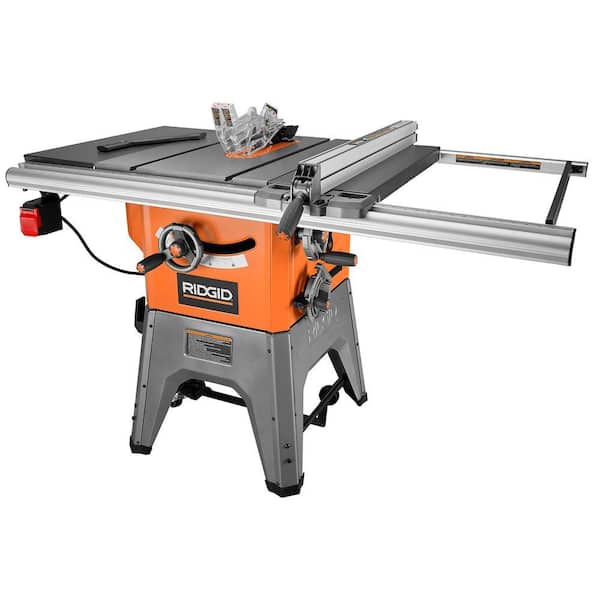

13 Amp 10 in. Professional Cast Iron Table Saw

$549.00 /each
  • 13 Amp motor delivers up to 3450 RPM
  • Cast iron table minimizes vibration
  • Backed by The RIDGID Lifetime Service Agreement

Frequently Bought Together

Product Overview

Rigid Hero
Feature 1

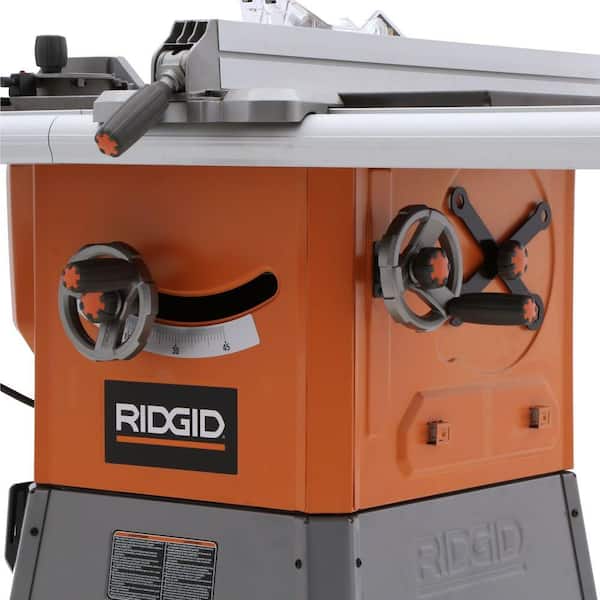

Get precise, smooth adjustments with front and back-clamping rip fence with extra-large glides

Feature 2

Makes a range of useful cuts - maximum cut depth of 2-1/4 in. at 45 degrees and 3-1/4 in. at 90 degrees

Feature 3

Easily reposition saw with single-action foot pedal

Specification Icon


Amperage

______________________________

13 amps

Specification Icon


rip capacity

______________________________

30 in.

Specification Icon


dado capacity

______________________________

13/16 in.

Specification Icon


Warranty

______________________________

LSA

WITH REGISTRATION

This RIDGID 10 in. Professional Table Saw features a powerful, 13 Amp motor for speeds up to 3450 RPM. The cast iron table's milled and polished surface minimizes vibration and provides a flat, level surface for trouble-free cutting. There is a blade guard for safety. Customize your table by adding an extension or auxiliary tables for routers or other specialty tools.

California residents: see   Proposition 65 information

  • 13 Amp motor delivers up to 3450 RPM to help you power through tough jobs
  • Front and back-clamping aluminum rip fence has extra-large glides to provide precise and smooth adjustments along the rail
  • Includes T-slots for the variable placement of accessories such as fences and sacrificial fences (not included)
  • Built-in accessory slots for installing auxiliary fences that support large work pieces
  • Customizable design so you can add an extension table or auxiliary tables (not included) for routers or other specialty tools
  • Die-cast mitre gauge with positive stops for accurate cuts
  • Built-in accessory storage keeps accessories nearby
  • Large over-mold handle provides a comfortable and secure grip
  • Single-action foot pedal helps you reposition the saw with ease
  • Maximum cut depth of 2-1/4 in. at 45 Degree and 3-1/4 in. at 90 Degrees For a variety of useful cuts
  • 3-year warranty and lifetime service agreement with tool registration
  • Blade guard for safety
  • Note: Product may vary by store; call to confirm brand/model # availability
  • Click Here to Register Your Productbr /br /centera href="http://register.ridgidpower.com/sign-in" target="_blank"Test Item/a/centerbr /
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

176 Questions914 Answers

Customer Questions & Answers

13 Amp 10 in. Professional Cast Iron Table Saw
13 Amp 10 in. Professional Cast Iron Table Saw

Ask your questions. Share your answers.



Clear Search Term


Sort By:

18 answers

What is the advantage to wiring the table saw for 240v rather then 120v?

This question is from 13 Amp 10 in. Professional Cast Iron Table Saw
Asked by
Sudbury Ontario canada
Read all my Q&A
December 27, 2013
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (18)

Asked by
Katy, Tx
Read all my Q&A
Home Improvement Profile: DIYer
January 4, 2016
Answer:
One aspect not addressed in all the other answers is startup time. SInce 220V draws half the amperage, the excess current draw at startup time doesn't slow it down. But in the 110V mode, it make take 4-5 seconds to get up to speed. The other aspect is when you load the saw down, and it draws more current, the line loss is higher for 110V operation so it slows down more.
I have wired my saw for 110 and
Read More
One aspect not addressed in all the other answers is startup time. SInce 220V draws half the amperage, the excess current draw at startup time doesn't slow it down. But in the 110V mode, it make take 4-5 seconds to get up to speed. The other aspect is when you load the saw down, and it draws more current, the line loss is higher for 110V operation so it slows down more.
I have wired my saw for 110 and 220 and 220 is far better (if you have it available)
Read Less
+2points
4out of 6found this answer helpful.
Was this helpful?helpful4unhelpful2

Asked by
Minneapolis, MN
Read all my Q&A
Home Improvement Profile: DIYer
October 26, 2015
Answer:
Contrary to common belief rewiring a motor for 220 volts DOES NOT make the motor more powerful. The only benefit is that the motor will run cooler because it consumes half of the amps at 220 volts as compared to amps consumed at 110 volts. Unless you understand OHMS LAW this is counter-intuitive but it is a fact. A cooler running motor lasts longer. If a saw is used primarily for hobby / home projects Read More
Contrary to common belief rewiring a motor for 220 volts DOES NOT make the motor more powerful. The only benefit is that the motor will run cooler because it consumes half of the amps at 220 volts as compared to amps consumed at 110 volts. Unless you understand OHMS LAW this is counter-intuitive but it is a fact. A cooler running motor lasts longer. If a saw is used primarily for hobby / home projects the heat generated by 110 volts is highly unlikely to noticeably affect the useful life of the saw. So, unless a 220 volt power source is already available the cost of installing it really doesn't make sense to the typical hobbyist / home user. If 220 volts is readily available it is the obvious choice. Read Less
+22points
22out of 22found this answer helpful.
Was this helpful?helpful22unhelpful0

Asked by
Takoma Park, MD
Read all my Q&A
Home Improvement Profile: DIYer
July 16, 2015
Answer:
Power is Volts X Current (amps). Power = Watts which is what your power (duh) company provides. Therefore, cutting the amps in half by going to 240 (double the voltage) is a wash with concern to power. Doesn't save you anything, but what others say about running cooler, I doubt it. Same power means same amount of heating.
-10points
6out of 22found this answer helpful.
Was this helpful?helpful6unhelpful16

Asked by
Clifton Park, New York
Read all my Q&A
Home Improvement Profile: Professional
May 25, 2015
Answer:
Short answer... 230 volts uses less current and generates less heat on your saw's motor. Heat is not good for a motor's lifespan.
Your saw's motor needs a certain amount of Power in order to turn it's rotor and blade. Power is a combination of two things, voltage and current or amps. Power = Voltage x Current (amps). If you are using a 115 volt outlet and your amp rating/requirement for the motor is Read More
Short answer... 230 volts uses less current and generates less heat on your saw's motor. Heat is not good for a motor's lifespan.
Your saw's motor needs a certain amount of Power in order to turn it's rotor and blade. Power is a combination of two things, voltage and current or amps. Power = Voltage x Current (amps). If you are using a 115 volt outlet and your amp rating/requirement for the motor is 13amps (as stated on the box), your motor will need to be on (no less than) a 15 amp circuit breaker. Ideally, if you are using a 115 volt circuit, you will want the unit to be on a 20 amp circuit. This will help avoid tripping the circuit breaker due to excessive current draw as you put work through your saw. The more load you put on your saw, the more current it will draw through its motor windings (in order to make the rotor and blade turn). When you increase your saw's voltage to 230 volts, less current is needed to maintain the same amount of power. Look at the equation above. Again, if Voltage doubles from 115volts to 230 volts, you in essence can drop your current in half and still provide your saw the same amount of power that it requires. This drop in current/amps will expose your saw's motor to less heat on its windings and, thus, increase its lifespan. Less heat is very good for a motor. Read Less
+13points
15out of 17found this answer helpful.
Was this helpful?helpful15unhelpful2

Asked by
Chicago
Read all my Q&A
Home Improvement Profile: DIYer
January 25, 2014
Answer:
Hi dapatch,
I'm glad you asked because there is often a lot of confusion around this topic. In short, there are probably only 2 advantages of converting to 240v that would ever apply to the average user.
1) If the table saw is located a far distance from the original breaker box (say, 150-200 ft+) a larger voltage will reduce the effects of something called voltage drop, a problem most common at Read More
Hi dapatch,
I'm glad you asked because there is often a lot of confusion around this topic. In short, there are probably only 2 advantages of converting to 240v that would ever apply to the average user.
1) If the table saw is located a far distance from the original breaker box (say, 150-200 ft+) a larger voltage will reduce the effects of something called voltage drop, a problem most common at start-up. If you trip a breaker and/or your saw if slow to get up to speed (in the first 2-5 seconds), then you might be experiencing this issue.
2) If you had an existing 120v circuit with 3 wires (+ ground) but the wires were too small to safely supply the power to the tool, you can convert it to 240v. It would then pull 50% less current through each wire thus allowing for safe use of the smaller wires. This can save you some install money, but only if you have the right number and type of wires to begin with.
Common misconceptions are that 240v will make your motor turn faster, generate more power, or consume less electricity and save money. These are all myths.
If you find you trip the breaker often, then 240v might be the answer for you. But a properly sized 120v circuit should rarely give you a problem.
Hope this helps and best of luck!
+58points
58out of 58found this answer helpful.
Was this helpful?helpful58unhelpful0

Asked by
Henderson, NV, USA
Read all my Q&A
January 24, 2014
Answer:
None, really. The saw works quite well at 110.
-4points
5out of 14found this answer helpful.
Was this helpful?helpful5unhelpful9

Asked by
Drummond Island, Michigan
Read all my Q&A
Home Improvement Profile: Professional
January 24, 2014
Answer:
It's cheaper to run at 220v then 120v.
-45points
1out of 47found this answer helpful.
Was this helpful?helpful1unhelpful46

Asked by
Read all my Q&A
Home Improvement Profile: DIYer
January 24, 2014
Answer:
The response above that states running on 240v will save money on electricity is incorrect. Power companies bill by killowatt/hours. The saw will consume nearly the same wattage whether it's run on 120v or 240v.
It's very possible to see an improvement in performance by switching to 240v if the 120v is not up to par, which is not uncommon. That improvement varies with each circuit. In theory, a good Read More
The response above that states running on 240v will save money on electricity is incorrect. Power companies bill by killowatt/hours. The saw will consume nearly the same wattage whether it's run on 120v or 240v.
It's very possible to see an improvement in performance by switching to 240v if the 120v is not up to par, which is not uncommon. That improvement varies with each circuit. In theory, a good 120v circuit will provide the same results, but in the real world, voltage loss is pretty common, and is remedied by a 240v circuit or an adequate 120v circuit. 240v will nearly always handle the amperage peaks better because it's never as close to it's max capacity, and is actually less expensive to wire for. If you have 240v readily available, switching is feasible. If you don't have 240v, it may not be worth pursuing unless you have overload issues, or are going to run new wire anyway. Read Less
+22points
26out of 30found this answer helpful.
Was this helpful?helpful26unhelpful4

Asked by
Michigan
Read all my Q&A
Home Improvement Profile: DIYer
January 24, 2014
Answer:
I don't think this saw will convert to 220v and the motor is not accessible if is..
-37points
1out of 39found this answer helpful.
Was this helpful?helpful1unhelpful38

Asked by
Carol Stream , IL, USA
Read all my Q&A
January 23, 2014
Answer:
Higher voltage means lower amperage. That saves you money.
-43points
3out of 49found this answer helpful.
Was this helpful?helpful3unhelpful46

Asked by
Read all my Q&A
Home Improvement Profile: DIYer
January 23, 2014
Answer:
I run this table saw at 120v, but I believe rewiring for 240v would draw less power (half the amps) and would be easier on the motor, leading to longer motor life.
-4points
10out of 24found this answer helpful.
Was this helpful?helpful10unhelpful14

Asked by
Marietta, GA, USA
Read all my Q&A
January 23, 2014
Answer:
NO real advantage. Supposedly it will make the saw run stronger and cooler but there is debate over this issue.
-9points
6out of 21found this answer helpful.
Was this helpful?helpful6unhelpful15

Asked by
Marietta, GA, USA
Read all my Q&A
January 23, 2014
Answer:
Supposedly the saw will run better at 240V than 110V but as long as you are not running multiple tools on the same circuit, or using a long extension cord, 110V should perform basically the same.
-6points
2out of 10found this answer helpful.
Was this helpful?helpful2unhelpful8

Asked by
Read all my Q&A
January 23, 2014
Answer:
220v divides the amperage across two hot leads, vs one, which in turn balances out the load on your electrical box, reduces voltage loss and overload of the circuit, and allows for smaller gauge wire. Avoiding voltage loss also tends to keep the motor cooler. Many claim that not starving the saw for amperage makes it start and recover more quickly, but it depends a great deal on your particular circuit. Read More
220v divides the amperage across two hot leads, vs one, which in turn balances out the load on your electrical box, reduces voltage loss and overload of the circuit, and allows for smaller gauge wire. Avoiding voltage loss also tends to keep the motor cooler. Many claim that not starving the saw for amperage makes it start and recover more quickly, but it depends a great deal on your particular circuit. Worth doing if you have 220 readily available..... Read Less
+12points
13out of 14found this answer helpful.
Was this helpful?helpful13unhelpful1

Asked by
Tracy, CA, USA
Read all my Q&A
January 14, 2014
Answer:
The saw will run more efficiently and it will use less energy. If you run the saw enough you'll notice a difference in your PG&E bill if you run the saw on 240v rather than 120v, but you might not have a 240v outlet in your home/workplace. If you don't you'll have to get an electrician out there to put one in. It's better to run the saw on 240v, but you shouldn't see much of a difference in overall Read More
The saw will run more efficiently and it will use less energy. If you run the saw enough you'll notice a difference in your PG&E bill if you run the saw on 240v rather than 120v, but you might not have a 240v outlet in your home/workplace. If you don't you'll have to get an electrician out there to put one in. It's better to run the saw on 240v, but you shouldn't see much of a difference in overall performance one way or the other. Read Less
-20points
2out of 24found this answer helpful.
Was this helpful?helpful2unhelpful22

Asked by
Anonymous
Las Cruces, NM
Home Improvement Profile: DIYer
January 10, 2014
Answer:
I am about to have mine rewired for 240v. It is my understanding that by doing that there is less strain put on the motor which should increase power and lengthen the life of the motor.
If anyone knows that I am incorrect here, please post a comment & let me know what I have wrong.
+3points
6out of 9found this answer helpful.
Was this helpful?helpful6unhelpful3

Asked by
Annapolis, Md
Read all my Q&A
Home Improvement Profile: DIYer
January 4, 2014
Answer:
I'm sure there is an electrical engineer out there that can give you a more technically accurate answer related to the power delivery and loss coefficient over wires as you switch from 120v to 240v. But I'll give it a shot.
A motor running at a twice the voltage will essentially use half the current (amps) to deliver the same power (Power=Volts x Amps). The decrease in amperage when using 240v causes Read More
I'm sure there is an electrical engineer out there that can give you a more technically accurate answer related to the power delivery and loss coefficient over wires as you switch from 120v to 240v. But I'll give it a shot.
A motor running at a twice the voltage will essentially use half the current (amps) to deliver the same power (Power=Volts x Amps). The decrease in amperage when using 240v causes less "loss' over the wires since the current is less by 1/2 even the though the total power is the same. Less current also cause less heat. Heat is generally bad for motors.
From a more practical perspective,,, when I switched my saw (not this model) from 120v to 240v, I immediately noticed a faster start-up and less "lugging" with thick hardwoods (especially in very cold weather as my saw in is the garage and I drag it outdoors for cuts).
Note that it will cost you some bucks to make the switch... unless you already have a 240v receptacle and a 240v plug/wire assembly for the saw. I'm guessing parts will cost you maybe $75-$125; and probably another $100-$250 for an electrician to put in the receptacle if you aren't comfortable working with 240v wiring.
Note that 240v receptacles and plugs are different based on the current delivery capability. Meaning a 20amp setup plugs/receptacles are different than a 30amp. So if you already have a receptacle be sure you either take a picture of the receptacle or looking carefully for the amp rating on the receptacle before you buy the necessary plug.
I'm sure others will have a different opinion but if practical for other reasons, I believe 240v will always perform "better" then 120v. Whether you need that additional "bang" is dependent on how you use your tool. Read Less
+32points
32out of 32found this answer helpful.
Was this helpful?helpful32unhelpful0

Asked by
Read all my Q&A
December 30, 2013
Answer:
Wiring the saws motor to run on 240V verses 120V allows the motor to run cooler. That is the only real advantage.
+17points
22out of 27found this answer helpful.
Was this helpful?helpful22unhelpful5

12 answers

does this saw come with a blade?

This question is from 13 Amp 10 in. Professional Cast Iron Table Saw
Asked by
mmccutc01
brenham tx
June 13, 2013
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0

Answers (12)

Asked by
Read all my Q&A
January 23, 2014
Answer:
Yes, but buy a better one to optimize your investment....keep the stock blade for cutting construction stuff and junk wood. Infinity, Forrest, Ridge Carbide, Freud, Freud Diablo, CMT, Marples, Tenryu....all are much better blades.
+17points
17out of 17found this answer helpful.
Was this helpful?helpful17unhelpful0

Asked by
Rockville, MD, USA
Read all my Q&A
September 11, 2013
Answer:
Off course, are you kidding!!!.And it's a piece of garbage. Get a good blade.
+1point
5out of 9found this answer helpful.
Was this helpful?helpful5unhelpful4

Asked by
va
Read all my Q&A
September 5, 2013
Answer:
Yes. But only good for rough cutting.
+6points
6out of 6found this answer helpful.
Was this helpful?helpful6unhelpful0

Asked by
Wilton, CT, USA
Read all my Q&A
August 28, 2013
Answer:
Yes. A mid-grade thin-kerf ripping blade with the Ridgid brand on it.
+4points
4out of 4found this answer helpful.
Was this helpful?helpful4unhelpful0

Asked by
Drummond Island, Michigan
Read all my Q&A
August 10, 2013
Answer:
Yes
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Agawam, MA, USA
Read all my Q&A
July 1, 2013
Answer:
Yes, a 40 tooth (terrible quality) blade is included
+2points
3out of 4found this answer helpful.
Was this helpful?helpful3unhelpful1

Asked by
Middletown, CT, USA
Read all my Q&A
June 17, 2013
Answer:
yes a blade is attached to the side cabinet
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Clarkston, MI 48346, USA
Read all my Q&A
June 14, 2013
Answer:
Yes, this saw comes with a 10" carbide tipped Combination (Ripping and Crosscut) blade. Same brand as the saw.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Huntsville, AL, USA
Read all my Q&A
June 14, 2013
Answer:
Yes, the saw comes with a 40 tooth rip/crosscut combo blade. The saw is awesome, but the blade it comes with is not the greatest. It works, but to get the best from the saw, you'll want to expand your blade collection. Freund Diablo blades are much better, and reasonably priced at Home Depot. If you want tip-top preformance, check out the Forrest Woodworker. Pricey, but gives you true professional Read More
Yes, the saw comes with a 40 tooth rip/crosscut combo blade. The saw is awesome, but the blade it comes with is not the greatest. It works, but to get the best from the saw, you'll want to expand your blade collection. Freund Diablo blades are much better, and reasonably priced at Home Depot. If you want tip-top preformance, check out the Forrest Woodworker. Pricey, but gives you true professional results. Read Less
+10points
10out of 10found this answer helpful.
Was this helpful?helpful10unhelpful0

Asked by
NC
Read all my Q&A
June 14, 2013
Answer:
Yes it comes with a blade
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
New Mexico, USA
Read all my Q&A
June 14, 2013
Answer:
Yes, the saw comes with a carbide tipped blade
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Read all my Q&A
June 14, 2013
Answer:
Yes
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

11 answers

Does the Riving knife travel with the blade up and down?

This question is from 13 Amp 10 in. Professional Cast Iron Table Saw
Asked by
portland
Read all my Q&A
December 19, 2013
It mentioned a Riving knife! its useless unless is moving with the blade
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (11)

Asked by
Agawam, MA, USA
Read all my Q&A
Home Improvement Profile: Professional
February 20, 2014
Answer:
Yes. It's a true riving knife; not a splitter
+5points
5out of 5found this answer helpful.
Was this helpful?helpful5unhelpful0

Asked by
Denver Colorado
Read all my Q&A
Home Improvement Profile: DIYer
February 4, 2014
Answer:
It does move up and down with the blade.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Memphis, TN, USA
Read all my Q&A
Home Improvement Profile: DIYer
January 25, 2014
Answer:
Yes, the riving knife travels up and down with the blade.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Michigan
Read all my Q&A
Home Improvement Profile: DIYer
January 24, 2014
Answer:
Yes.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

January 23, 2014
Answer:
Yes, the riving knife moves in exact correspondence to the blade.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Marietta, GA, USA
Read all my Q&A
January 23, 2014
Answer:
Yes
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
January 23, 2014
Answer:
That's what separates a riving knife from a splitter....
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Tracy, CA, USA
Read all my Q&A
January 14, 2014
Answer:
Yes, the riving knife moves up and down with the blade.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Read all my Q&A
January 10, 2014
Answer:
It moves up and down with the blade. In addition it has 2 positions up for thru cuts and down for non-thru cuts. Works very well....
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Anonymous
Las Cruces, NM
Home Improvement Profile: DIYer
January 10, 2014
Answer:
Yes. It absolutely travels with the blade.
It can be used in 1 of 2 methods also.
1 - for through cuts (high) and
2 - for non-through cuts (low).
+11points
11out of 11found this answer helpful.
Was this helpful?helpful11unhelpful0

Asked by
Read all my Q&A
December 20, 2013
Answer:
Yes, the RIDGID R4512 table saws riving knife travels up and down with the blade as the blade is raised or lowered.
+8points
8out of 8found this answer helpful.
Was this helpful?helpful8unhelpful0

11 answers

Do the screws hold the throat plate in place?

This question is from 13 Amp 10 in. Professional Cast Iron Table Saw
Asked by
Read all my Q&A
December 14, 2013
Probably seems like a dumb question but I am a rookie with this stuff. It seems obvious that the screws would hold it in place but once I did it it did not look right. Did not make sense to me that the screws weren't flush with the plate. And the assembly instructions never mention screws so I am thinking that the screws stay in the holes underneath the throat plate and throat plat simply slides into its slot?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (11)

Asked by
Agawam, MA, USA
Read all my Q&A
Home Improvement Profile: Professional
February 20, 2014
Answer:
The screws are to level the plate. The plate is held down with magnets and a latch in the rear
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Denver Colorado
Read all my Q&A
Home Improvement Profile: DIYer
February 4, 2014
Answer:
The throat plate sits on top of the adjustment screws. It is secured by small magnets and a single metal hook on the one end.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Memphis, TN, USA
Read all my Q&A
Home Improvement Profile: DIYer
January 25, 2014
Answer:
No. The throat plate is held in place by gravity and a small lip at the rear that fits under the table top. The screws go directly into the holes in the metal tabs under the throat plate and are adjusted from above after inserting the plate to properly level the plate.
+1point
2out of 3found this answer helpful.
Was this helpful?helpful2unhelpful1

Asked by
Henderson
Read all my Q&A
Home Improvement Profile: DIYer
January 24, 2014
Answer:
No, they simply are to adjust the plate so it will be flush with the table. The plate has a tab on the underside to prevent it from flipping out.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Michigan
Read all my Q&A
Home Improvement Profile: DIYer
January 24, 2014
Answer:
The answer is yes; however the cheep screws were too proud and caught the wood sliding across the table or scratched the wood. I replaced them with a better screw and took a counter sink and made them flush. I got the screws as hardware and they are stainless steel and cannot be recovered with a magnet. p.s. Buy extra screws as they fall or are knocked into the slot
-28points
0out of 28found this answer helpful.
Was this helpful?helpful0unhelpful28

Asked by
Marietta, GA, USA
Read all my Q&A
January 23, 2014
Answer:
The plate is held in place by magnets and gravity. The screws are meant to sit UNDER the plate and can be adjusted THROUGH the plate holes to level the top of the plate with the top of the table.
Do not remove the screws and put them through the top of the plate, this will only serve to create a potentially hazardous condition where your work piece could snag on an exposed screw head, or scratch your Read More
The plate is held in place by magnets and gravity. The screws are meant to sit UNDER the plate and can be adjusted THROUGH the plate holes to level the top of the plate with the top of the table.
Do not remove the screws and put them through the top of the plate, this will only serve to create a potentially hazardous condition where your work piece could snag on an exposed screw head, or scratch your work piece as it passes over the screw head. Read Less
+7points
7out of 7found this answer helpful.
Was this helpful?helpful7unhelpful0

Asked by
Tracy, CA, USA
Read all my Q&A
January 14, 2014
Answer:
You don't need to do anything with the screws. Just slip the throat plate into the slot. It should fit flush. I'd also recommend that you purchase an after market "zero tolerance" throat plate so that your work is well supported on each side of the blade. The stock throat plate is usable and will allow for all cuts at every bevel angle you need, but for straight 90 degree cuts (most of the cuts you'll Read More
You don't need to do anything with the screws. Just slip the throat plate into the slot. It should fit flush. I'd also recommend that you purchase an after market "zero tolerance" throat plate so that your work is well supported on each side of the blade. The stock throat plate is usable and will allow for all cuts at every bevel angle you need, but for straight 90 degree cuts (most of the cuts you'll make) a zero tolerance throat plate is best. They sell them on Amazon for $26.99. Read Less
+5points
5out of 5found this answer helpful.
Was this helpful?helpful5unhelpful0

Asked by
Read all my Q&A
January 10, 2014
Answer:
The screws go under the throat plate and act like set screws to adjust the height. The throat plate is held in place via a magnet and an extension.
+2points
3out of 4found this answer helpful.
Was this helpful?helpful3unhelpful1

Asked by
Anonymous
Las Cruces, NM
Home Improvement Profile: DIYer
January 10, 2014
Answer:
No, not exactly. The screws are raised and or lowered to level the plate. The plate would effectively sit on top of the screw heads. But the screws are adjustable through the plate or zero clearance insert.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Chicago
Read all my Q&A
Home Improvement Profile: DIYer
December 29, 2013
Answer:
Hi Rook,
On mine (purchased in 2005) there is a tab that slips under the rim and one countersunk screw on the opposite end that holds the plate down. The throat plate is rather thick and substantial and very flat. I have no fear of it warping or coming loose...though always make sure you have it secured to the table to the table.
Hope this helps! Happy woodworking!
TTM
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
December 16, 2013
Answer:
The throat plate is supposed to rest in the table opening, and the screws are to be adjusted to raise, lower, level the throat plate with the table surface. The rear tab on the underside of the throat plate and the magnet in the front of the opening in the table, serve to secure and hold the throat plate in place.
+13points
13out of 13found this answer helpful.
Was this helpful?helpful13unhelpful0
2 3 4 5  ... 10 »
  • 2016-08-21 T13:57:44.608-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202500206, prod, sort_default
2 3 4 5  ... 10 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 374ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.4 out of 5 by 492 reviewers.
Rated 5.0 out of 5.0 by Good Table Saw I couldn't wait to get rid of my old table saw from the 70's back when safety wasn't even thought of. None of the near by HomeDepot had the table saw in stock and the closest one to me was a little over a hundred miles. It would cost the same in my travel expense as the shipping. The freight company HomeDepot chose was awful. PRO number kept coming up as an error and once it worked it said it was delivered but i had not received my new table saw. Basically just drive and pickup you purchase. Ridgid lived up to its claim. Even tried the nickel test, and it worked great. If you purchases this table saw have someone help with the assembly, it was hard to stand up. August 2, 2016
Rated 5.0 out of 5.0 by My New Baby The saw was fairly easy to assemble following the instructions carefully. There are also u-tubes by other users that are helpful. It took me about 4 hours and 6 beers to put it together. The saw is amazingly quiet and makes smooth and accurate cuts. I am very pleased with my purchase. The rip fence slides smoothly across the table and is conveniently stored on the side of the saw in racks designed for that purpose. The same goes for the miter gauge. July 27, 2016
Rated 4.0 out of 5.0 by Nice Saw,. After setup and alignment it makes very good straight cuts. Takes time to set up right. July 19, 2016
Rated 5.0 out of 5.0 by Great table saw at a reasonable price. I am new to wood working and looked around at different brands/models for quite some time. I wanted something that would be safe, warrantied, semi-mobile, reasonably priced,and versatile. Another criteria that was important to me was that the capability of the saw would not limit the quality and workmanship of the items I produce. In other words, I wanted the limiting factor in my work to be me, not the saw. After careful consideration of many types, sizes, and brands of saws I decided the R4512 fit my requirements best. After purchasing the saw, it took me about 4 hours to carefully put it together. The instructions are great. One of the takeaways I learned was to ensure you have a reasonably fit partner to help you load, unload, and assemble this saw. I did it myself but it would have been exponentially easier to do with a helper. Also, while putting this saw together, you will have the option of installing a dust chute. Give this option careful consideration, if you choose not to install the dust chute at this point, it will take considerable work if you change your mind in the future and decide to install it. The saw blade was aligned almost perfectly out of the box. I did make a tiny adjustment to it, but the adjustment is easy and intuitive. I have a very limited work space, so I love how mobile the saw is. When I need it, I easily wheel it into position and when my work is complete, I wheel it back to its storage location. I am excited about the empty extension wing and plan to build an insert for a router station into it. Youtube has many videos showing how to do this. The Lifetime Service Agreement (LSA) through Ridgid was the ultimate factor that made me go with this product. My portion of the online registration process took about 5 minutes and was easy. However, it took two weeks for Ridgid to approve the LSA. No big deal, just be prepared to wait a little bit after you make the online submission. YOU MUST BE THE ORIGINAL OWNER AND GO THROUGH THE REGISTRATION PROCESS to be covered by the LSA. Without the LSA, your Ridgid product has a three year warranty. I hope I never have to exercise the LSA on this saw, it weighs close to 300 pounds and the closest Ridgid service center is about 90 miles away. However, I do sleep better knowing that in the event there is a problem years down the road, I am covered by the LSA. Finally a word of caution about the cast Iron surface on this saw. Once setup, I stripped all the oil off the surface of the saw and had to leave it for about 12 hours. When I returned, surface rust had already started to form on the exposed cast iron (see photo). I was able to quickly clean this up and fix the problem by applying several layers of paste wax on the surface. This is not a fault of the saw, down here in humid Gulfport, MS any exposed cast iron with do the same thing, I just wanted to make anyone reading this aware of the potential for rust. July 18, 2016
Rated 4.0 out of 5.0 by Great Table Saw!! Great table saw. This hybrid saw is very heavy and very sturdy! I set it up by myself and it took a few hours. Would highly recommend having someone else near by to help move. The most time consuming part is getting everything lined up and level. I've recently used the empty extension to add a router table. Fairly quiet for a table saw as well. There was one thing that threw me for a bit of a loop...most photos show it sitting on 4 casters but apparently the newer models (like mine) only have 3 casters that swivel. Still moves around really easy. Dialing in the accuracy also takes some patience but that's the case with most table saws. August 11, 2016
Rated 5.0 out of 5.0 by The VALUE of this Table Saw is Five Stars My shop is too small to use a table saw they way they are meant to be used. At this point, it's more of a place for me to store my tools. So I needed the BIGGEST 'little' saw I could find: one I could realistically move in and out because I do have to work outside. I live in 'sunny' Southern California and so, working outdoors is actually pleasant. I use a 'pop-up' tent and portable tools. I build fine furniture so, when it comes to table saws, I needed a higher level of precision. I needed the best of both worlds. More than a contractor's saw and less than a cabinet saw to heavy or large to move. My doorway is 34 inches wide and even with the fence system on that leaves me more than enough room to roll it in and out, using the casters that come with the unit. One step and the whole thing lifts up onto the wheels and moves easily. Release the wheels and the saw sets firmly, ready to take a full day's work. This table saw is smooth and powerful, runs on 110 volt household current and delivers enough power to cut through even exotic hardwoods. Following the instructional booklet, it assembled without fuss and was easy to fine tune into precise alignment. The steel wings fit well and can be leveled with the cast iron surface and the area to the right of the saw had just the right amount of room to easily add on a router table that can utilize the existing fence. For the money (and I did months of research) I found no better saw where I could get more of what I need (while not getting a saw that was too large or heavy to move around) for the money. It is smart, smooth and very capable. And the lifetime warranty that Ridgid offers is something nobody else offered. I use the Freud Diablo Industrial Grade Blades and they do make a difference, sharp, and clean and they hold their edge through the hardest woods. The fence system is accurate when adjusted and holds that adjustment well, even under the rigors of moving it in and out of the storage area. The offset, belt-drive motor allows for very smoooooth operation and a nickle actually will stand on edge without falling when you turn it on! The cast iron tabletop is smooth, well finished and true. The blade insert is fully adjustable and easy to remove and replace. I've already purchased the dado insert and a zero tolerance insert. My decision to purchase this saw was based on the need to get the most saw for the money with the portability I needed and the precision that fine furniture construction demands. I am not disappointed. I don't think there is a better table saw for the money out there. May 31, 2016
Rated 1.0 out of 5.0 by DO NOT BUY!!! The unit I took home and had mostly assembled was extremely flawed. I did not realize it until I righted up the table and inspected the tabletop itself. The top had a major 'hump' the the left of the blade, so severe that the height difference between the that hump and the rest of the tabletop was 1/32" as little as 7" away from that spot.. I detected it using my 2' metal level that should have sat nice and flat on the tabletop. It couldn't. I returned the unit and inspected the tabletop of another saw, in the store this time. While not as bad, that saw also had a hump in it. I gave up and bought someone else's table saw. I had even sent my photos to Ridgid to show them the defect and they agreed that the unit was bad and should be returned. March 22, 2016
Rated 5.0 out of 5.0 by great saw for the money! I bought this saw a few weeks ago. Had it assembled in under two hours. The ONLY adjustment I had to make was the fence. It was a 1/16 off on the far end. Thats it, everything else was dead on from the factory. pretty good considering it was shipped halfway around the woring This saw is a pleasure to use, smooth effortless cuts, fence stays true. such a drastic improvement from the portable saws i had been using. I switched it over to 240v Immediately so I can't really comment on how it works on 110. I had read reviews about how the LSA could be a nightmare to set up so I was pleasantly surprised when both this saw and the 6 1/8 jointer I bought were accepted within 24 hours of entering the info on the rigid website! maybe they've been listening to their customers! All in all the rigid tools and the home depot experience were great for me! March 29, 2016
  • 2016-08-22 T13:38:13.816-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_492, tr_492
  • loc_en_US, sid_202500206, prod, sort_default
2 3 4 5  ... 18 >>
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 58ms
  • REVIEWS, PRODUCT
