Model # 2711CP

Internet #203671627

Store SKU #472018

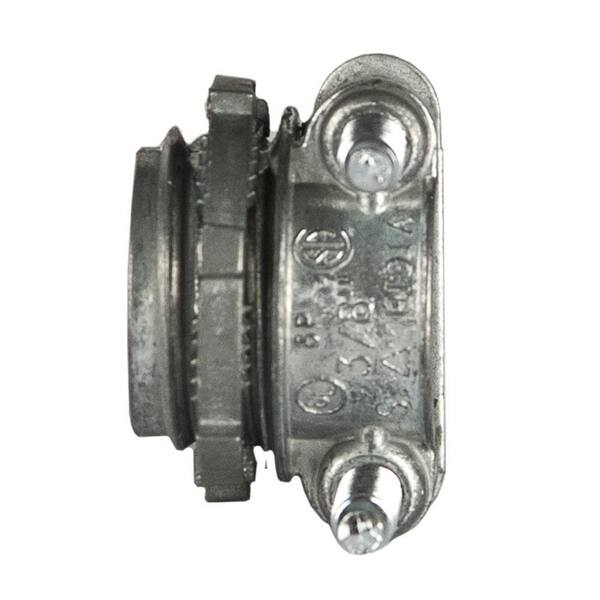

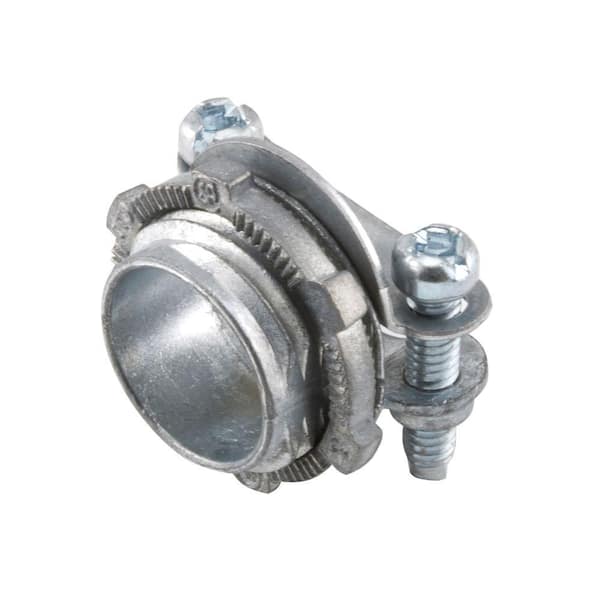

Raco Non-Metallic 1/2 in. Sheathed Cable Connector (100-Pack)
0050169914939

Raco

Non-Metallic 1/2 in. Sheathed Cable Connector (100-Pack)

  • Used to connect NMSC to a box or enclosure
  • Rugged metallic construction ensures a long life
  • Die-cast zinc is corrosion resistant
$1690 /carton
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

Squeeze type connectors are 1/2 In. trade size. Squeeze connectors are for use in dry locations to connect nonmetallic sheathed cable (NMSC) to a box or enclosure. The connectors are uninsulated.

  • Rugged metallic construction will last the lifetime of the installation
  • Diecast zinc fitting that provides corrosion-resistance
  • For use with NMSC sizes (2) #14 - (2) #10, (3) #14, or (3) #12 with or without ground
  • Locknut included

Compare Similar

Price
$16.90 /carton
$21.74 /package
$28.12 /package
$35.50 /package
Name Non-Metallic 1/2 in. Sheathed Cable Connector (100-Pack) 1/2 in. EMT Un-Insulated Die-Cast Zinc Compression Connector (50-Pack) Flex 1/2 in. Screw-in Connector (50-Pack) EMT 1/2 in. Insulated Compression Connector (50-Pack)
Brand Raco RACO RACO RACO
Ratings (0) (0) (0) (0)
Application type Non-metallic EMT Flex EMT
Fitting type Connector Connector Connector Connector
Trade Size (in.) 1/2 1/2 1/2 1/2
Material Zinc Zinc Zinc Zinc
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
0.81
Product Height (in.)
0.875
Product Width (in.)
1.17
Trade Size (in.)
1/2

Details

Application type
Non-metallic
Compatible conduit type
RNC
Electrical Product Type
Standard Fitting
Fitting type
Connector
Material
Zinc
Package Quantity
100
Paintable/Stainable
No
Product Weight (lb.)
0.124lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
1 Year

More Products With These Features

Search

Customer Questions & Answers

can use from inside tge junction box in old construction?

Asked by: Jim
Thank you for your inquiry regarding RACO sheathed cable connectors. Generally, exposed threads are not allowed inside of the box. We recommend using our “Insider” product #4714 for your installation instead.
Answered by: Hubbell Product Expert
Date published: 2017-05-24

How do these compare to the butterfly style connectors?

How do these compare to the butterfly style connectors?
Asked by: wldktz
Thank you for your inquiry about RACO cable connectors.These connectors have the threaded end with the lock nut which is more secure and can also be used on threaded fittings and boxes, where the butterfly connector cannot. Our connector does not need to be disassembled in order to enter the enclosure. And our connector can be used on sheet metal, thicker metals, or threaded hubs and entries, where the butterfly connector is designed for use on sheet metal. Mostly a matter of personal preference and likely based on familiarity.
Answered by: Hubbell Product Expert
Date published: 2017-04-12

will this fit in the knock out of the j box?

Is this going to fit in the knock out of the junction box?
Asked by: Sar
Hello Sar, Yes, the 3/8 In. Clamp Connector is suitable for a ½” junction box KO.
Answered by: Raco
Date published: 2015-12-02
