0851890000737

Reliance Controls

Model 31410CRK

Internet #202214969

Store SKU #298881

30 Amp 10 Circuit Manual Transfer Switch Kit

$376.00 /each
  • Power lights, appliances and devices during a power outage.
  • Kit comes pre-wired and designed for fast installation
  • Works seamlessly with portable generators

Frequently Bought Together

Product Overview

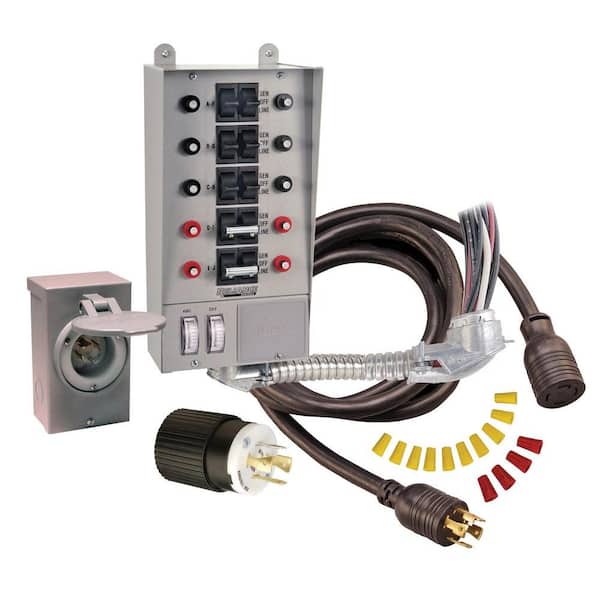

This 10-circuit, 30 Amp manual transfer switch kit includes everything needed to make a professional transfer switch installation (indoors) in a home, office or small business. It is completely pre-wired and designed for fast installation. The transfer switch enables the electrical system of the building to accept the power of a portable generator to run up to ten single-pole circuits or six single-pole circuits and two 20A double pole circuits. It allows you to power electrical appliances, devices and lighting during a power outage. This transfer switch is completely code compliant and keeps the generator power isolated from the utility power at all times.

  • 30 Amp inlet box installs outdoors
  • 10 foot 30 Amp cord goes from the generator to the inlet box
  • Extra 20 Amp cord plug included for use with smaller generators
  • Wire connectors and instructional DVD included

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

38 Questions172 Answers

Customer Questions & Answers

30 Amp 10 Circuit Manual Transfer Switch Kit
30 Amp 10 Circuit Manual Transfer Switch Kit

Ask your questions. Share your answers.



Clear Search Term


Sort By:

10 answers

can this transfer switch handle a generator with 6800 watts and 8000 watts starting power ?

This question is from 30 Amp 10 Circuit Manual Transfer Switch Kit
Asked by
ken
new milford, ct.
July 4, 2012
+2points
2out of 2found this question helpful.
Was this helpful?helpful2unhelpful0

Answers (10)

Asked by
Pawcatuck, CT
Read all my Q&A
June 11, 2013
Answer:
Mine handles a Generac 7500 Watt generator with no problem.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Branchburg, NJ, USA
Read all my Q&A
December 18, 2012
Answer:
Maximum running wattage for this switch is 7,500. Your 8,000 watts starting power is surge power which is the maximum wattage available for short periods of time. Think in terms of starting a motor, it requires more wattage to start but will decline to its normal running wattage.
0points
1out of 2found this answer helpful.
Was this helpful?helpful1unhelpful1

November 3, 2012
Answer:
Yes, this transfer switch will handle up to 7500 running watts. You can ignore the starting watts when choosing the appropriate transfer switch.
+6points
6out of 6found this answer helpful.
Was this helpful?helpful6unhelpful0

Asked by
New York, USA
Read all my Q&A
October 30, 2012
Answer:
Review page 9 of the installation and user manual, the 30 AMP model total running wattage is 7500.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Maryland, USA
Read all my Q&A
August 14, 2012
Answer:
Yes...its rated up to 7,500 watts (running). My generator is 7,000w running, and 12,000 starting....no problems
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Read all my Q&A
August 7, 2012
Answer:
Yes...rated for 9000 watts.
+1point
2out of 3found this answer helpful.
Was this helpful?helpful2unhelpful1

August 1, 2012
Answer:
yes, manual states up to 8000 watts continuous
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Hardy, Blue Ridge, VA 24101, USA
Read all my Q&A
August 1, 2012
Answer:
It is rated to handle 7,800 watts so should handle both easily. I ran a 7500 watt generator with 10,200 surge watts and had no problems with it.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Mike
Ohio, USA
July 31, 2012
Answer:
yes.this is confirmed on Reliance website FAQ's. Also says 8000 watts on the box it comes in.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

July 10, 2012
Answer:
Hello ken and thank you for your question.
This Reliance Controls 30 Amp 10 Circuit Manual Transfer Switch Kit (Model # 31410CRK) has a maximum wattage of 7500 W.
Since your peak wattage is 8000W, consider the Reliance Controls 50 Amp 10 Circuit Transfer Switch (Model # 51410C - Internet # 202216473) which also is an indoor cabinet and has a capacity of 12500 running watts.
Best wishes on your Read More
Hello ken and thank you for your question.
This Reliance Controls 30 Amp 10 Circuit Manual Transfer Switch Kit (Model # 31410CRK) has a maximum wattage of 7500 W.
Since your peak wattage is 8000W, consider the Reliance Controls 50 Amp 10 Circuit Transfer Switch (Model # 51410C - Internet # 202216473) which also is an indoor cabinet and has a capacity of 12500 running watts.
Best wishes on your project. Read Less
-3points
1out of 5found this answer helpful.
Was this helpful?helpful1unhelpful4

9 answers

What Gauge Wire Is Required to Connect The Remote Power Outlet to the Switch

This question is from 30 Amp 10 Circuit Manual Transfer Switch Kit
Asked by
LK Long Island
November 23, 2012
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0

Answers (9)

Asked by
Manchester, NH
Read all my Q&A
Home Improvement Profile: DIYer
November 18, 2013
Answer:
10/3 is the minimum size you should use. 10/3 refers to 3- 10gauge insulated wires and an uninsulated ground for four wires total.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Pawcatuck, CT
Read all my Q&A
June 11, 2013
Answer:
Four conductor 10 guage, or Three conductor 10 guage with a 10 guage ground wire.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Read all my Q&A
February 26, 2013
Answer:
10 Gauge
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Branchburg, NJ, USA
Read all my Q&A
December 18, 2012
Answer:
AWG 10/3 meaning it has a third wire, ground. Check your local electrical code, if this wire is not run inside a wall you may have to use conduit.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

December 17, 2012
Answer:
I used 8 guage
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Northern NJ
Read all my Q&A
December 12, 2012
Answer:
10-3 if less than 100 feet Ask your electrical inspector if it has to be in conduit or not. NJ needed ENT or sch. 40.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
new york
Read all my Q&A
December 10, 2012
Answer:
10 guage 3 wires with a ground wire also called 10/3
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
New Jersey
Read all my Q&A
December 7, 2012
Answer:
You can use 10-3 NM-B cable with ground. This will support 30A service for most reasonable lengths, ( includes the two hot wires, neutral and ground ). Home Depot carries spools of various lengths. Depending on the installation location, you may need to put the cable in PVC pipe for mechanical projection.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

November 24, 2012
Answer:
We recomment 10 guage (#10 AWG) wire for connection of the power inlet box to the transfer switch. In most cases 10-3 building wire (3 wires plus ground) will work great.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

7 answers

Do i need to shut off my main breaker in my service panel?

This question is from 30 Amp 10 Circuit Manual Transfer Switch Kit
Asked by
mike
New York
February 17, 2013
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0

Answers (7)

Asked by
Manchester, NH
Read all my Q&A
Home Improvement Profile: DIYer
November 18, 2013
Answer:
No but it is a good idea, especially if you are a novice.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Ohio
Read all my Q&A
October 15, 2013
Answer:
No...after the transfer switch is installed, you use the switches on the unit to switch from generator to grid power.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Orange, VA
Read all my Q&A
August 26, 2013
Answer:
Yes, during installation.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Pawcatuck, CT
Read all my Q&A
June 11, 2013
Answer:
I didn't. I just made sure each breaker was off when I attached its switch wires.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Alabama
Read all my Q&A
March 28, 2013
Answer:
you should because the center is hot if you don't. It is possible to do the job without doing this, but if you dont know what you are doing then you could get hurt.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Read all my Q&A
February 26, 2013
Answer:
Yes, you have to shut if off if. Otherwise you would increase the risk of electrocuting yourself. There is still some risk with the main breaker shutoff (IE. main feed wire coming in from the street and bar inside the Main Fuse Box.
-2points
0out of 2found this answer helpful.
Was this helpful?helpful0unhelpful2

February 18, 2013
Answer:
No, you do not need to shut off the main breaker in your service panel when you are using your generator with this transfer switch. The transfer switch will keep the utility power and the generator power separated. The nice thing about leaving the main breaker on is that you will know when the utility power is back because the other circuits in your home will turn back on when the power is restored.
+7points
7out of 7found this answer helpful.
Was this helpful?helpful7unhelpful0

7 answers

Could this handle loads for my well pump(two 20 amp switches)and electric hot water heater(has two 25amp switches)?

This question is from 30 Amp 10 Circuit Manual Transfer Switch Kit
Asked by
Sean
December 17, 2012
I see this will handle the 8000w generator but my concern is the hot water heater with it's two 25 amp switches. 50 amps just for the hot water is a lot and it looks like this transfer switch only offers the 2 double 20amp. My well pump will take 40amps and the remaining 40 amps is just not enough for the hot water heater. Should I return this transfer switch and get a larger reliance transfer switch? Do you have 25 amp switches i could swap with the double 20 amps?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (7)

Asked by
Pawcatuck, CT
Read all my Q&A
June 11, 2013
Answer:
You need a larger capacity switch.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Maryland, USA
Read all my Q&A
December 19, 2012
Answer:
The highest amperage this switch can handle is 20amp.....so yes, the well pumps can run, but not the electric heater.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Virginia, USA
Read all my Q&A
December 18, 2012
Answer:
I did not realize that I could not connect my hot water to the switch until it was installed, I do have my well pump connected and works fine. You WILL need to upgrade to have both, huge mistake on my part, if I remember correctly it was only like $50 more to have the dual 30 amp breaker instead of the 2-20 amp breakers
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

December 18, 2012
Answer:
20 amps is the largest household circuit that this transfer can be used with. It cannot be used on your 25 amp water heater circuit. The Reliance Controls model Q310C, internet no. 202216478, would accomodate your water heater. It allows one double pole circuit up to 30 amps.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Northern NJ
Read all my Q&A
December 18, 2012
Answer:
not sure about other reliance products but this one has max 20 amp circuits. Nothing larger. This model has 2- 20 amp double throw circuits. so your double pole 25 amp will not work. HTH.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
new york
Read all my Q&A
December 17, 2012
Answer:
Buy a transfer switch that has interchangable breakers like the model number 301060 gentran 30 amp 7500 watt indoor manual transfer switch. you can take the breakers out and replace with higher amp breakers , as long as your generator can handle the load.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

December 17, 2012
Answer:
From the manual online
Transfer switch circuits with 20 amp breakers (the ones with the red
caps) must be installed on only those branch circuits with 20 amp branch circuit
breakers. Transfer switch circuits with 15 amp breakers can be installed on 15
or 20 amp branch circuits. Do not install any transfer switch circuit on
branch circuits greater than 20 amps.
-2points
0out of 2found this answer helpful.
Was this helpful?helpful0unhelpful2
2 3 »
  • 2016-08-24 T15:49:43.822-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202214969, prod, sort_default
2 3 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 104ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.0 out of 5 by 1 reviewer.
Rated 4.0 out of 5.0 by Not everything you need in the box I spent an afternoon installing this unit. NOT included are the materials for wiring the input plug to the transfer switch. Also, there is no plug included for the space on the switch box for direct plug-in to the generator. So you have to decide where to locate the power-in plug box, and get the wires and conduit to go between the plug and the transfer switch. (10 gauge building wire minimum) This was not evident from reading the spec's and description on the Home Depot website. Unit appears to be of better quality than the crummy Generac unit I replaced (fried switch on one circuit). February 5, 2016
