Model # 22222-0000LF

Internet #202270642

Store SKU #282971

Store SO SKU #1000316494

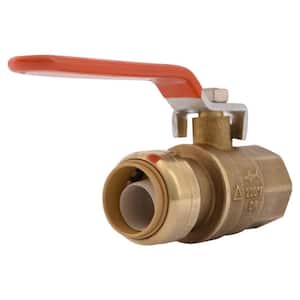

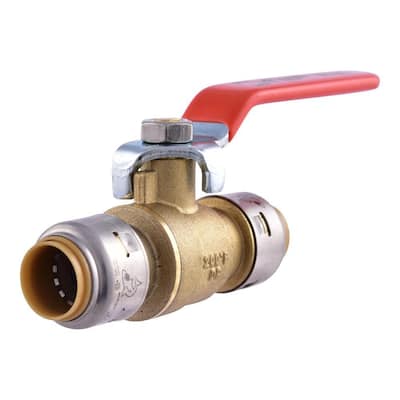

SharkBite 1/2 in. Brass Push-to-Connect Ball Valve
0697285956513

SharkBite

1/2 in. Brass Push-to-Connect Ball Valve

  • Easiest way to install a new or replacement shut-off ball valve.
  • Connect copper, PEX or CPVC pipes in any combination.
  • Push-it connections need no solder, glue, unions, or tools.
$1574 /each

Choose Your Options

Inlet Diameter (in.)
.5
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Easiest way to install a new or replacement shut-off ball valve.
  • Connect copper, PEX or CPVC pipes in any combination.
  • Push-it connections need no solder, glue, unions, or tools.
The 1/2 in. SharkBite Push-to-Connect Ball Valve is the easiest way to install a new or replacement shut-off ball valve. The single lever control allows for easy operation and the valve is perfect for potable water and hydronic applications where a shut-off is needed. SharkBite fittings allow you to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. Get SharkBite and get a grip on your next plumbing project.
  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC, or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions, or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi

Product Overview

The 1/2 in. SharkBite Push-to-Connect Ball Valve is the easiest way to install a new or replacement shut-off ball valve. The single lever control allows for easy operation and the valve is perfect for potable water and hydronic applications where a shut-off is needed. SharkBite fittings allow you to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. Get SharkBite and get a grip on your next plumbing project.

California residents: see   Proposition 65 information

  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC, or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions, or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$8.21 /each
$15.74 /each
$22.73 /each
Name Lead-Free Brass Compression Union 1/2 in. 1/2 in. Brass Push-to-Connect Ball Valve Twin Ell
Brand Everbilt SharkBite KOHLER
Ratings (0) (60) (0)
Fitting or Connector Type Union Union Union
Fitting 1 size 1/2" 1/2" 1/2" x 1/2"
Connection Comp PTC Male Pipe Thread
Connectivity Push to Connect Push to Connect
Material Brass Brass Brass
View Product View Product View Product

Specifications

Dimensions

Fitting 1 size
1/2"
Fitting 2 size
1/2"
Product Depth (in.)
1.132
Product Height (in.)
2
Product Length (in.)
1.132
Product Width (in.)
5.25

Details

Application
Water Supply
Compatible Pipe Material
Multi-Purpose
Connection
PTC
Connectivity
Push to Connect
Features
Removable
Fitting or Connector Type
Union
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
200.0
Pipe or Fitting Product Type
Valve
Product Weight (lb.)
0.425lb
Push to connect
Yes
Push-to-Fit
Yes
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Specifications

Dimensions

Fitting 1 size
1/2"
Fitting 2 size
1/2"
Product Depth (in.)
1.132
Product Height (in.)
2
Product Length (in.)
1.132
Product Width (in.)
5.25

Details

Application
Water Supply
Compatible Pipe Material
Multi-Purpose
Connection
PTC
Connectivity
Push to Connect
Features
Removable
Fitting or Connector Type
Union
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
200.0
Pipe or Fitting Product Type
Valve
Product Weight (lb.)
0.425lb
Push to connect
Yes
Push-to-Fit
Yes
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

More Products With These Features

Search

Questions & Answers

is this usable as a main cut-off valve for the supply coming into the house from the main water supply?

Asked by: Fuzzy
I see no reason why they can't be used for that connection, but beware they are more easily disassembled without the need for evacuating the water line and applying heat to a solder joint.
Answered by: jayp
Date published: 2016-12-31

Can this be used as a shut off for the hot and cold water lines servicing a shower (copper, replacing shower control)?

Asked by: Kgo81
I would not recommend doing that. This valve is typically used for the shut off to service the shower valves. It's not designed for everyday use. That kind of wear is for shower valves that have typically been lubed with a plumbers Silicone grease and have the tolerances for everyday use.
Answered by: fastniky
Date published: 2017-08-11

Will the 1/2 in valve work on 1/2 in soft copper tubing

Asked by: Theo
YES!
Answered by: Roger
Date published: 2017-03-29

can you adjust water pressure with this like a regular valve or is this only for on or off?

Asked by: curious
As other reviewers indicated, you can restrict water flow which will reduce the intensity by incremental adjustments of the valve; however, this product will not alter the pressure of your water supply.
Answered by: Tim
Date published: 2017-06-01
  • y_2017, m_9, d_20, h_24CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_23
  • loc_, sid_202270642, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 30ms
  • QUESTIONS, PRODUCT

Customer Reviews

1/2 in. Brass Push-to-Connect Ball Valve is rated 4.8 out of 5 by 60.
Rated 5 out of 5 by from It's spring which means I just turned on the water to my exterior faucets.  I have three of them,... It's spring which means I just turned on the water to my exterior faucets.  I have three of them, with different shut-offs located all across the basement.  I'm pretty paranoid about them freezing as a result of my last house.  My last house was an ill-designed townhouse that gave me a lot of experience tackling DIY projects as a result of shoddy construction and an obvious lack of pre-planning.  One of those projects involved an exterior faucet that was routed through the garage.  No matter how I insulated it, come spring when I turned the water back on it would always be a complete mess as invariably the pipe would burst.  After fixing this twice, I decided to install a second shut-off in the house before the pipe left heated space.  That was the last problem I had with that faucet. Fast forward to my new house, while powering up my exterior faucets I found that there is a 1/2 inch line coming off my main that is routed directly to all three of them.  While browsing HD, I came across this product and it seemed like it would be absolutely perfect to use as a centrally located exterior faucet shut-off.  Not only does this eliminate the need for me to turn off all three spigots individually, but it ensures I will never experience a burst pipe from those pesky exterior faucets in my new house. After shutting-off the water and then emptying the lines, I cut the pipe and put this in its place.  It was a breeze, the whole episode took less than five minutes and involved simply removing a small segment of pipe.  Once cut, I put this on until I felt a small click, at which point I turned the water back on and unsurprisingly there were no leaks.  This thing is great, it's convenient, attractive, simple, and most importantly effective.
Date published: 2017-04-17
Rated 5 out of 5 by from I had purchased Sharkbite fittings in the past so this was a no brainer for my current project. ... I had purchased Sharkbite fittings in the past so this was a no brainer for my current project. Great for copper tubing, avoids soldering, better than standard compression fittings. Only improvement would be better instructions. The older packaging showed the length to mark on the tubing prior to insertion, the new packaging only shows a picture using a cutoff gauge I do not have. I pushed the first tubing into the fitting all the way and it would not release with my plastic horseshoe. I had an old package which showed the length to be 1 inch. No problem on the rest of the project, cutting to just slightly under one inch. These are very forgiving, I could not cut the tubing square in a hard to reach location, using a hacksaw, but the fittings still worked fine, no leaks. I did clean off the burrs from the tubing.
Date published: 2017-05-30
Rated 5 out of 5 by from Wow, so easy to install and use! I had a hard to get to area and the CPVC valves I was using wer... Wow, so easy to install and use! I had a hard to get to area and the CPVC valves I was using were hard to shut off. I was afraid to keep using for fear they would break (I had that happen on a main line). These went on fast and easy, no leaks. Yeah, a little more expensive but worth it if you have restricted area to work in.
Date published: 2017-05-02
Rated 5 out of 5 by from QUICK, EASY, JOB DONE !! City is changing all water meters. Because of the 1 foot clearance it was harder to cut out and remove the old shut off tap, but install the ball valve 1 minute !! Always keep a few on hand for the unexpected leak!! [This review was collected as part of a promotion.]
Date published: 2017-07-27
Rated 5 out of 5 by from Works just as advertised, quick fix, dependable repair! Just make sure the fitting is straight wh... Works just as advertised, quick fix, dependable repair! Just make sure the fitting is straight when inserting tubing and not at an angle or crooked!
Date published: 2017-03-29
Rated 5 out of 5 by from Shark bites are all I use, I never solder anymore,... Shark bites are all I use, I never solder anymore, Shark bites and pex are the way to go
Date published: 2017-07-04
Rated 5 out of 5 by from Awsome The convince and not to have to solder overcomes the price. Will keep on using it
Date published: 2017-07-04
Rated 5 out of 5 by from Love Sharkbite! So easy to replace/repair plumbing with these products. Takes only a few minutes!
Date published: 2017-09-12
