Model # SC2642M200FPV

Internet #204780189

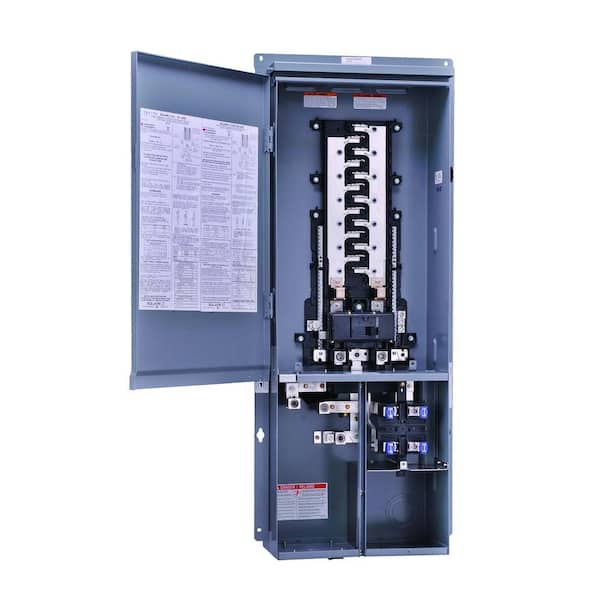

Square D Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center
0785901175537

Discontinued Square D

Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center

Frequently Bought Together

Product Overview

The Square D 200 Amp 26-Space 42-Circuit Outdoor Combination meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ring-type meter cover with a single-phase, 4-jaw meter socket. It is suitable for Overhead (underground with tunnel kit SCTK20) service applications. Meets EUSERC Specifications. Semi-Flush mount. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.

  • Homeline 200 Amp 26-space 42-circuit ring type semi-flush mount main breaker solar-ready CSED
  • Solar-ready for new or future installations with provisions for two field-installed CTs on line bus
  • Suitable for use with utility-interactive inverter
  • Accommodates plug-on secondary surge arrestor and features a plug-in design for easy installation
  • Ring-type design with no bypass
  • Factory-installed 200 A main breaker
  • For use with Homeline breakers only
  • NEMA type 3R enclosure for outdoor use
  • 4-jaw meter socket included in design
  • Order tunnel kit SCTK30 separately for overhead service applications
  • Designed with straight-in mains to save expensive cable and time
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • UL listed and ANSI certified
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

8 Questions8 Answers

Customer Questions & Answers

Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center
Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center

Ask your questions. Share your answers.



Clear Search Term


Sort By:

1 answer

Can I purchase a 125 amp main breaker for this unit?

This question is from Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center
Asked by
Read all my Q&A
December 22, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

December 23, 2015
Answer:
QOM2125VH is 125A 2-pole service disconnect.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

this panel was installed with the intention of using it as a over head feed is there a kit to use the over head feed?

This question is from Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center
Asked by
Read all my Q&A
November 12, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

November 13, 2015
Answer:
Yes: SCTK30 is overhead service tunnel kit.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

1 answer

what is the bus rating on this panel

This question is from Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center
Asked by
Los Angeles
Read all my Q&A
October 22, 2015
The semi flush underground feed panel states (in the Home Depot online description) that it has a 225A buss and comes with a 200A main breaker. I'd like to get the something but with the overhead feeder option. so again what is the bus rating of this panel
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

October 23, 2015
Answer:
SC2642M200FPV has 200A main breaker factory-supplied with 225A bus. Overhead feed service is accomplished with addition of separately ordered tunnel kit SCTK30.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

oversize neutral lugs

This question is from Homeline 200 Amp 26-Space 42-Circuit Solar-Ready Combination Meter Socket and Main Breaker Load Center
Asked by
San Diego
Read all my Q&A
September 22, 2015
where do you get more of the oversize neutral lugs?
I have 6 awg wires and need two more oversize neutral lugs
that clamp into the neutral bus rails.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

September 25, 2015
Answer:
Additional neutrals should not be needed as wire range for standard neutrals provided are #14 to #4. If required, consider LK70AN ('fork' mounted which means that the lug has two prongs that are inserted into two neutral bar holes and are held down by two wire binding screws) or LK100AN ('saddle' mounted which means that the lug mounts on the top of amd sits directly onto the neutral bar). Contact your Read More
Additional neutrals should not be needed as wire range for standard neutrals provided are #14 to #4. If required, consider LK70AN ('fork' mounted which means that the lug has two prongs that are inserted into two neutral bar holes and are held down by two wire binding screws) or LK100AN ('saddle' mounted which means that the lug mounts on the top of amd sits directly onto the neutral bar). Contact your local Home Depot for ordering assistance. Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
