Model # HOM816M200FTRB

Internet #100121508

Store SKU #678000

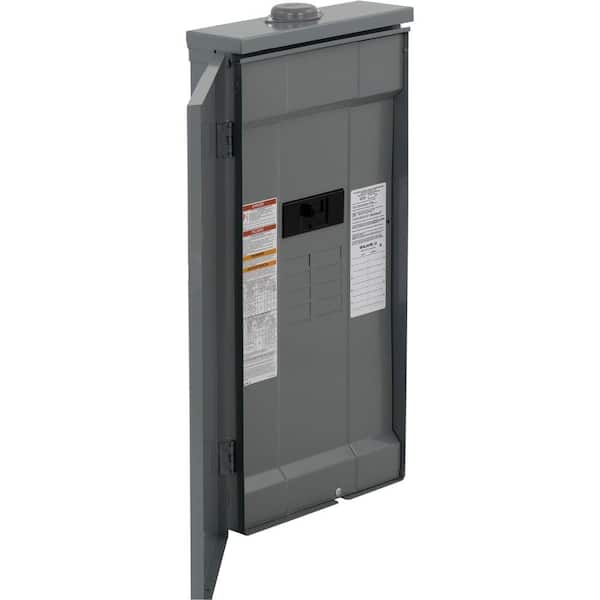

Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lugs
0785901076544

Square D

Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lugs

Product Overview

The Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Convertible Main Breaker Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Convertible Main Breaker Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • Includes feed-thru lugs and a rainproof outdoor cover and is convertible to a main breaker load center with a QOM1 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.

Product Overview

Model #: HOM816M200FTRB
Sku #: 678000
Internet #: 100121508

The Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Convertible Main Breaker Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

  • Includes feed-thru lugs and a rainproof outdoor cover and is convertible to a main breaker load center with a QOM1 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$124.00 /each
$151.00 /each
$219.00 /each
null /null
Name Homeline 150 Amp 8-Space 16-Circuit Outdoor Main Plug-On Neutral Breaker Load Center with Feed-Thru Lug Homeline 125 Amp 24-Space 48-Circuit Outdoor Main Breaker Load Center (Plug-On Neutral Ready) QO 200 Amp Main Breaker 30-Space 30-Circuit Outdoor Plug-On Neutral Load Center Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lugs
Brand Square D Square D Square D Square D
Ratings (1) (1) (2) (4)
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
4.52
Load center height (in.)
29.86
Load center width (in.)
14.75

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
33.32lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Specifications

Dimensions

Load center depth (in.)
4.52
Load center height (in.)
29.86
Load center width (in.)
14.75

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
33.32lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Questions & Answers

What is the difference between this one and HOM816M200PFTRB? The only difference in the numbers is the P in the more expensive one.

Asked by: redtop
The "P" indicates our new Plug-on Neutral design Homeline load centers which use the new Plug-on Neutral Homeline GFI, CAFI and/or dual function branch circuit breakers. Plug-on neutral design of the load centers and breakers speeds wiring, allows for more open gutter space, eliminates 'pigtail' connection to panel neutral bar.
Answered by: SchneiderCustomerCare
Date published: 2015-10-05

does this panel accomidate the use of a interlock switch?

Wondering what interlock switch I need for this panel. I think model # HOMRBGK2C will work but I just want to confirm.
Asked by: djack12
Use HOMRBGK2 if the HOM816M200FTRB is a Series S02 or S03. If the HOM816M200FTRB is a Series S01, use the HOMCGK2 Generator Interlock Kit.
Answered by: SchneiderCustomerCare
Date published: 2015-09-20

does the load center have a main breaker already installed

Asked by: stumpy
Yes it is installed. this was the 2nd one I installed and they are E Z to work with.
Answered by: Dave
Date published: 2015-10-11
  • y_2017, m_10, d_16, h_19CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_100121508, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 96ms
  • QUESTIONS, PRODUCT

Customer Reviews

Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lugs is rated 5.0 out of 5 by 4.
Rated 5 out of 5 by from 200 amp 8 cir outdoor panel for value, and price this panel is great for country use. ive installed many of these homeline panels where general use is applied. heavy and constant use should use the QO products. In my line of work square D is the cats meow!!! Moose
Date published: 2009-09-11
Rated 5 out of 5 by from 2OO AMP FEED THUR NEMA 3R PANEL WITH MAIN BR. THESE PANELS ARE VERY EASY TO INSTALL - YOU CAN FIND BREAKERS AT YOUR LOCAL HARDWARE STORE IF ADDING NEW CIRCUITS. SQ D IS THE NUMBER ONE IN ELECTRICAL EQUIPMENT
Date published: 2014-01-11
Rated 5 out of 5 by from cost saver,ez to install feed thru buss bar save cost on extra breaker, wire & labor
Date published: 2013-12-18
Rated 5 out of 5 by from Excellent product with excellent price. Works great as outside disconnect and makes it easy to feed outside equipment or subfeed to a garage or out building etc.
Date published: 2013-10-23
