Model # QO12040M200RB

Internet #100169456

Store SKU #396657

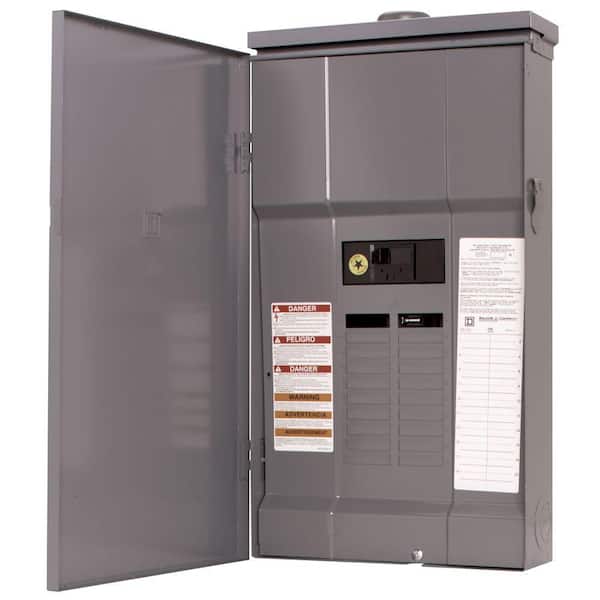

Square D QO 200 Amp 20-Space 40-Circuit Outdoor Main Breaker Load Center
0785901867975

Square D

QO 200 Amp 20-Space 40-Circuit Outdoor Main Breaker Load Center

Frequently Bought Together

Product Overview

When outdoor power distribution is necessary, install the QO 200 Amp 20-Space 40-Circuit Outdoor Main Breaker Load Center. This load center offers a protective rainproof cover to safeguard the internal contents of the NEMA type-3R enclosure from water exposure. This main breaker features a copper bus bar for conductivity and is compatible with overhead or underground service feed connections.

  • Copper bus bar for excellent conductivity
  • NEMA type-3R enclosure with a rainproof cover for safe outdoor installation
  • Overhead/underground feed with a 2-1/2 in. B-hub on top and a 1-1/2 in. knockout on bottom and back
  • Single-phase, 200 Amp , 120/240 VAC, 22,000 maximum short circuit current rating
  • Compatible with QO breakers and QO tandem breakers
  • Accommodates plug-on secondary surge arrestor
  • Meets UL and ANSI safety requirements
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

Could you please tell me the model number of a comparable Qo with feedthrough, 200 amp main, and 20 circuits. I will order it promptly. Thanks.

Asked by: Drew
QO1816M200FTRB is 8-space/16-circuit single phase 200A main breaker load center, with feed thru lugs, and rainproof enclosure.
Answered by: SchneiderCustomerCare
Date published: 2015-09-20

Does this panel have lugs to feed an interior panel from it?

Asked by: Drew
Feed thru lugs, a second set of lugs mounted opposite the mains end, is not an option for and is not included in load center QO12040M200RB.
Answered by: SchneiderCustomerCare
Date published: 2015-09-20

where is this located nearest to me 84119?

just looking to pick this item up somewhere near me
Asked by: nick
Thank you for your recent inquiry with The Home Depot. To determine pricing and availability you will need to localize the item online by using a zip code. Unfortunately, if you are unable to see the store inventory, then it’s most likely not a stocked item in your area. However, you can still order it online to ship to your home or business. For any other questions, please call us at HomeDepot.com Customer Service 800-430-3376. 1. Localize Homedepot.com using your zip code (My Store Location: Change) 2. Choose the store where you want to pick up the item (Make this my Store)
Answered by: THDCustomerSupport
Date published: 2015-09-20
  • y_2017, m_3, d_27, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_100169456, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 36ms
  • QUESTIONS, PRODUCT

Customer Reviews

QO 200 Amp 20-Space 40-Circuit Outdoor Main Breaker Load Center is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Excellant, breakers are tight,door and plate fit well You get what you pay for , this unit is top notch,well constructed ,heavy duty and works well.
Date published: 2013-04-16
