- Designed to protect against overloads and short-circuits
- Quickly identify tripped breakers with our Visi-Trip indicator

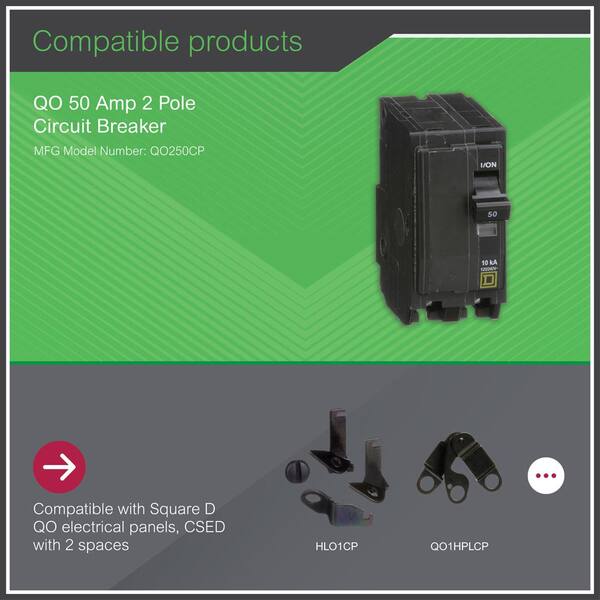

- Compatible with Square D QO electrical panels, CSED with 2 spaces
- View More Details
Product Details
About This Product

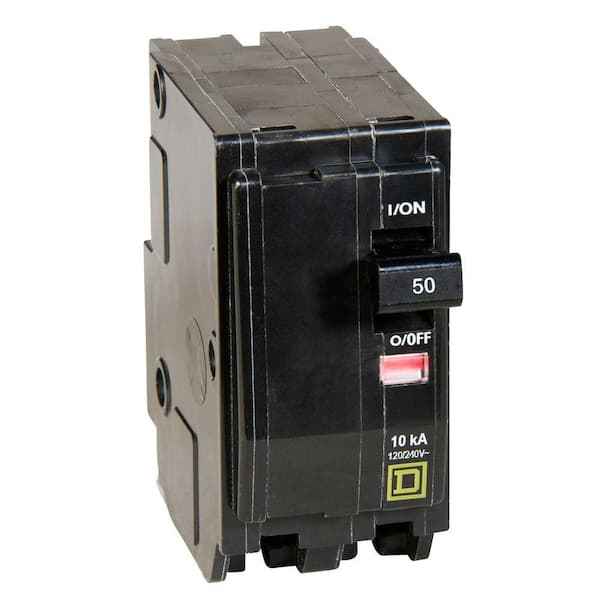

The Square D by Schneider Electric QO 50 Amp Two-Pole Circuit Breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive Visi-Trip indicator. When a QO Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between in OFF and in ON and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
Highlights
- Learn about general NEC 2020 updates. Contact your local building inspector for code adoptions and details.
- Square D QO 50 Amp two-pole circuit breaker
- Plug-on design, easy to install
- Compatible with Square D QO breaker boxes, CSED's and NQOD panel boards
- This breaker needs 2 spaces in a breaker box for installation
- 120/240-Volt AC
- 10,000 AIR
- Limited lifetime warranty
- Learn More About Circuit Breakers Here in our Buying Guide.
- Installation Guide
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Additional Resources
Shop All Square DSpecifications
Dimensions: H 3.1 in, W 1.5 in, D 2.9 in
Dimensions
Product Depth (in.) | 2.9 in | Product Height (in.) | 3.1 in |
|---|---|---|---|
Product Width (in.) | 1.5 in |
Details
AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
Connection Type | Non-Neutral | Electrical Product Type | Breaker |
Included | No Additional Items Included | Interruption Type | Standard Trip |
Maximum Amperage (A) | 50 A | Mounting Type | Plug-On |
Number of Poles | Quad | Number of Spaces | 2 |
Pack Size | 1 | Power Distribution Features | Trip Indicator |
Product Weight (lb.) | 0.61 lb | Returnable | 90-Day |
Series Type | QO | Trip Unit | Thermal Magnetic |
Voltage (V) | 120/240 V |
Warranty / Certifications
Certifications and Listings | UL Listed | Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed. |
|---|
