Watts 1 in. x 3/4 in. Vinyl Braided Tubing-SBVNL10 - The Home Depot


Model # SBVNL10

Internet # 100151485

Store SKU # 302191

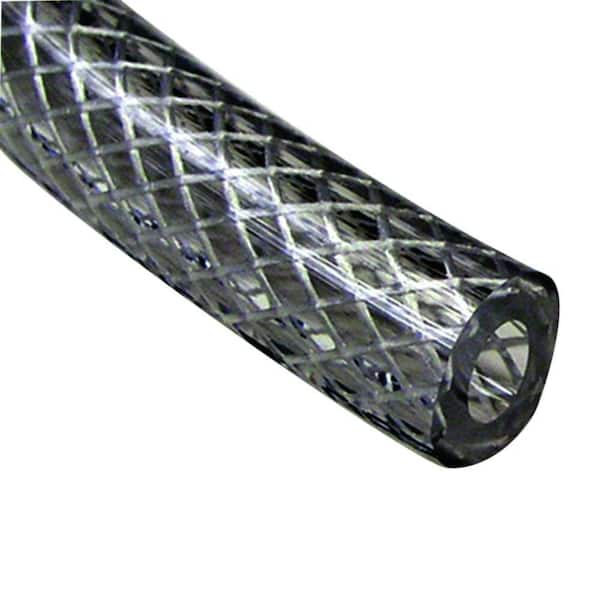

1 in. x 3/4 in. Vinyl Braided Tubing

Watts 1 in. x 3/4 in. Vinyl Braided Tubing

This item has been discontinued.
The Home Depot no longer carries this specific product.
Please select another option below.

$18.54 / each


Model # SBVNL10

Internet # 100151485

Store SKU # 302191

Polyester braided reinforced PVC tubing has the strength to withstand four times the working pressure of single wall PVC. The smooth, dense bore of the tubing maximizes flow rate and reduces sediment buildup. It has excellent resistance to acids, alkalis and many solvents, and handles a wide variety of chemicals, gases and liquids.

  • Has the strength to hold up well even under severe conditions
  • Maximum flow rate and minimal sediment buildup
  • A first-rate choice for hydraulic, pneumatic and vacuum lines
  • Maximum operating temperature is 175 degrees F

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.


Actual inside diameter (in.)  0.75  Actual outside diameter (in.)
Assembled Depth (in.)  2.5 in  Assembled Height (in.)  9.75 in
Assembled Width (in.)  9.75 in  Pipe Size  3/4"
Product Length (ft.)  10 ft
Coiled  Yes  Material  PVC
Maximum Working Temperature (F)  175  Maximum working pressure (psi)  250
Minimum working temperature (F)  33  Pipe & Tubing Product Type  Specialty
Pipe or Fitting Product Type  Pipe & Tubing  Product Weight (lb.)  2.42 lb
Rating  Water  Recommended function  Water Supply
Returnable  90-Day  Wrapped  No
Warranty / Certifications
Certifications and Listings  No Certifications or Listings  Manufacturer Warranty  Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment.


Rated 4.6 out of 5 by 5 reviewers.
Rated 3.0 out of 5.0 by High quality tubing The product was excellent quality, and a steal at the price. June 5, 2012
Rated 5.0 out of 5.0 by Saved me tons of time and money. I used it to repair/replace the cold water copper pipes on my mobile home. The pipes had burst over the winter from freezing. New piping from a professional plumber would have been in the $1800 range. At $12.98 per 10 Ft..... and some stainless steel hose clamps... I Saved A Huge Bundle! Easy to Install? You Bet! Nothing could be easier... just string it along... up, over, around, through... whatever.. my wife and I did the work. Tough Stuff - Easy To Use - Cheap! July 21, 2011
Rated 5.0 out of 5.0 by Good stuff Using it on a boat for galley water suction side of pump as well as hot water. Easy to cut, hard to kink and just great stuff. Holds well on fittings with standard hose clamps up to 65 PSI December 2, 2013
Rated 5.0 out of 5.0 by Best price anywhere! Great product, great price! Lightning fast shipping! April 29, 2014
Rated 5.0 out of 5.0 by Good improper repair Got this to connect a copper hot water line to a steel hot water line in the house. Three plumbers made the repair and they all failed. This can handel the pressure and the heat and the repair looks solid. Will se if it can last more than 6 months. April 2, 2012
