Model # D180004

Internet #202248712

Store SO SKU #1000898302

DEWALT Door Lock Installation Kit
0028877510613

DEWALT

Door Lock Installation Kit

  • Height alignment window for accuracy
  • Two bi-metal hole saws
  • Great for door locks on wood and metal doors
$26.48 /each

Frequently Bought Together

Product Overview

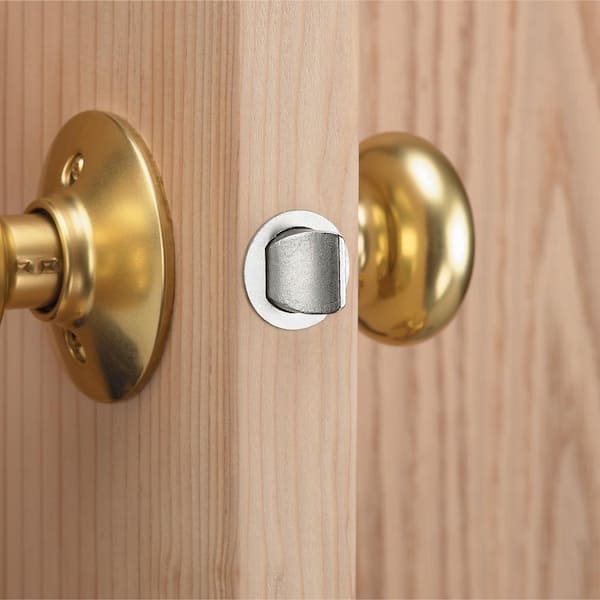

The DEWALT Door Lock Installation Kit helps you install door locks on wood and metal doors. It works for 2-3/8 in. and 2-3/4 in. backsets, and 1-3/8 in. and 1-3/4 in. thick doors. It features two bi-metal hole saws and a height alignment window for accuracy.

  • Use to install door locks on wood and metal doors
  • 2 bi-metal hole saws
  • Height alignment window for accuracy
  • Accepts common backsets of 2-3/8 in. and 2-3/4 in
  • Fits common door thicknesses of 1-3/8 in. and 1-3/4 in.
  • Made in USA

Specifications

Dimensions

Details

More Products With These Features

Search

Customer Questions & Answers

9 Questions17 Answers

Customer Questions & Answers

Door Lock Installation Kit
Door Lock Installation Kit

Ask your questions. Share your answers.



Clear Search Term


Sort By:
This question is from Door Lock Installation Kit

3 answers

Does this kit come with the pilot drill bits as well as the saws to cut the holes? to

This question is from Door Lock Installation Kit
Asked by
Massachusettes
Read all my Q&A
September 29, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Arkansas, USA
Read all my Q&A
Home Improvement Profile: Professional
August 18, 2016
Answer:
yes the pilot bit is included.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Read all my Q&A
May 8, 2016
Answer:
Yes, they have the arbor bit.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Virginia Beach
Read all my Q&A
Home Improvement Profile: Professional
October 18, 2015
Answer:
Rob - great question , I hadn't even thought about that. Looking at the spec sheet it says the arbor is NOT included. That could be an issue if you are not replacing an existing kit with arbor and pilot drill.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
This question is from Door Lock Installation Kit

3 answers

Will this work on a solid masonite door?

This question is from Door Lock Installation Kit
Asked by
Read all my Q&A
September 9, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Sandy Springs, GA
Read all my Q&A
Home Improvement Profile: Professional
May 23, 2016
Answer:
These hole saws easily cut through Masonite. But to clarify an earlier post - "bi-metal" doesn't mean that the hole saw also cuts metal. Bi-metal means that the hole saw ITSELF is made from 2 types of metal. A very hard metal such as high speed steel may be used for the teeth, while the shaft may be made of spring steel so that it will be more flexible while drilling. This means that a bi-metal hole saw Read More
These hole saws easily cut through Masonite. But to clarify an earlier post - "bi-metal" doesn't mean that the hole saw also cuts metal. Bi-metal means that the hole saw ITSELF is made from 2 types of metal. A very hard metal such as high speed steel may be used for the teeth, while the shaft may be made of spring steel so that it will be more flexible while drilling. This means that a bi-metal hole saw (or other blade) performs much better in wood, and can often be used for metal and other materials as well. Read Less
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Asked by
Read all my Q&A
December 28, 2015
Answer:
The DEWALT tool kit is it plastic or metal.
-1point
0out of 1found this answer helpful.
Was this helpful?helpful0unhelpful1

Asked by
Anonymous
Orange, Ca.
Home Improvement Profile: Other
September 10, 2015
Answer:
Hi Sandra, yes this kit will work perfect for a solid Masonite door. This kit comes with bi-metal hole saws, meaning they can cut metal as well as wood.
0points
1out of 2found this answer helpful.
Was this helpful?helpful1unhelpful1
This question is from Door Lock Installation Kit

2 answers

Will this work on a mobile home door?

This question is from Door Lock Installation Kit
Asked by
Florida
Read all my Q&A
July 5, 2016
Shed door is pre-drilled for the plunger of the dead bolt but not the face of the door. Mobile home doors, windows and lock sets are different for mobile homes.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Arkansas, USA
Read all my Q&A
Home Improvement Profile: Professional
August 18, 2016
Answer:
yes it will.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Green Bay, WI, USA
Read all my Q&A
Home Improvement Profile: Professional
July 8, 2016
Answer:
If I understand correctly, the 1" hole is bored into the door's edge for the bolt and you need to bore a 2-1/8" hole through the door for the deadbolt lock assembly. Assuming the backset is 2-3/8" or 2-3/4" the jig will work. Make sure you line up the centers of the of the bolt hole in the door's edge with the hole for the lock assembly.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
This question is from Door Lock Installation Kit

2 answers

Does it work on deadbolt locks

This question is from Door Lock Installation Kit
Asked by
Read all my Q&A
May 2, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

May 3, 2016
Answer:
Yes, this installation kid can be used for deadbolts.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Arkansas, USA
Read all my Q&A
Home Improvement Profile: Professional
May 3, 2016
Answer:
yes it does, check the set back on the dead bolt that you are using should be same a door knob so that they line up.
+4points
4out of 4found this answer helpful.
Was this helpful?helpful4unhelpful0
2 »
  • 2016-10-30 T22:38:07.376-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202248712, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 68ms
  • QUESTIONS, PRODUCT

Customer Reviews

Door Lock Installation Kit is rated 3.7 out of 5 by 62.
Rated 5 out of 5 by from Seriously is s life saver!!! Okay, so I have never ordered doors before. Not knowing that deadbolt/machining is done at the "factory," I learned the hard way. Some doors were already installed (3 metal and some wood) so I had no choice but to do it myself or hire a locksmith. My first attempt was on a steel security door. I read the directions, watched the video, and went for it! It turned out amazing! Then on to solid core doors and another steel door next. My confidence in myself is all because of this product! It takes any guesswork, and if you read-reread the directions to check if you're doing it right, you won't have any big issues. If you get mixed up, just watch the video again!
Date published: 2016-05-24
Rated 4 out of 5 by from I purchased this in store the other day to use on 4 doors I was installing in my home. The tool ... I purchased this in store the other day to use on 4 doors I was installing in my home. The tool works very well and gets the job done but it is not perfect. The Hole saws that come with it are not that great. I mean they will bore the hole in the door. It just take longer. Thankfully I had my Lenox hole saws that I used with this jig and made the job go a lot faster. Also the guides for the bore holes should be metal. Not plastic. When boring the hole the teeth of the hole saw hits those plastic guides and chews them up. Other than that its a great tool, and it performed well for me. Made the job go a lot faster. The clamp holds pretty tight and the little view hole in the front is a very simple but nice touch. The hole guides are adjustable for 2 3/8 and 2 3/4 inset. Id recommend it
Date published: 2016-12-08
Rated 5 out of 5 by from This kit worked just as described. I replaced some old deadbolts that had smaller holes than the ... This kit worked just as described. I replaced some old deadbolts that had smaller holes than the standard for new deadbolts so I had to make bigger holes for them to fit. This was a breeze and I had 3 doors to do. The bit is still sharp. This was a life saver for me. It is very accurate. I strongly recommend this product.
Date published: 2016-11-19
Rated 4 out of 5 by from Better than what I had This DeWalt door lock kit replaced a plastic one I had that snapped in half. It was adjustable for set-back and door thickness and what I really liked was that it wrapped around the door so I could drill from both sides to prevent splitting the luan. With this model I have to drill half way through, reverse the jig then drill from the other side. So far I've been unable to cut a perfectly aligned hole. One side is always slightly off-set from the other. This is not a deal breaker, the lock assemblies fit without a problem, but I've got a minor case of OCD and the hole is not perfect. I'd prefer perfect. Another issue I found, which is a common complaint with this type of arbor, is that the arbor and hole saw tend to seize up after cutting a hole. I've solved this by placing a rubber "O" ring between the two but even a little grease or Vaseline will work. I consider the hole saws to be consumable items. Like all cutting tools they will dull over time and have to be replaced but the jig itself is well made and I expect it to be the last one I'll have to buy.
Date published: 2016-05-22
Rated 1 out of 5 by from Very disappointed. Needed a lot of torque on thumb screw to keep from slipping on metal door ski... Very disappointed. Needed a lot of torque on thumb screw to keep from slipping on metal door skin. The 2 1/8" saw stripped it's threads halfway through a vintage door and jammed. Could not repair without a replacement hole saw and arbor. Returned and purchased a much better and easier to use Milwaulkie product.
Date published: 2016-11-16
Rated 2 out of 5 by from Could be better Instructions were not great. I don't think you could do a great deal of doors with this product, it was showing wear after just one door. The small hole saw was a bit too large. You could see part of the hole when you used the plate.
Date published: 2016-10-18
Rated 5 out of 5 by from The dewalt jig Best product out there very accurate worth the extra cost vs other competitors
Date published: 2016-12-20
Rated 2 out of 5 by from Depends on the door you have. I was attempting to use on a metal cladded entry door. When the hole saw went from the metal to the wood it jarred itself sideways and ruined the threads. I went to Home Depot in Johnson City, NY and they were very nice. They said they don't even stock Dewalt, only Milwaukee, as it is better quality. They gave me the Milwaukee set straight up and that worked with no issue. They said that the Dewalt would probably be fine on wood interior doors. Also, the Milwaukee set came with a spacer, so you can't over drill a side; bonus.
Date published: 2016-05-08
