Model # K-1124-HR-0

Internet #100604951

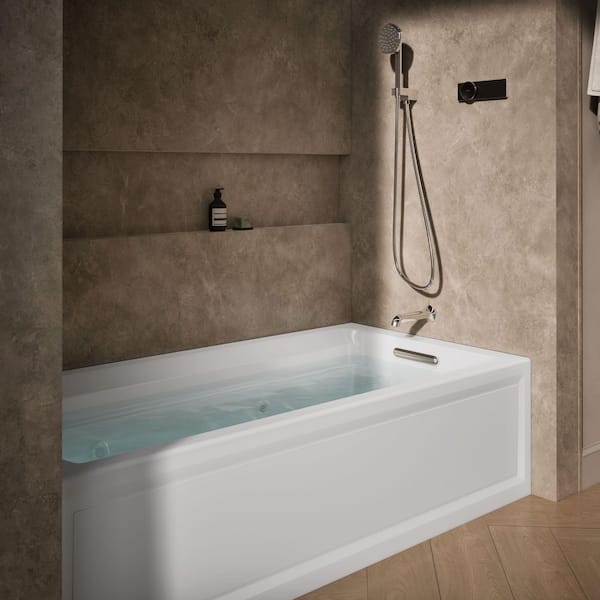

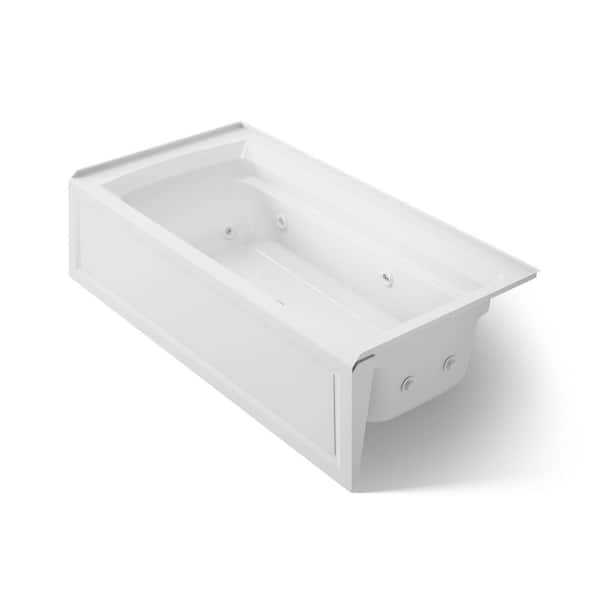

KOHLER Archer 6 ft. Acrylic Right Drain Rectangular Alcove Whirlpool Bathtub in White
0650531521361

KOHLER

Archer 6 ft. Acrylic Right Drain Rectangular Alcove Whirlpool Bathtub in White

$242250 /each

Choose Your Options

White
  • Almond
  • Biscuit
  • Black Black
  • Ice Grey
  • Mexican Sand
  • Sandbar
  • Thunder Grey
  • White
Overall Length (in.)
72
Drain Location
Right
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. Whirlpool jets relax away the day's tension as a built-in heater keeps your water at the perfect temperature.
  • Slotted overflow raises water depth for a deeper soak
  • 8 factory-installed, color-matched plastic KOHLER hydro-massage jets
  • Hydromassage flow and direction can be controlled at each jet
  • Comfort depth design offers a convenient 19 in. step-over height while retaining the same depth as a standard 21 in. bath
  • Generous 6 ft. length provides an incredibly spacious bathing area
  • Recommended drain: K-7272 or K-7271
  • Molded lumbar support offers extra comfort while bathing
  • Tile flange helps prevent water from seeping behind wall and simplifies alcove installation
  • Textured bottom surface

Product Overview

Model #: K-1124-HR-0
Internet #: 100604951

Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. Whirlpool jets relax away the day's tension as a built-in heater keeps your water at the perfect temperature.

  • Slotted overflow raises water depth for a deeper soak
  • 8 factory-installed, color-matched plastic KOHLER hydro-massage jets
  • Hydromassage flow and direction can be controlled at each jet
  • Comfort depth design offers a convenient 19 in. step-over height while retaining the same depth as a standard 21 in. bath
  • Generous 6 ft. length provides an incredibly spacious bathing area
  • Recommended drain: K-7272 or K-7271
  • Molded lumbar support offers extra comfort while bathing
  • Tile flange helps prevent water from seeping behind wall and simplifies alcove installation
  • Textured bottom surface

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Basin Length (in.)
51.375
Basin Width (in.)
21
Overall Height (in.)
19
Overall Length (in.)
72
Overall Width (in.)
36
Soaking Depth (in.)
15

Details

Bath Therapy Type
Jetted-Whirlpool
Color Family
White
Color/Finish
White
Control Type
Electronic
Drain Location
Right
Exterior bath shape
Rectangle
Faucet mount
Wall
Included
Heater
Material
Acrylic
Maximum Number of Occupants
1
Number of Jets
8
Number of jet settings
18
Product Weight (lb.)
115lb
Returnable
90-Day
Tub/Shower Features
Adjustable Jet Direction,Adjustable Jet Flow,Built-In Flange,Slip-Resistant Tub
Voltage (volts)
120
Water capacity (gallons)
72
Wattage (watts)
300

Warranty / Certifications

Certifications and Listings
ADA Compliant,ANSI Certified,CSA Certified,IAPMO Certified
Manufacturer Warranty
One year limited warranty

Specifications

Dimensions

Basin Length (in.)
51.375
Basin Width (in.)
21
Overall Height (in.)
19
Overall Length (in.)
72
Overall Width (in.)
36
Soaking Depth (in.)
15

Details

Bath Therapy Type
Jetted-Whirlpool
Color Family
White
Color/Finish
White
Control Type
Electronic
Drain Location
Right
Exterior bath shape
Rectangle
Faucet mount
Wall
Included
Heater
Material
Acrylic
Maximum Number of Occupants
1
Number of Jets
8
Number of jet settings
18
Product Weight (lb.)
115lb
Returnable
90-Day
Tub/Shower Features
Adjustable Jet Direction,Adjustable Jet Flow,Built-In Flange,Slip-Resistant Tub
Voltage (volts)
120
Water capacity (gallons)
72
Wattage (watts)
300

Warranty / Certifications

Certifications and Listings
ADA Compliant,ANSI Certified,CSA Certified,IAPMO Certified
Manufacturer Warranty
One year limited warranty

Questions & Answers

Can I order it with bronze jets/drain/etc to match everything else in the bathroom?

Can I order it with bronze jets/drain/etc to match everything else in the bathroom?
Asked by: jlneece1
Hi, this is Laura with Kohler Co. I am happy to assist you with your question. The jets are color-matched to the chosen color of the bath; other jets are not available for this bath. The drain is available in 14 color finishes. Thank you for choosing KOHLER.
Answered by: Kohler Product Expert
Date published: 2017-08-28

Does this tub need an access panel or does the skirt come off to access equipment without cutting...

Does this tub need an access panel or does the skirt come off to access equipment without cutting an access panel in the wall?
Asked by: Bobdabuilder
Hi, this is Laura with Kohler Co. I am happy to assist you with your question. The pump may be accessed by removing the apron panel. Please work with your local The Home Depot for pricing and availability on this product. Thank you for choosing KOHLER.
Answered by: Kohler Product Expert
Date published: 2017-05-05
