Model # A99DLK4

Internet #205209873

Store SKU #1000053494

Ryobi Wood/Metal Door Lock Installation Kit
0033287162475

Ryobi

Wood/Metal Door Lock Installation Kit

  • Great for installing deadbolts and locksets
  • Facilitates easy installation
  • Features spade bits with optimized drilling angles
Was  $19.97
$1797 /each

Save $2.00 (10%)

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Great for installing deadbolts and locksets
  • Facilitates easy installation
  • Features spade bits with optimized drilling angles
The Ryobi Wood/Metal Door Lock Installation Kit guides hole saws when installing locksets and deadbolts. This kit features a dual backset adjustment and auto-strike locator for improved accuracy with no additional measurements needed. It also has spade bits with optimized drilling angles for faster holes and longer life.
  • Ideal for installing deadbolts and locksets
  • Easy installation from just 3-steps
  • Dual backset adjustment
  • Auto-strike locator
  • Spade bits with optimized drilling angles
  • Compact 0.68 in. fine edge utility blade

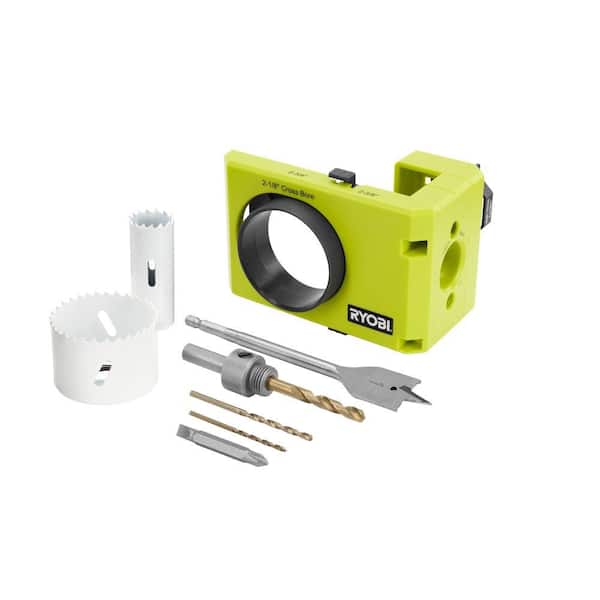

  • Includes: door lock bracket, bi-metal hole saws (1 in. and 2-1/8 in.), arbor with pilot bit, 1 in. wood spade bit, bronze oxide drill bits (3/32 in. and 1/8 in.), 2 in. double-ended screwdriver bit

Product Overview

The Ryobi Wood/Metal Door Lock Installation Kit guides hole saws when installing locksets and deadbolts. This kit features a dual backset adjustment and auto-strike locator for improved accuracy with no additional measurements needed. It also has spade bits with optimized drilling angles for faster holes and longer life.

California residents: see   Proposition 65 information

  • Ideal for installing deadbolts and locksets
  • Easy installation from just 3-steps
  • Dual backset adjustment
  • Auto-strike locator
  • Spade bits with optimized drilling angles
  • Compact 0.68 in. fine edge utility blade
  • Includes: door lock bracket, bi-metal hole saws (1 in. and 2-1/8 in.), arbor with pilot bit, 1 in. wood spade bit, bronze oxide drill bits (3/32 in. and 1/8 in.), 2 in. double-ended screwdriver bit

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
7
Product Height (in.)
8
Product Width (in.)
4.13

Details

Arbor included
Yes
Bit Material
Bi-Metal
Drill Bit Type
Hole Saw
Drill Bit Type(s) Included
Hole Saw,Spade,Twist
Individual/Set
Set
Material Cut
Wood
Min Chuck Size Required
3/8 In.
Number of Pieces
6
Pilot Bit Included
Yes
Returnable
90-Day
Shank Style
3-Flat
Shank Style
3-Flat
Tools Product Type
Power Tool

Specifications

Dimensions

Product Depth (in.)
7
Product Height (in.)
8
Product Width (in.)
4.13

Details

Arbor included
Yes
Bit Material
Bi-Metal
Drill Bit Type
Hole Saw
Drill Bit Type(s) Included
Hole Saw,Spade,Twist
Individual/Set
Set
Material Cut
Wood
Min Chuck Size Required
3/8 In.
Number of Pieces
6
Pilot Bit Included
Yes
Returnable
90-Day
Shank Style
3-Flat
Shank Style
3-Flat
Tools Product Type
Power Tool

More Products With These Features

Search

Questions & Answers

Will a dewalt drill work with this unit?

Asked by: Polo
It can work with any drill that has enough power. I used an 18volt Porter-Cable
Answered by: SimiHomeowner
Date published: 2016-12-21

does this work for deadbolts as well?

Asked by: cortlan
The description says it will drill deadbolts.
Answered by: jj
Date published: 2017-02-28

How do I know where to drill the new hole in the door fram for the new deadbolt?

I installed it on an existing door so there is no hole in the frame for the deadbolt. I do not want to mess it up.
Asked by: chris
Grab an old tube of the wife's lipstick and coat the end of the installed deadbolt lock. Close the door and then extend it like your trying to lock it, till it hits the jamb. Retract the lock, open the door, and you should get a pretty good mark where it strikes.
Answered by: HandyTed
Date published: 2017-08-17

Will the bracket accept a 1.75 thick door? What the thickest can it accept?

Will the bracket accept a 1.75 thick door? What the thickest can it accept?
Asked by: pep3504
can handle 1.25 to 1.75"
Answered by: Rodddy
Date published: 2017-05-09
  • y_2017, m_9, d_20, h_20CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_, sid_205209873, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 99ms
  • QUESTIONS, PRODUCT

Customer Reviews

Wood/Metal Door Lock Installation Kit is rated 3.4 out of 5 by 107.
Rated 5 out of 5 by from Great product - had to create new larger holes partially offset from prior lockset holes in my 1 ... Great product - had to create new larger holes partially offset from prior lockset holes in my 1 3/4" front door. I appreciated the tips about wrapping the larger core drill bit with masking tape to prevent wobble and it did the trick! As an extra precaution i used a clamp on the unit so as not to just rely on the two screws - absolutely no movement there. I had to grind off 3/16" from the far side of the unit to avoid molding on my front door. Some comments about the drill bit not being long enough are probably from people who did not realize you drill in from BOTH sides of the door to avoid splintering. I just flipped the device up said down for the other side of the door. The big bits are a little hard to remove from the threaded shaft but I used oil on the threads before assembly and as the shaft is now six sided and nor round, it easily locks into a vice and I used a cheap strap pipe wrench from HD and the drill bit came unscrewed very easily. Fabulous solution. I'd give it 7 starts
Date published: 2017-05-09
Rated 5 out of 5 by from I have never used a kit like this before. I... I have never used a kit like this before. I have always wondered how carpenters/locksmiths line everything up. I still don’t know how they do it. I know how I do it, with this RYOBI kit! It is fool proof.
Date published: 2017-08-08
Rated 5 out of 5 by from I'm no Ryobi fan, but this worked great! I especially like the "alignment tool" to ensure the lat... I'm no Ryobi fan, but this worked great! I especially like the "alignment tool" to ensure the latch matches up with the strike perfectly. I did not use the screws to hold this on the door, just got it lined up, started drilling until the hole was started and then set the tool off to the side and finished drilling freehand. The only improvement I would like to see is for there to be a way to remove the hole saw bit from the drill bit easier. After drilling it is on tight and the big hole saw doesnt have any notches to use a crescent wrench or pliers on. Other than that this works great. Ignore the negative reviews!
Date published: 2017-09-07
Rated 2 out of 5 by from The Arbor piece is incredibly hard to use switching between the two metal hole saws!! After just ... The Arbor piece is incredibly hard to use switching between the two metal hole saws!! After just one door, the 1in metal hole saw pretty much fused to the arbor bit and refused to come off! I had to go buy another installation kit, so I can then use the other Arbor with the 2 1/8 metal hole saw. Ridiculous! Also, there is no easy way to latch and hold the bracket to the door. You have to screw in the latch plate screws, and then when you're done, you have remove them to use them on the latch plate itself. Poor design and engineering.
Date published: 2017-05-05
Rated 3 out of 5 by from I just purchased it from HD to add a deadbolt to our garage entry door into the house. It works ... I just purchased it from HD to add a deadbolt to our garage entry door into the house. It works pretty well, but it has some drawbacks to note. First, the it tore the veneer on the front of the solid core door. This is likely due to having to press with the drill to get the hole saw through the door. It does it get stuck. Pressing also causing burning/scorching and can generate quite a bit of smoke (if not, fire) so be careful of that. Second, I would recommend using a corded drill or drill hammer. A cordless drill (useless you have a professional grade drill) will not get through. This would also cut down on having to press. Third, I would also recommend screwing the door kit in, using the screw guides on the front. It will hold it firm while drilling. Other than that, it did what it is meant to do.
Date published: 2017-08-03
Rated 1 out of 5 by from Ryobi = Harbor Freight? Product worked fine on the first two pine doors I used in on last year or... Ryobi = Harbor Freight? Product worked fine on the first two pine doors I used in on last year or so, but a third was just too much as the arbor bit snapped in half just as the circular saw began to engage. The ensuing damage really messed up a new door and hours of prep work. So I'll be looking for a quality manufacturer and avoiding Ryobi from here on.
Date published: 2017-09-18
Rated 5 out of 5 by from A must have for installing doors. I picked this gem up along with all the new interior doors for... A must have for installing doors. I picked this gem up along with all the new interior doors for my home at my local Home Depot on 4-23-2017. This kit worked great and consistent. I recommend that with every door you recheck the tools orientation before drilling any holes. The latch hole has to be aligned properly. Overall a great tool that works well.
Date published: 2017-04-24
Rated 5 out of 5 by from This is an excellent kit for door lock installation. Everything I needed was included and it work... This is an excellent kit for door lock installation. Everything I needed was included and it worked great. Nice to have this installation kit as part of my tool collection for future needs as well. Very good price for this complete kit.
Date published: 2017-06-01
