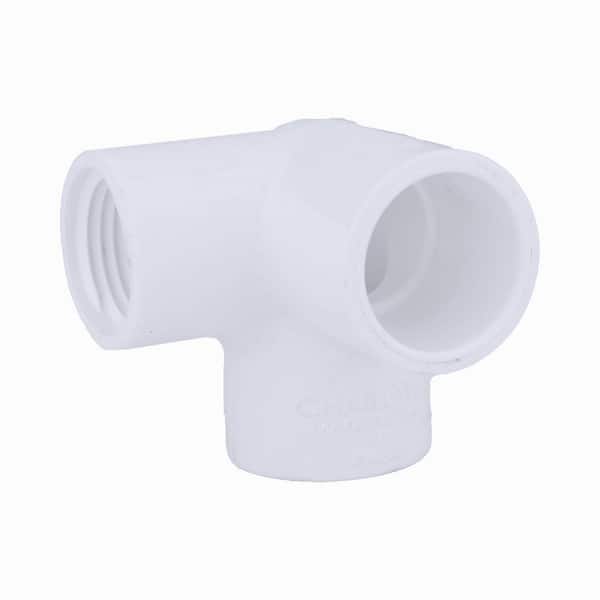

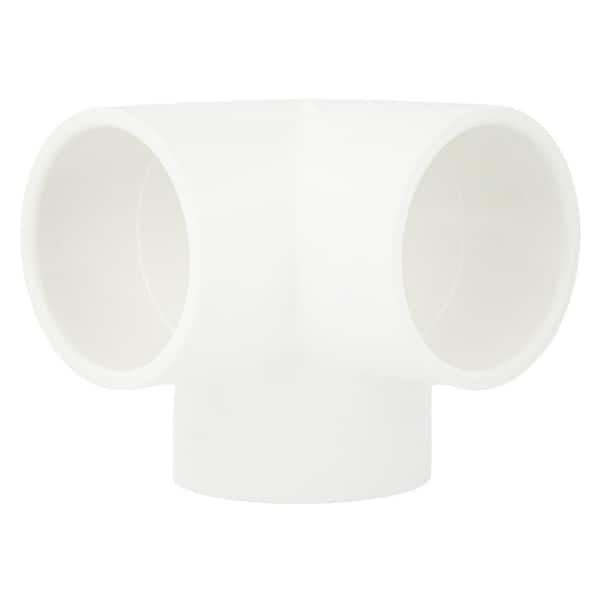

1 in. x 1 in. 90 Degree Socket x Hub PVC Elbow with Side Outlet

$5.22
  • PVC Sch 40 fittings are white and used in pressure applications
  • Sch 40 fittings are installed using primer and solvent cementing
  • PVC Sch 40 fittings are for use where systems won't exceed 140°
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

PVC Schedule 40 fitting that is for pressure systems where temperatures will not exceed 140°F. They are highly resilient, with high-tensile and high-impact strength. PVC Schedule 40 has better sound deadening qualities than PVC Schedule 40 DWV Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement.

Highlights

  • Conforms to meet standards: ASTM D 1784, ASTM D 2466, NSF 14 and 61
  • White pipe and fittings with red print
  • Intended for pressure use
  • For use where systems will not exceed 140° F
  • PVC schedule 40 pipe and pressure fittings are used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
  • Require no special tools for cutting and to be installed with solvent cement
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 309215012

Model # PVC 02510 1000

Store SKU # 1004546620

Specifications

Dimensions: H 2.5 in, W 2.5 in, D 2.5 in

Dimensions

Double Fitting Size

1" x 1"

Fitting 1 size

1"

Fitting 2 size

1"

Fitting Size Dimensions

1" x 1"

Product Depth (in.)

2.5 in

Product Height (in.)

2.5 in

Product Width (in.)

2.5 in

Side Inlet size

1"

Single Fitting Size

1"

Details

Application

Potable Water

Bend Degree

90 Degree

Color Family

White

Color/Finish

White

Compatible Pipe Material

PVC

Connection 1

Socket

Connection 2

Hub

Connectivity

Solvent Cemented

DWV

Pressure

Features

Underground Rated

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

PVC

Material

PVC

Maximum working pressure (psi)

450

Maximum Working Temperature (F)

140

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

.151 lb

Reducing Fitting

No

Returnable

90-Day

Schedule Type

Schedule 40

Side Inlet Connection

Socket

Warranty / Certifications

Manufacturer Warranty

Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery.

Questions & Answers

9Questions
caret
Q:It looks like one end is threaded, and the other two ends are not?
by|Jun 15, 2024
1 Answer
Answer This Question

A:  For a better explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.

by|Jun 17, 2024
    caret
    Q:Is this SxSxS?
    by|Dec 7, 2023
    1 Answer
    Answer This Question

    A:  For an explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.

    by|Dec 7, 2023
      caret
      Q:Will this 1? connection adapter fit into the 1?pcv pipe? Or do I need a bigger connector for a 1? pcv pipe?
      by|Jun 22, 2023
      1 Answer
      Answer This Question

      A:  Yes, the 1 in. PVC Side Outlet 90-Degree Socket Elbow will accept 1 inch PVC pipe. For a more detailed explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.

      by|Jun 23, 2023
        caret
        Q:will this fit any pvc pipe of 1 inch or does it have to be furniture pvc pipes? i was hoping i can use this pipe 1 in. x 10 ft. PVC Schedule 40 Plain-End Pipe Internet #202280936 Model #531194 Store SKU #193755 Store SO SKU #136293
        by|Dec 5, 2020
        1 Answer
        Answer This Question

        A:  Charlotte Pipe products are designed for plumbing applications only.

        by|Feb 21, 2023
