Internet #206184036

Model # LGP1S

Store SO SKU #1001409886

0783643562813

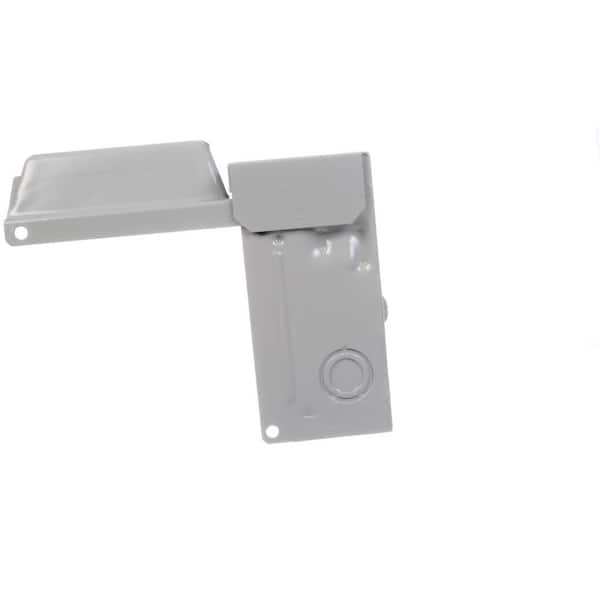

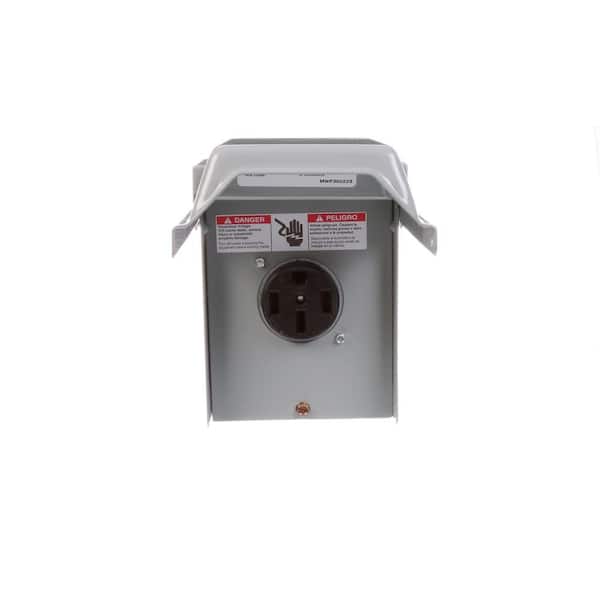

50 Amp Outdoor Enclosed Panel with 14-50R Receptacle

  • Enclosed receptacle
  • Suitable for portable generators or other outdoor applications
  • provide a degree of protection against falling rain and sleet
$ 39 12

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Enclosed receptacle
  • Suitable for portable generators or other outdoor applications
  • provide a degree of protection against falling rain and sleet
Talon branded products set the standard when it comes to enclosed receptacles and temporary power panels. This enclosed receptacle is ideal for use at camp grounds, with portable generators or any other outdoor application requiring a 50 Amp service. Includes a NEMA 14-50R Receptacle.
  • In-use rated and is provided with a 50 Amp 14-50R receptacle intended for use on 125/250-Volt max systems
  • Enclosed receptacle is ideal for use at camp grounds, with portable generators or any other outdoor application requiring a 50 Amp service
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
  • UL listed

Product Overview

  • Enclosed receptacle
  • Suitable for portable generators or other outdoor applications
  • provide a degree of protection against falling rain and sleet
Model #: LGP1S
Internet #: 206184036

Talon branded products set the standard when it comes to enclosed receptacles and temporary power panels. This enclosed receptacle is ideal for use at camp grounds, with portable generators or any other outdoor application requiring a 50 Amp service. Includes a NEMA 14-50R Receptacle.

  • In-use rated and is provided with a 50 Amp 14-50R receptacle intended for use on 125/250-Volt max systems
  • Enclosed receptacle is ideal for use at camp grounds, with portable generators or any other outdoor application requiring a 50 Amp service
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
  • UL listed

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Load center depth (in.)
4
Load center height (in.)
8
Load center width (in.)
6

Details

Electrical Product Type
Load Center
Load Center Type
Temporary Power
Maximum Amperage (amps)
50
Mounting type
Plug In
Number of Circuits
0
Number of Gangs
1
Number of Outlets
1
Number of Phases
1
Number of Spaces
0
Phase Type
1 Phase
Power Distribution Features
No Additional Features
Product Weight (lb.)
4.01lb
Returnable
180-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
1 Year

Specifications

Dimensions

Load center depth (in.)
4
Load center height (in.)
8
Load center width (in.)
6

Details

Electrical Product Type
Load Center
Load Center Type
Temporary Power
Maximum Amperage (amps)
50
Mounting type
Plug In
Number of Circuits
0
Number of Gangs
1
Number of Outlets
1
Number of Phases
1
Number of Spaces
0
Phase Type
1 Phase
Power Distribution Features
No Additional Features
Product Weight (lb.)
4.01lb
Returnable
180-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
1 Year

Questions & Answers

Can the door be closed with things plugged in?

Asked by: MikeO
Yes. If the plug on the end of your cord has a 90 degree design. If your cord has a straight plug then it would not close all the way.
Answered by: db
Date published: 2018-07-24

Can it be wired up with 8 gauge

Asked by: 222
Yes
Answered by: SIEMENS Product Expert
Date published: 2018-07-05

can i bring wires in through the back?

Asked by: joe
Yes
Answered by: Glynn
Date published: 2018-04-15

What are the sizes, locations and type of knockouts?

Asked by: Gary
LGP1S has 1" knockouts on each side,1-1/4" and (2) 3/4" KO's on the bottom and a 1-1/2" hub hole on the top. A copy of the cut sheet showing locations will be posted in the community forum.
Answered by: SIEMENS Product Expert
Date published: 2019-03-25
