2.3-Amp 8 in. 5-Speed Cast Iron Benchtop Drill Press with 1/2 in. Chuck Capacity
- Operates at 740 RPM, 1100 RPM, 1530 RPM, and more speeds
- Includes 1/2 in. keyed chuck, 2.3 amp induction motor, and more
- Easy-to-adjust worktable bevels up to 45° in each direction
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

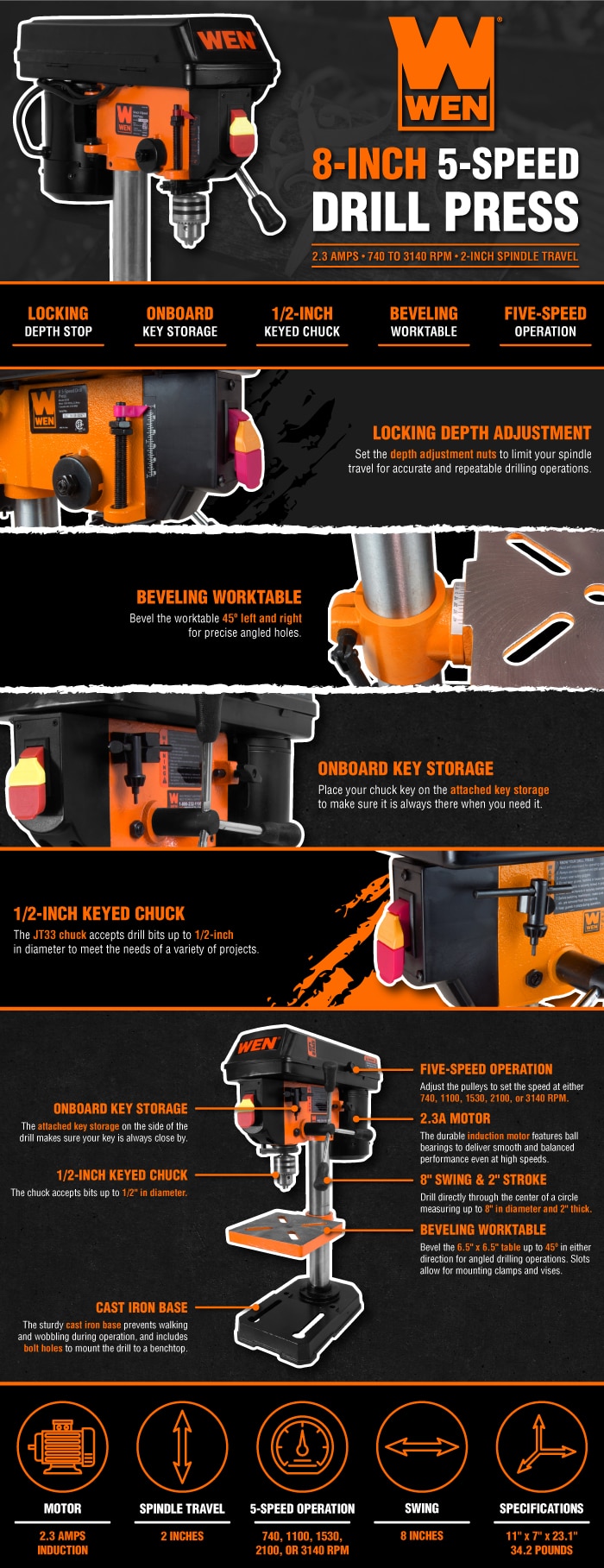

Remember when you could drill with maximum accuracy. Power through metal, wood, plastics, and more with the WEN 8 in. 5-Speed Drill Press. Don't let our compact design fool you. Between the 5 operating speeds, the 2 in. spindle travel, and the sturdy construction, you'll have way more precision than a standard handheld drill. Our 2.3 Amp induction motor features ball bearings for smooth balanced performance even at high speed. Manually set your speed to either 740, 1100, 1530, 2100, or 3140 RPM by adjusting the belt position on the 2 spindles. The easy-to-read, locking depth stop allows for accurate and repeatable drilling operations. The keyed chuck with JT33 spindle taper accepts bits ranging from 1/20 in. to 1/2 in. Dia (1.5 to 13 mm). The table bevels 45° left and right for angled drilling. The base is designed with holes for mounting onto a bench or work stand. Clamps and vises are easily mounted to the slotted table, making work-holding safe and effective. And because its a WEN product, your drill press comes backed by a 2-year warranty, a stocked inventory of replacement parts, and a helpful customer phone line. Remember when you could drill holes in almost anything? Remember WEN.
Highlights
- Features a 2.3 Amp induction motor, an 8 in. swing, and a 2 in. spindle travel
- Includes a 1/2 in. keyed chuck and onboard key storage
- Operates at 5 different speeds: 740 RPM, 1100 RPM, 1530 RPM, 2100 RPM, or 3140 RPM
- 6.5 in x 6.5 in. H adjustable worktable bevels up to 45° in each direction
- Measures in at 23 in. tall with a 7 in. x 11 in. base
- Backed by a 2-year limited warranty
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 22.9 in, W 11 in, D 7.5 in
Dimensions
Chuck Capacity (in.) | 1/2 In. |
|---|---|
Product Depth (in.) | 7.5 in |
Product Height (in.) | 22.9 in |
Product Width (in.) | 11 in |
Details
Amperage (A) | 2.3 |
|---|---|
Bench & Stationary Tool Type | Drill Press |
Color Family | Orange |
Cord Length (ft.) | 6 |
Horsepower (HP) | 0.33 hp |
Included | No Additional Items Included |
Maximum Speed (RPM) | 3140 RPM |
Minimum Speed (rpm) | 620 |
Number of Speeds | 5 |
Portability | Portable |
Power Tool Features | Chuck Key Storage, Lockout Power Switch |
Product Weight (lb.) | 35 lb |
Returnable | 90-Day |
Spindle Travel (in.) | 2 in |
Swing Distance (In.) | 8 in |
Tools Product Type | Other |
Voltage (V) | 120 V |
Warranty / Certifications
Certifications and Listings | ETL Listed |
|---|---|
Manufacturer Warranty | Two-year limited |
Questions & Answers
How much does press weigh
Says right there…d’oh 35lbs.
Can you drive a 30° square hole with this drill press
Is this drill bit suitable for underwater work?
It’s 12volt, come on now, quit it already. You can’t be serious, This country already looks bad enough, try to follow along now, would ya. It’s almost lunch time, hang in there.
I doubt it
How the heck do you get the chuck key into the chuck? It doesn't go in far enough to engage the teeth to tighten the chuck onto the drill bit.
I know you may have figured this out by now, but for anyone else, like me , that writes in before they are finished with the tool, the middle of the key is spring loaded and goes in when pressed.
Drill Press Model # 4208T is this press good enough power for drilling angle metal thickness 1/4? Thank you.
With the right bit n easy pressure and 6 days later n 10gals of oil you’ll be done. It’s far too small to hold up to long term abuse of drilling metal. Gotta reach deeper in those pockets n level up. Wanna play? You gonna pay, those are the rules
This drill press has a 2.3 Amp motor and a maximum speed of 3140 RPM. While it can drill through metal, its suitability for 1/4" thick angle iron depends on the type of steel and the drill bit used. For harder steels or frequent drilling of thick metal, a more powerful drill press might be necessary.
WHAT IS SPINDLE TAPER
The spindle fits a drill chuck with JT33 taper.
it's the chuck
Is this powerful enough to drill hardwood with a large forstner bit or 3 inch hole saw without bogging down?
This drill press has a 2.3 Amp motor and operates at five speeds, ranging from 740 to 3140 RPM. While it can handle hardwood, using large Forstner bits or a 3-inch hole saw might strain the motor, especially at higher speeds. For optimal performance with larger bits, it's recommended to use slower speeds and consider drilling pilot holes to reduce the load on the motor.
You drilling Hickory or Walnut? Both are hardwoods. Itll cut as long as the correct speed n pressure are working cohesively. Force it n well poor performance equals poor results, ci?
What vice should be purchased for this?
Definitely, your work can spin out of control without being fastened down and can cause injury to your hand trying to hold on to your work.
