- 12 in. split coupler snaps into place for a leak resistant joint
- Use with 12 in. corrugated drainage pipes
- Meets ASTM F667 standard
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Advanced Drainage Systems, Inc. (ADS) 12 in. Singlewall Split Coupler is designed to join two 12 in. corrugated singlewall pipe sections together. The split coupler is ideal in applications where lightweight and easy-to-install couplers are needed. Additionally, the split coupler can be used to repair an existing pipe that has been cut. Made of high density polyethylene (HDPE), the split coupler is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.
Highlights
- Made of High-density polyethylene construction that resists corrosion and abrasion
- Strong construction helps withstand weather and human elements
- Snaps over ends of corrugated pipe to make a strong, leak resistant joint
- Withstands weather and does not become brittle over time
- 12 in. corrugated pipe fitting
- Used to connect 12 in. pipe to 12 in. pipe
- Provides extra pull-apart resistance for field repairs and slope drains
- For less critical drainage applications
- Lightweight and easy to install
- Return Policy
Product Information
Specifications
Dimensions
Double Fitting Size | 12" x 12" |
|---|---|
Fitting 1 size | 12" |
Fitting 2 size | 12" |
Fitting Size Dimensions | 12" x 12" |
Product Length (in.) | 8 in |
Single Fitting Size | 12" |
Details
Application | Water Supply |
|---|---|
Color Family | Black |
Compatible Pipe Material | Corrugated |
Connection | OD x Barb |
Connection 1 | OD |
Connection 2 | Barb |
Connectivity | Barb |
Features | Underground Rated |
Fitting or Connector Type | Coupling |
Fitting/ Connector Collection | Sewer & Drain |
Material | HDPE (High Density Polyethylene) |
Maximum working pressure (psi) | 0 |
Maximum Working Temperature (F) | 150 |
Pack Size | 1 |
Pipe or Fitting Product Type | Fittings & Connectors |
Product Weight (lb.) | 1.37 lb |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Warranted to be be free from defects in materials and workmanship in normal use and service. |
|---|
Questions & Answers
is this just a small piece of corrugated pipe with the side cut to fit over the same size pipe? or what is special about it vs me just using a piece cut from the pipe i have already?
Is this coupler easy to remove and reattach, leaving the split at the top of the joined 5" flex pipes? We have one 10' flex pipe ending under deck and need to temporarily attach another 10' pipe just during rain. Twisting on/off too difficult
Description says for single wall pipe, will this work with double wall ADS pipe?
Can the 2 15inch by 15 inch be connected together to make a 15 inch by 30 I ch mi us the over lap?
Yes. Just use a small section of singlewall corrugated pipe on which to snap on the split coupler.
Do you make a 15 inch down to a 10 inch reducer?
This item is not available on HD.com. We suggest you contact your local plumbing supply house.
What good is a 12 or 15 inch coupler if they don?t offer the same size in a drainage pipe 10-20 ft long ?
Lowes only carries the pipes......
Some people might have culvert pipe and need a junction to add another section.
What is the inside diameter when the split is joined together ?
12". The OD is 15.5"
What size band clamp is recommended?
Pipe has a 4.6" OD and the split coupler is larger. Suggest at least a 6" clamp to go around the coupler.
Viewing 1-8 of 22
Customer Reviews
4.6 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |
|---|---|
Ideal for drainage, this 12 in. coupler offers easy installation and a leak-resistant seal. | Ideal for drainage, this coupler offers easy installation and lasting durability. |
Pipe Diameter | |
12 in. | 15 in. |
Material Type | |
HDPE (High Density Polyethylene) | Polyethylene |
UV Resistance | |
Corrosion Resistance | |
Flexible Design | |
Related Products

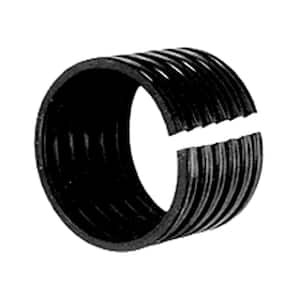

15 in. Singlewall Split Coupler
Advanced Drainage Systems, Inc. (ADS) 15 in. Singlewall Split Coupler is designed to join two 15 in. corrugated singlewall pipe sections together. The split coupler is ideal in applications where lightweight and easy-to-install couplers are needed. Additionally, the split coupler can be used to repair an existing pipe that has been cut. Made of high density polyethylene (HDPE), the split coupler is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

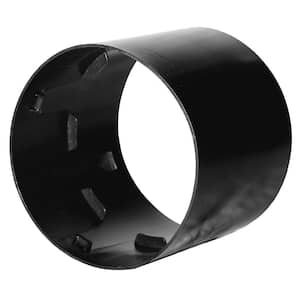

8 in. Singlewall External Snap Coupler
Advanced Drainage Systems, Inc. (ADS) 8 in. Singlewall External Snap Coupler is the contractor's choice for connecting two sections of 8 in. singlewall pipe. The coupler snaps over the ends of each section easily for a secure connection. Made of high density polyethylene (HDPE), the external snap coupler is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

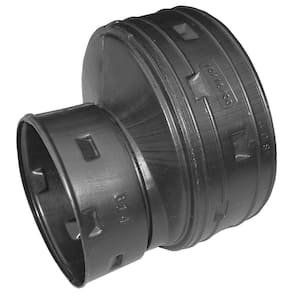

8 in. x 6 in. Singlewall External Reducing Coupler
