#1 Home Improvement Retailer

Internet # 100149124

Model # 0462AA

Store SKU # 504959

$7.03
  • 4 in. pipe adapter snaps into place for a leak resistant joint
  • Fits around 4 in. corrugated pipe and inside 4 in. clay pipe
  • Meets ASTM F667 standard
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

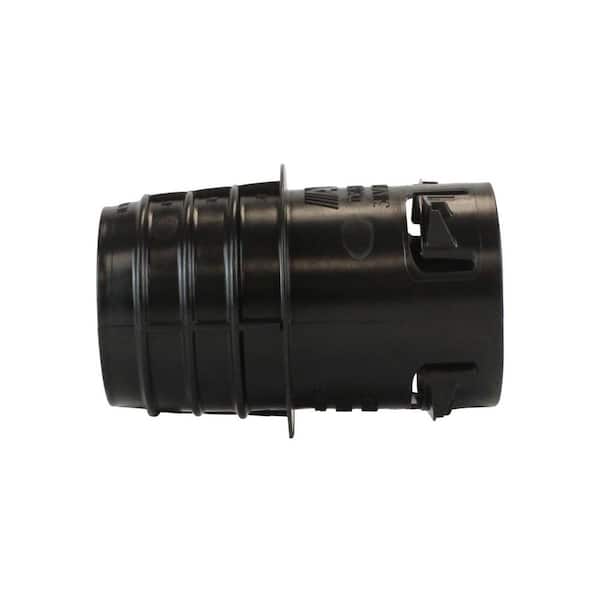

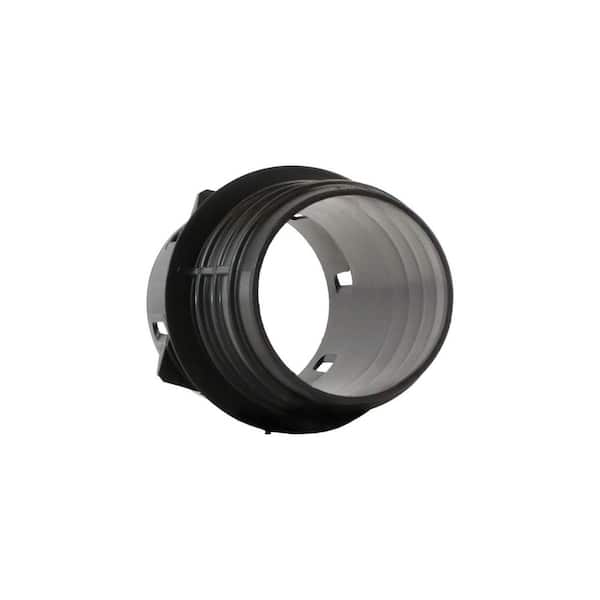

Advanced Drainage Systems, Inc. (ADS) 4 in. Singlewall Adapter allows ADS singlewall corrugated drain pipe to connect to 4 in. clay or ADS triplewall pipe. Made of high density polyethylene (HDPE), the adapter is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

Highlights

  • Made of High-density polyethylene construction that resists corrosion and abrasion
  • Strong, Durable construction helps withstand weather and human elements, and does not become brittle over time
  • Corrugated to clay pipe adapter used to adapt clay fitting hubs for use with corrugated polyethylene pipe
  • Joins 4 in. corrugated HDPE piping to clay piping (not included)
  • Adapter fits around 4 in. corrugated pipe and inside 3 in. clay pipe
  • Lightweight and easy to install
  • Snaps easily to the outside wall of corrugated polyethylene pipe with a 4 in. Dia and to the inside diameter
  • Underground rated
  • One piece molded design deters leaking at the joint
  • Return Policy

Product Information

Internet # 100149124

Model # 0462AA

Store SKU # 504959

Specifications

Dimensions

Double Fitting Size

4" x 4"

Fitting 1 size

4"

Fitting 2 size

4"

Fitting Size Dimensions

4" x 4"

Product Length (in.)

6 in

Single Fitting Size

4"

Details

Application

Water Supply

Color Family

Black

Color/Finish

Black

Compatible Pipe Material

Corrugated

Connection 1

Slip-Joint

Connection 2

Slip-Joint

Connectivity

Push Fit

Features

Underground Rated

Fitting or Connector Type

Adapter

Fitting/ Connector Collection

Drainage

Material

Polyethylene

Maximum working pressure (psi)

0

Maximum Working Temperature (F)

150

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.05 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

Warranted to be be free from defects in materials and workmanship in normal use and service

Questions & Answers

16Questions
caret
Q:Looking to connect 3” perforated PVC pipe (white) to 3” big o drain tile. Will this work ?
by|Jun 6, 2024
1 Answer
Answer This Question

A:  Terry - You'd have to do a test fit, but we doubt it'll work. The fitting is made to affix to black ABS pipe and the PVC may be of a different OD (schedule 40, SDR 35, etc.).

by|Jun 12, 2024
    caret
    Q:What is the OD of the male end of Model # 0362AA adapter
    by|May 14, 2024
    1 Answer
    Answer This Question

    A:  The male end of this fitting is designed to fit inside a 3” clay pipe. Therefore, the fitting OD is just slightly larger than 3”.

    by|Jun 12, 2024
      caret
      Q:Can the female end fit into an ADS 3 triple wall solid drain pipe?
      by|Oct 31, 2023
      1 Answer
      Answer This Question

      A:  No. The female side is specifically for single wall pipe. The male side may be used with triplewall and clay pipe.

      by|Dec 19, 2023
        caret
        Q:Will the small end fit into a standard PVC 90 degree elbow opening, and will a standard hard pvc 4 inch pipe fit into the large opening ?
        by|May 13, 2023
        1 Answer
        Answer This Question

        A:  The small end may fit inside the PVC pipe, but it will not bond using a solvent weld cement as they are dissimilar materials. Securing the connection would be problematic. The large end will not fit with the PVC pipe.

        by|Dec 18, 2023
          Showing 1-4 of 16
