Model #7505B1500U

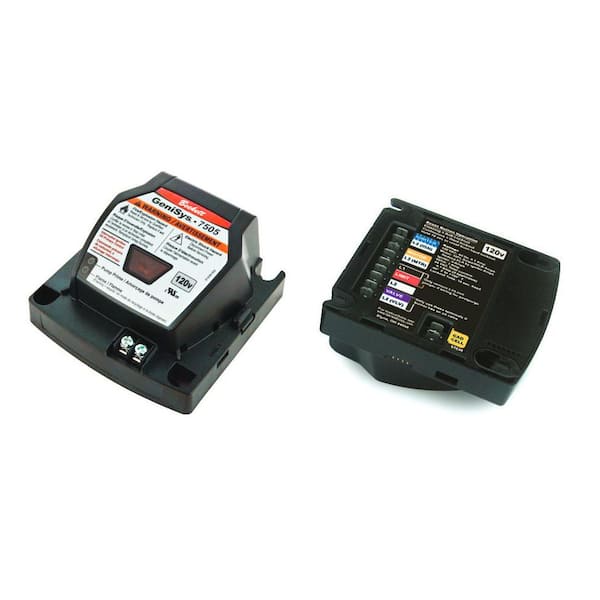

GeniSys Advanced Burner Control

  • Compatible with thermostat and boiler controls
  • 3 status lights aid in system monitoring and diagnostics
  • Provides intermittent duty ignition with a 15-second lockout time
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The Beckett GeniSys Advanced Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat inputs compatible with both on/off and power stealing thermostats. It can provide interrupted or intermittent duty ignition, and has a 15-second lockout time.
  • Thermostat and boiler control compatible
  • Programmable valve-on delay and motor-off delay
  • 3 indicator lights for system monitoring and diagnostics
  • 2 communication ports for adding alarm contacts, programming display, and/or future wireless communications
  • Click here for more information on Electronic Recycling Programs
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
7
Product Height (in.)
3.30
Product Width (in.)
6

Details

Accessory Type
OIL BURNER CONTROL
Product Weight (lb.)
.75
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

6Questions8Answers

Can I replace a 7505b1500 with a 7505p1515

Asked by Bubba February 19, 2021
1
Answer

The answer would depend on the appliance to which this burner is attached. If you look under the header "Info and Guides" on the Home Depot product listing page you will find a PDF of the specification sheet. That same sheet covers both controls. It the differences are not relevant to or aren't used on your devise than yes. However if they are critical than no. Sorry I can't give you a definitive answer. But as I said it depends the logic designed into the devises control strategy.

what does flashing light mean recycle

Asked by sal February 1, 2019
2
Answers

It means your burner control tripped out because there could be a clog or smudge in the line. You could also have a bad ignition. You should hire a professional. Sometimes it need a maintenance cleaning too. Press the button to re ignite the system and hopefully it holds

how long is manufacturer warranty

Asked by jack January 1, 2018
2
Answers

5 years

Is it available in Doha?

Asked by Anoop September 24, 2017
1
Answer

Sorry but the only Doha I am familiar with is the city in Qutar and I do not believe the Home Depot ships there.

How do you adjust the sensitivity of this? Serviceman replaced my old relay type model with this ...

Asked by Montclair August 14, 2017
1
Answer

As a continuation from the last question. There is no sensitivity adjustment on a relay. The switch is either open or closed. If the relay is going into reset mode than the cad cell is most likely not see light. The unit could certainly be bad but If its brand new I would assume its doing its job and you have a combustion issue that a qualified burner tech needs to chase down. It could be a bad cad cell. bad fuel,, bad oil pump or a number of things. The tech needs to isolate the individual components in operation cascade and figure out which one is not performing.

beckett r7184a1075

Asked by nancy October 26, 2015
1
Answer

Yes this can replace several different burner controls however it comes as a basic burner control. you need contractor tool to program. you might be better off contacting your local heating contractor like me @ gmail
