Internet #206518854

Model # CV3-Classic/EA

0670735543211

CV3 Classic Rib 3 ft. Foam Ridge Vent

$ 6 48

Overview

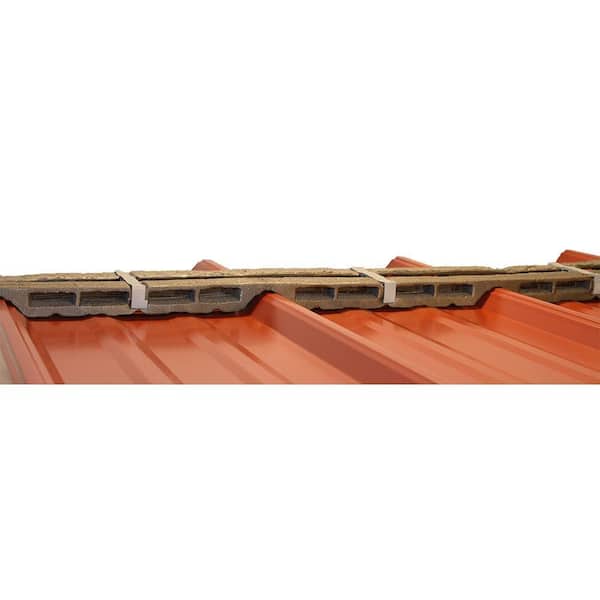

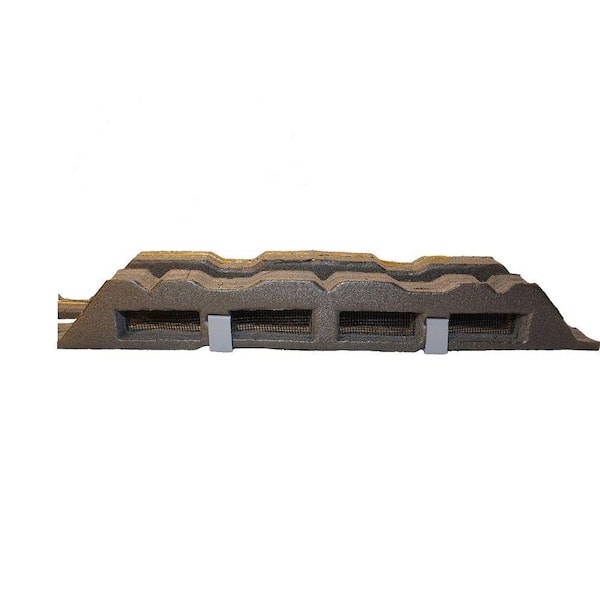

The CV3 ridge vent is a patented two-piece foam closure with screened windows that allows hot air to circulate from the inside of your building out through the ridge cap, keeping your metal building ventilated and free of damaging condensation. The CV3's baffle system offers complete protection from infiltration of blowing rain and snow on lower pitched roofs and the CV3 is also recommended in regions of the country that experience extreme weather conditions. Since even small amounts of condensation can substantially reduce the "R" value of the insulation, creating faster heat loss into the attic space and eventually leading to mold, mildew, rot, ice damming and loss of energy efficiency, it is important to ventilate this area. CV3 is an affordable, easy to install, self-cleaning, totally concealed option to safely vent the hot air from your metal building. It provides a continuous line of ventilation down the entire ridge line. When used in conjunction with intake or soffit vents, air moves outward through the screened closure, allowing fresh air to flow while blocking debris. It is die cut to perfectly fit the Classic Rib panel profile and is a safe and affordable ventilation choice for lower pitched roofs.

Frequently Bought Together

Frequently Bought Together

Product Overview

The CV3 ridge vent is a patented two-piece foam closure with screened windows that allows hot air to circulate from the inside of your building out through the ridge cap, keeping your metal building ventilated and free of damaging condensation. The CV3's baffle system offers complete protection from infiltration of blowing rain and snow on lower pitched roofs and the CV3 is also recommended in regions of the country that experience extreme weather conditions. Since even small amounts of condensation can substantially reduce the "R" value of the insulation, creating faster heat loss into the attic space and eventually leading to mold, mildew, rot, ice damming and loss of energy efficiency, it is important to ventilate this area. CV3 is an affordable, easy to install, self-cleaning, totally concealed option to safely vent the hot air from your metal building. It provides a continuous line of ventilation down the entire ridge line. When used in conjunction with intake or soffit vents, air moves outward through the screened closure, allowing fresh air to flow while blocking debris. It is die cut to perfectly fit the Classic Rib panel profile and is a safe and affordable ventilation choice for lower pitched roofs.
  • Extends the life of your building by eliminating condensation
  • Made with the highest quality foam available
  • Designed for extra protection from blowing snow and rain for a roof pitch of 5/12 or lower but can be used on all roof pitches
  • Installed without cutting or altering the roof structure
  • Made with fiberglass screen, making it a mold and mildew free, permanent solution to your ventilation needs while providing over 7 sq. in. of airflow per linear feet of ridge
  • Naturally increases the energy efficiency of your building by allowing hot air to escape
  • Completely assembled and includes an adhesive for easy installation
  • No maintenance required, CV3's screened windows work the same way the windows on your home work

Product Overview

Model #: CV3-Classic/EA
Internet #: 206518854

The CV3 ridge vent is a patented two-piece foam closure with screened windows that allows hot air to circulate from the inside of your building out through the ridge cap, keeping your metal building ventilated and free of damaging condensation. The CV3's baffle system offers complete protection from infiltration of blowing rain and snow on lower pitched roofs and the CV3 is also recommended in regions of the country that experience extreme weather conditions. Since even small amounts of condensation can substantially reduce the "R" value of the insulation, creating faster heat loss into the attic space and eventually leading to mold, mildew, rot, ice damming and loss of energy efficiency, it is important to ventilate this area. CV3 is an affordable, easy to install, self-cleaning, totally concealed option to safely vent the hot air from your metal building. It provides a continuous line of ventilation down the entire ridge line. When used in conjunction with intake or soffit vents, air moves outward through the screened closure, allowing fresh air to flow while blocking debris. It is die cut to perfectly fit the Classic Rib panel profile and is a safe and affordable ventilation choice for lower pitched roofs.

  • Extends the life of your building by eliminating condensation
  • Made with the highest quality foam available
  • Designed for extra protection from blowing snow and rain for a roof pitch of 5/12 or lower but can be used on all roof pitches
  • Installed without cutting or altering the roof structure
  • Made with fiberglass screen, making it a mold and mildew free, permanent solution to your ventilation needs while providing over 7 sq. in. of airflow per linear feet of ridge
  • Naturally increases the energy efficiency of your building by allowing hot air to escape
  • Completely assembled and includes an adhesive for easy installation
  • No maintenance required, CV3's screened windows work the same way the windows on your home work

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Coverage Area (sq. ft.)
3
Product Length (in.)
36
Product Thickness (in.)
3
Product Width (in.)
36

Details

Color Family
Gray
Color/Finish
Gray
Material
Plastic
Product Weight (lb.)
.17lb
Returnable
180-Day
Roof Panel Type
3' Wide Rib Panel
Roofing Product Type
Polycarbonate Panel

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime Replacement Warranty

Specifications

Dimensions

Coverage Area (sq. ft.)
3
Product Length (in.)
36
Product Thickness (in.)
3
Product Width (in.)
36

Details

Color Family
Gray
Color/Finish
Gray
Material
Plastic
Product Weight (lb.)
.17lb
Returnable
180-Day
Roof Panel Type
3' Wide Rib Panel
Roofing Product Type
Polycarbonate Panel

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime Replacement Warranty

Questions & Answers

What are the dimensions of the rib profile?

Asked by: Auzzilla
This fits the standard roof panel such as the Metal Sales panel #2313241 which is 36” wide, 3/4” tall main ribs every 9”, with two smaller ribs between those.
Answered by: DIY
Date published: 2020-04-16

Does this fit R Panel?

I think its 11 to 11 1/2" center fo center of big rib. If not, do you have a ridge vent that fits a R panel?
Asked by: Doug
No, the R panel has a different profile and this closure vent will not fit it.
Answered by: DIY
Date published: 2020-04-16
