Internet #206177758

Model #MMA-8301R

Store SKU #1001418348

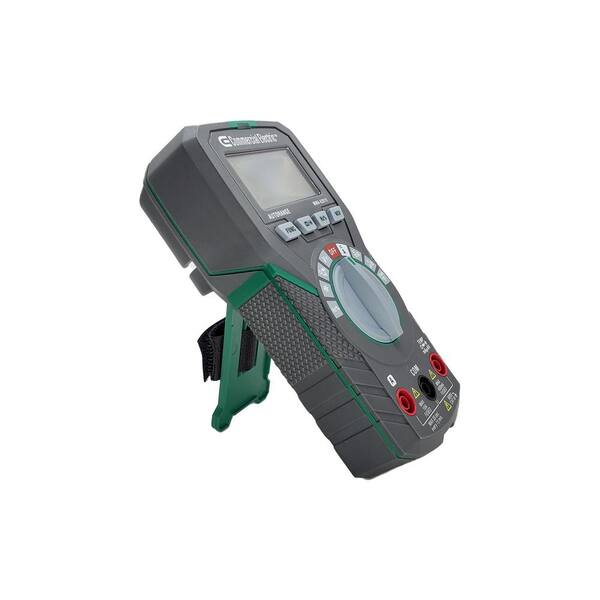

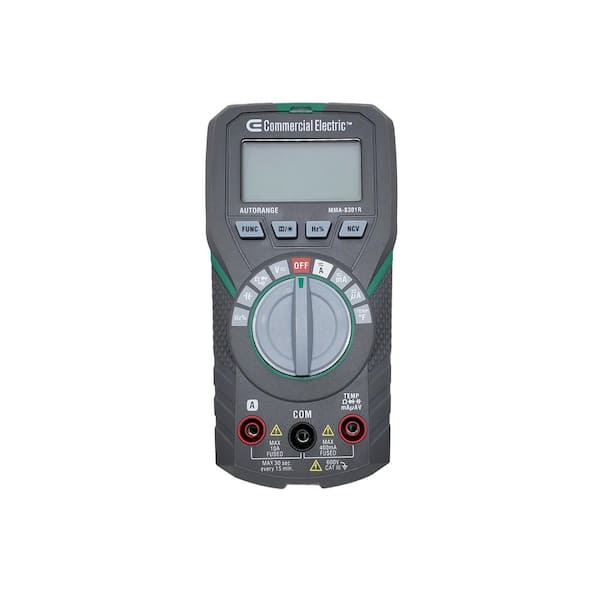

Auto Ranging Multimeter 600V

  • Rubber construction for durability and strength
  • Features backlight, flashlight and AC Voltage detector
  • Ideal for measuring temperatures between (-4 to 1832 degrees F)
  • See More Details

Frequently Bought Together

+
+
Price:
$4497

Product Overview

Commercial Electric
Product Type
Features
Display Type
Dimensions
User Guide
Warranty
Illustrations may vary
The Commercial Electric Auto Ranging Digital Multi-meter MMA-8301R features solid structure and rubber shell. The multi-meter features Auto-ranging 10 Amp AC/DC current, 600V AC/DC Voltage, data hold, back light, flash light. Non-contact detecting and temperature testing.
  • Auto-ranging digital multi-meter could test 600-Volt AC/DC voltage, 10 Amp AC/DC current, Capacitance, temperature, frequency, diode, and 40-resistance
  • Temperature measurement (-4 up to 1832°F) could be tested with this multi-meter and designated test lead
  • Multi-meter features back light, flash light and non-contact AC Voltage detecting
  • Multi-meter includes 2-alkaline AAA batteries and velcro storage strap

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Multimeters

Pocket Size Auto Ranging Multimeter
current product
Auto Ranging Multimeter 600V
600V Auto-Ranging Digital Multimeter400 Amp Digital Clamp Meter, AC Auto-Ranging with Temp
BrandCommercial ElectricCommercial ElectricKlein ToolsKlein Tools
NamePocket Size Auto Ranging MultimeterAuto Ranging Multimeter 600V600V Auto-Ranging Digital Multimeter400 Amp Digital Clamp Meter, AC Auto-Ranging with Temp
Price
$3997
$4497
$4499
$5997
Ratings
(38)
(57)
(231)
(38)
Test Meter TypeClamp/MultimeterClamp/MultimeterClamp/MultimeterClamp/Multimeter
Display TypeDigitalLCDLCDLCD
Electrical Tools FeaturesAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Data Log/Record,Dual Voltage Indication,Handheld,Integral Lead StorageAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Data Log/Record,Dual Voltage Indication,Handheld,Integral Lead Storage,Interchangeable LeadsAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Handheld,Integral Lead Storage,Interchangeable LeadsAuto Ranging,Backlit,Battery Powered,Built-in Clamp,Data Hold,Handheld,Interchangeable Leads,Tests Continuity,Tests Resistance
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
2.91
Product Height (in.)
5.91
Product Width (in.)
1.85

Details

Battery Power Type
Alkaline
Battery Size
AAA
Category Rating
III
Control Type
Digital
Display Type
LCD
Electrical Tools Features
Audible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Data Log/Record,Dual Voltage Indication,Handheld,Integral Lead Storage,Interchangeable Leads
Measures/Detects
Voltage
Number of Batteries Required
2
Number of Functions
8
Number of Ranges
38
Product Weight (lb.)
0.509
Returnable
180-Day
Test Meter Type
Clamp/Multimeter
Tools Product Type
Test Meter
Type
Multimeter
Voltage (volts)
600

Warranty / Certifications

Manufacturer Warranty
WARRANTY: 12 Months For one year from the date of purchase, this product is warranted against any defects in material or workmanship. This warranty is void if this product is ever used while providing commercial services or if rented to another person. Contact the Customer Service Team at 1-877-527-0313 or visit www.homedepot.com.

Questions & Answers

26Questions17Answers

Will this Multimeter measure pico farad capacitance ?

Asked by Frank February 23, 2021
1
Answer

According to Commercial Electric MMA-8301R Auto Ranging Multimeter 600V's manual page 10, capacitance specifications - the smallest measuring range 0.1 nano (n) Farad. Therefore, this multimeter can't measure pico (p) Farad.

multimeter

Asked by lyn January 28, 2021
1
Answer

Yes, Commercial Electric MMA-8301R Auto Ranging Multimeter 600V has audible continuity function.

what does the EF means when testing volts on a 120v household wall outlet (mma-8301R)

Asked by Porter January 6, 2021
1
Answer

Did you choose AC voltage setting when you used Commercial Electric MMA-8301R to measure a 120V household wall outlet?

When set to measure resistance the meter displays 32:44 Mohms. Touch the leads together it reads ...

Asked by BH May 12, 2020
2
Answers

I would call company think its broke sorry

Is there a hanging magnet accessory for this meter?

Asked by Chris March 7, 2020
1
Answer

No, Commercial Electric MMA8301R doesn't come with a hanging magnet kit for sale at this moment. You can get an universal magnet hanger kit to use on MMA8301R.

Does this really only test amps up to 10 amps?

Asked by Rich May 25, 2019
3
Answers

I haven't checked this out. Whenever I am checking amps above 5 amps, I use mu amp p[robe.

When I short out the probes (using resistance setting), the number jumps all over the place. Wh...

Asked by Burt April 15, 2019
2
Answers

Check , clean and reseat the test leads. If you have a spare set of test leads, try those. And the other possibility is that the batteries are dying, dead, toast. Auto-ranging meters tend to be quite sensitive to low supply voltage.

Can you test batteries (such as AA, AAA, 9-volts, etc)?

Asked by Burt April 12, 2019
2
Answers

Yes, it will work on both AC and DC.

Is there anyway to adjust the volume to hear the beeping tone it has? When checking a circuit to ...

Asked by Darsbe5 February 4, 2019
2
Answers

No, it can't. But you see a red flash light above the LCD display screen when a wire or a circuit has power.

The meter want display 120v , why?

Asked by LTW December 31, 2018
2
Answers

It is auto-ranging, thus it will measure what ever voltage is present.

Auto Ranging Multimeter 600V - page 2

Customer Reviews

  • 4.5
    out of 57 reviews
  • 95% recommend this product
5star-icon40
4star-icon8
3star-icon4
2star-icon2
1star-icon3
Filter by:
Showing 1-10 of 57 reviews
everything I've tried on the meter works, but...
The temperature meter is supposed to go up to about 1800F. I stuck it under the lid of my wife's kiln to see if it was heating correctly. It was set at 1100F. When the meter got to about 1000, the cable insulation caught fire and burned off. The meter might read up to 1800 but it's going to need a different kind of wire insulation to get anywhere near that high.
by DickF
Non contact voltage detector Easy to use Very handy
Non contact voltage detector Easy to use Very handy
by SENEN
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Bad manufacturing batch???
This is a really nice meter except for 1 fatal flaw - the leads do not connect securely. In fact, the COM lead wouldn’t make contact without jiggling the lead. And they’re not slightly loose, but very and is obvious. I figured this was just a one-off so I returned it to Home Depot to exchange. HD had only one on the shelf and it was obviously a return because the plastic pack was cut big time and taped (excessively IMO) back together. Nonetheless, I took it to Customer Service and had them open it because I suspected it was returned for the same reason I was returning. Bingo, this one was exactly like the one I had. Actually, it was worse. There are a lot of very favorable reviews and I can’t imagine one would find this product a quality product, or even minimally acceptable with the lead problem. Therefore, I can only assume this is a bad manufacturing run. But even so, I have to rate based on my personal experience and, based on that, I would not buy this meter.
by Chip1953
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Good quality tool that works properly....
Good quality tool that works properly.
by HomeDepotCustomer
Dose everything I will ever need and more....
Dose everything I will ever need and more.
by Deepseabee
by DrPat
This meter does everything I need it to do. The no contact outlet voltage checker is a plus and m...
This meter does everything I need it to do. The no contact outlet voltage checker is a plus and makes it so easy when checking multiple circuits not needing to break out the leads. Lighted display is a bonus and great for those who have trouble seeing unlit displays. It is not a classic Simpson meter but it does what's needed to be done!
by Voice63
Bank for your Buck
I bought this as an upgrade to an entry-level analog meter. I do hobby, low-voltage Arduino and minor home projects. For the price, it's hard to beat the functionality of this unit. In addition to continuity (audiable), voltage resistance and current, you can measure temperature, diodes and capacitors, plus some other less common things. The touchless voltage detector is a nice touch that I haven't seen much in this price range. Doing mostly low current, I wish it had the option to default to DC, but I may be in the minority there. Auto-ranging and digital readout helpful for newbies. This was a huge help in safely changing a three-way light switch to single-pole, and I could not have confidently diagnose the issues I encountered without it. The next time I upgrade, I'd look for a little sturdier construction (chassis and leads), a lighted display and ability to test transistors. However, it's hard to complain about all the things this can do for a reasonable price. If I need to deal with high voltage, high current or high precision, I'll hire someone. The price, quality and precision are all just right for what I do.
by MightyFineWeenieDog
Showing 1-10 of 57 reviews
